Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester

Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester photo-1
Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester photo-2
Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester photo-3
Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester photo-4
Concrete Pull off Test Carbon Fiber Adhesion Strength Pull off Tester photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Usage and Features

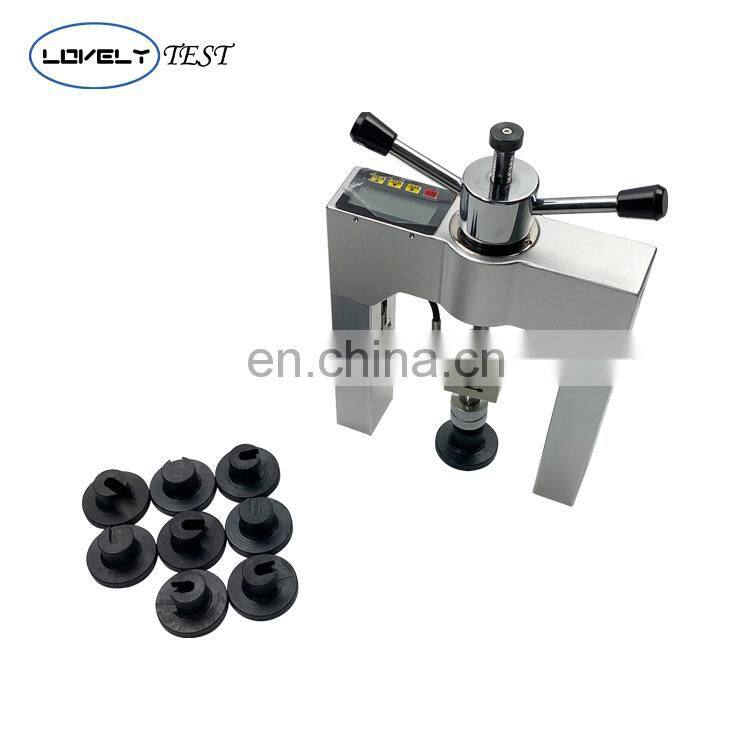

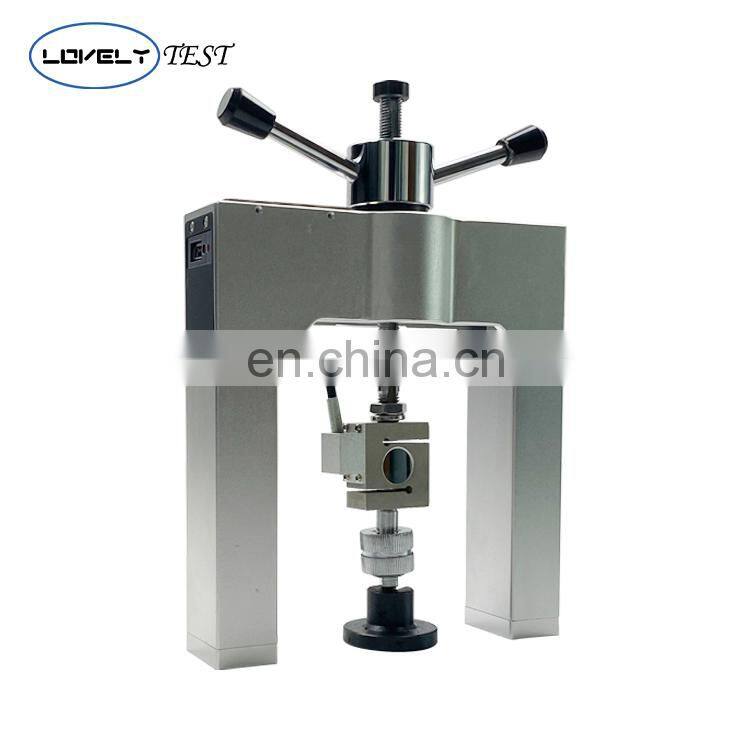

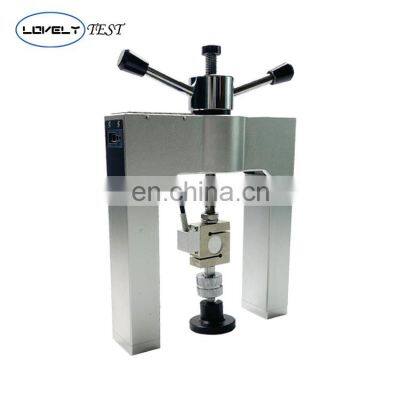

Carbon Fiber Bond Strength Tester

Application:
A new type of instrument suitable for testing the tensile bond strength between carbon fiber sheets and concrete in civil engineering structures. With more bonding strength and failure mode during stretching, the experimental results can be obtained immediately.

Feature:
1. Lightweight alloy body with built-in micro hydraulic system;

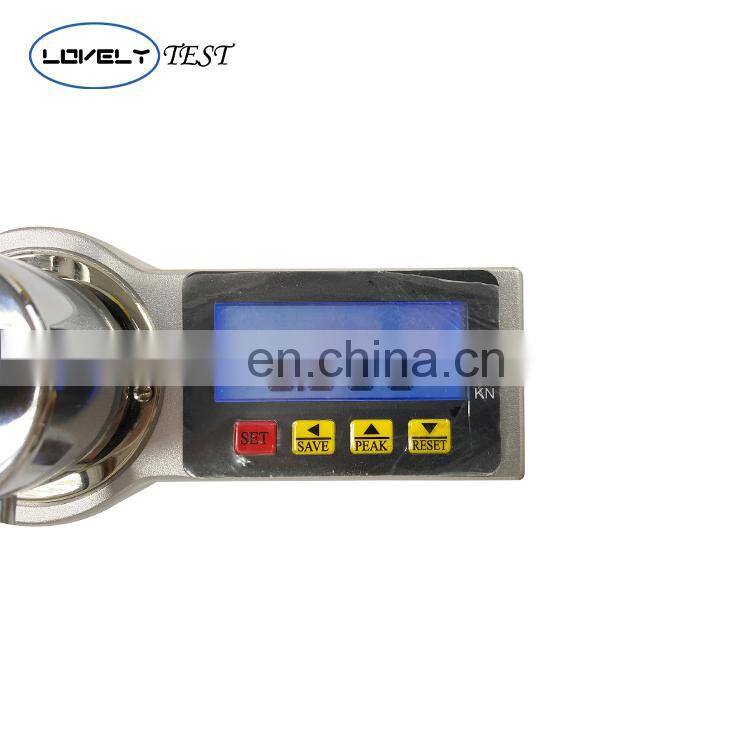

2. Equipped with HC-L3 embedded digital pressure instrument;
3. Chinese setting menu, data can be recorded, inquired and deleted;
4. Correction of 10 broken line values to improve the accuracy of the instrument;
5. Ultra-low power consumption design, 6 hours of automatic shutdown without operation, continuous working time can exceed 200 hours;
6. Two measurement modes for strength and force values.

Technical Parameters
Item
TC-10S Carbon fiber bond strength tester
Instrument structure
Integrated
Display mode
Adjustable force / strength value Mpa
Measuring range
0-10.000kN/5Mpa
Resolution
0.001kN
Accuracy class
0.5% F.S
Peak hold and LCD lighting
yes
Data storage
200
Data correction
10 segment polylines
Power supply
Large capacity lithium battery
Drawing stroke
65mm
Theme material
Light alloy
Theme weight
2.8kg
Detailed Images
Company Introduction
Cangzhou Lovely Technology Co.,Ltd.

Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide. Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc. Any questions, welcome to contact our product specialist online!

After Sales Service
1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement; 2. Get best product with excellent quality and competitive price; 3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service; 4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost; 5. Easily make the payment via West Union, Paypal, Credit Card for small value order;
FAQ
Q1:Are you a factory or trading company? A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement. Q2:Where is the nearest loading port? A:Qingdao port or Tianjin port. Q3:What’s the MOQ of the product? A: One set. Q4:Did your factory pass the ISO 9001? A: YES. Q5:How long is the production cycle after ordering? A:Based on the order. Generally it is about 3-10 days. Q6:What is the payment method? A:T/T payment, West Union, L/C payment ect. Q7: Do you support customizing service? A: Yes, we could customize the out package, machine's color, Logo and Voltage as request. With more than 12 years' production experience. We would give you an excellent experience!
