Portable Falling Lwd Light Weight Deflectometer Civil Engineering Falling Weight Deflectometer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Design Handheld Drop Light Weight LWD Falling Weight Deflectometer Hot SaleNegotiableMOQ: 1 -
High Quality Ultrasonic Pulse Test For Velocity Portable Ultrasound UPV Test On Concrete Cheap PriceNegotiableMOQ: 1
-
Load Cell and Geophones EVD Dynamic Deformation LWD Light Weight Deflectometer for SaleNegotiableMOQ: 1
-
High Quality Dynamic Cone Penetration Dynamic Cone Penetration Test ASTM Hot SaleNegotiableMOQ: 1
-
8kg Hammer Manual Soil Dynamic Cone Penetrometer DCP to Test Penetration Cheap PriceNegotiableMOQ: 1
Portable Falling Lwd Light Weight Deflectometer Civil Engineering falling weight deflectometer
Usage Overview
USAGE OVERVIEW

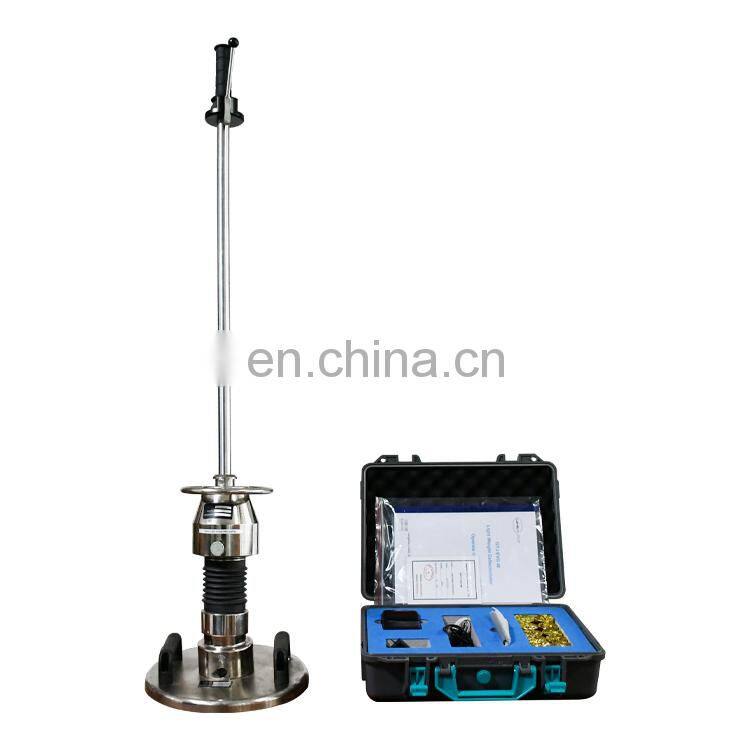

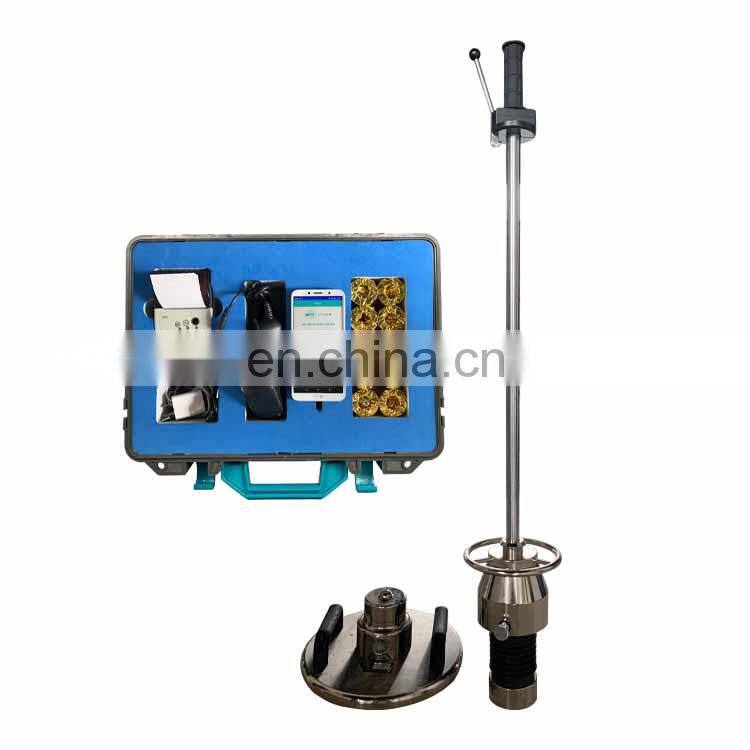

The GTJ-EVD-W type Light weight deflectometer is used to determine the deflection capacity of the subgrade under the dynamic load,
thereby evaluating the bearing capacity and deformation of the subgrade. It is suitable for monitoring and testing the
construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil buildings under dynamic
loads, especially in narrow areas, such as bridge (culvert) transition section and shoulder detection, existing line subgrade,
etc. Compared with the static load test, the instrument can simulate the impact effect of high-speed train on subgrade, which can
better reflect the actual stress of subgrade soil. It can quickly measure the dynamic deformation modulus Evd value.
The GTJ-EVD-W type Light weight deflectometer is used to determine the deflection capacity of the subgrade under the dynamic load,
thereby evaluating the bearing capacity and deformation of the subgrade. It is suitable for monitoring and testing the
construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil buildings under dynamic
loads, especially in narrow areas, such as bridge (culvert) transition section and shoulder detection, existing line subgrade,
etc. Compared with the static load test, the instrument can simulate the impact effect of high-speed train on subgrade, which can
better reflect the actual stress of subgrade soil. It can quickly measure the dynamic deformation modulus Evd value.
Product Description
PRODUCT FEATURES
1.The first APP data processing method in China has realized wireless data acquisition, wireless transmission and voice prompt
function.
2.Provide a cloud transport port dockable engineering detection and management system to provide reliable data sources for
real-time data acquisition, online data analysis, large data management, etc.
3.Imported sensors and some components are used, which has high test accuracy and more reliable test data.

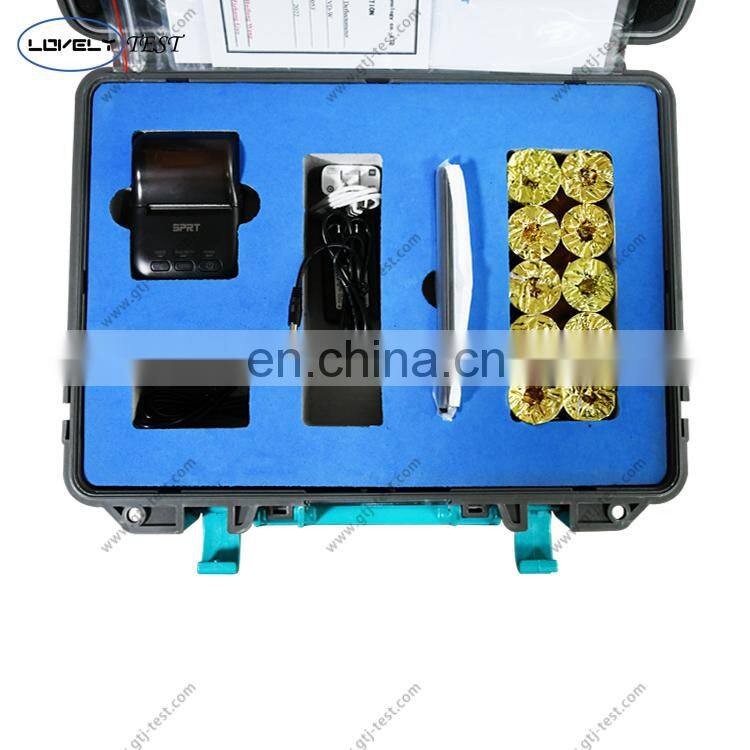

4.The wireless Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
5.It is easy to operate and fast to test. It takes only 35 seconds to detect a point.
6.The Evd value is calculated automatically and the curve is displayed accurately and intuitively.
7.Non-nuclear radiation and exhaust gas pollution, safe operation and environmental protection.
1.The first APP data processing method in China has realized wireless data acquisition, wireless transmission and voice prompt
function.
2.Provide a cloud transport port dockable engineering detection and management system to provide reliable data sources for
real-time data acquisition, online data analysis, large data management, etc.
3.Imported sensors and some components are used, which has high test accuracy and more reliable test data.
4.The wireless Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
5.It is easy to operate and fast to test. It takes only 35 seconds to detect a point.
6.The Evd value is calculated automatically and the curve is displayed accurately and intuitively.
7.Non-nuclear radiation and exhaust gas pollution, safe operation and environmental protection.
Specification
Test coverage |
Product Model |
GTJ-EVD-W |
Application Soil Types |
Soil-rock mixed fillers with particle size less than 1/4of the diameter of loading plate |
|
Test scope |
10Mpa≤Evd≤225Mpa |
|
Test impact depth |
0~500mm |
|
Work environment |
Temperature: -10~40℃ Humidity: ＜90%HR |
|
Work environment |

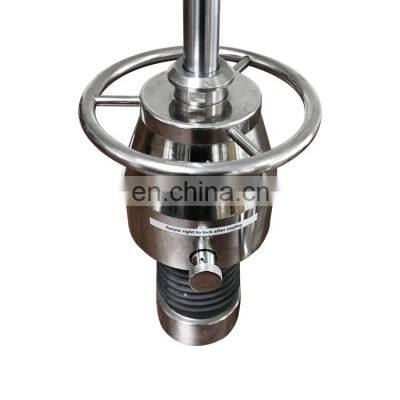

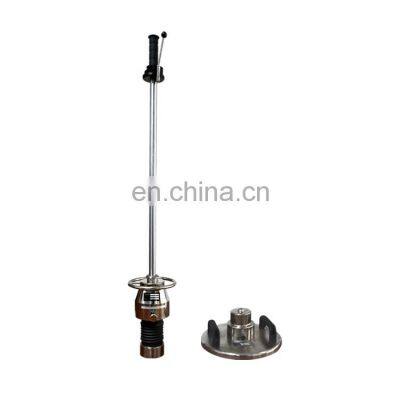

Loading device |
Weight: 15kg drop weight:10kg |
Dropping height of drop hammer: 700±20mm |
||
Maximum impact force: 7.07kN |
||
Shock duration; 18±1ms |
||
Loading plate |
Weight:15kg Diameter: 300mm |
|
Thickness: 20mm |
||
Handheld host |
Specifications |
Screen size: 5 inches |
Subsidence test range |
Volume: 145x70x10mm |
|
Weight: 110g |
||
Storage capacity |
0.10mm~2.00mm |
|
Depending on the memory of the phone, 10G storage capacity |
||
Power supply mode |
Depending on the cell phone battery |
|
Display mode |
Mobile App. English Display |
|
Data transmission mode |
Data wireless transmission, data cloud transmission |
|
Printer |
Connection mode |
Wireless Bluetooth Printing |
Packing specification |
Host box |
Material: Engineering plastics |
Volume: 420x140x335mm |
||
Weight: 4.5kg |
||
Outer packing box |
Material: Aluminum alloy |
|
Volume: 1220x395x380mm |
||
Weight: 56kg |
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
