Product Description

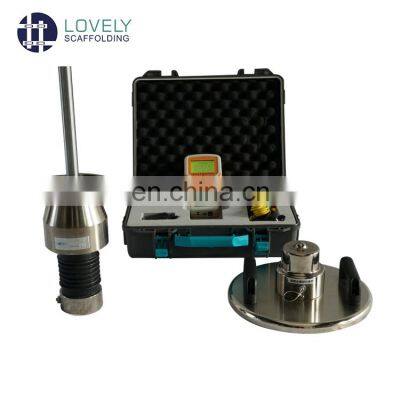

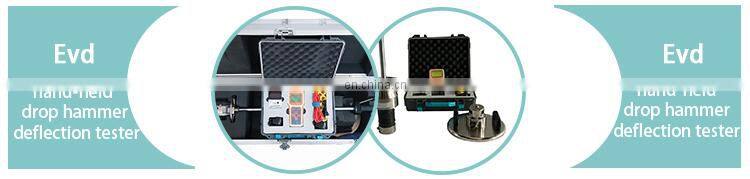

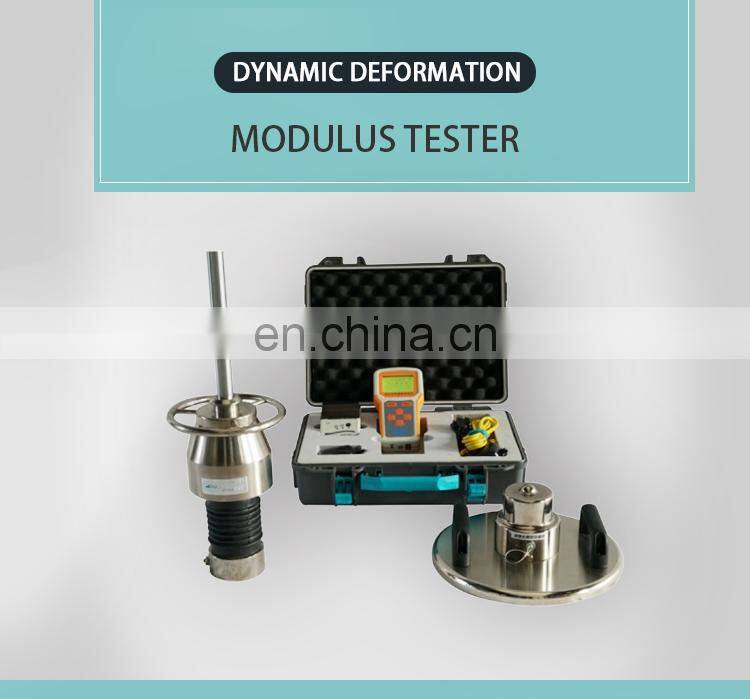

Evd Dynamic Deformation Modulus Tester
Usage Overview
The GTJ-EVD type Light weight deflectometer is used to determine the deflection capacity of the subgrade under the dynamic load, thereby evaluating the bearing capacity and deformation of the subgrade. It is suitable for monitoring and testing the construction quality of railway, highway, airport, urban traffic, port, wharf and industrial and civil buildings under dynamic loads, especially in narrow areas, such as bridge transition section and shoulder detection, existing line subgrade, etc. Compared with the static load test, the instrument can simulate the impact effect of high-speed train on subgrade, which can better reflect the actual stress of subgrade soil. It can quickly measure the dynamic deformation modulus Evd value.
Product Description
2.LCD display in English and Chinese, with corresponding hints in Chinese and English under different interfaces, and with backlight, has better visibility in various environment
3.Easy to operate and fast to test it only takes 35 seconds to detect a point.
4.Automatically calculate Evd value and display curve, accurate and intuitive.
5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
6.USB transmission interface, easy to connect with the computer.
7.The instrument simulates the impact effect of high-speed train on subgrade. Compared with static load test, it can better reflect the actual stress of subgrade soil.
5.Hand-held mainframe with Bluetooth micro printer can print directly on the spot to ensure the accuracy and objectivity of the test results.
6.USB transmission interface, easy to connect with the computer.
7.The instrument simulates the impact effect of high-speed train on subgrade. Compared with static load test, it can better reflect the actual stress of subgrade soil.
Technical Parameters
Test Coverage
Application Soil Types | Soil-rock mixed fillers with particle size less than 1/4of the diameter of loading plate |
Test scope | 10Mpa≤Evd≤225Mpa |
Test impact depth | 0~500mm |
Work environment | Temperature: -10~40℃ Humidity: <90%HR |
Date-collecting device
Loading device | Weight | 15KGs |
Drop weight | 10KGs | |
Dropping height of drop hammer | 700±20mm | |
Maximum impact force | 7.07kN | |
Shock duration | 18±1ms | |

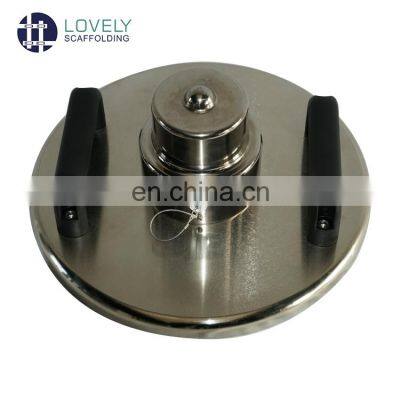

Loading plate | Weight | 15KGs |
Diameter | 300mm | |
Thickness | 20mm |

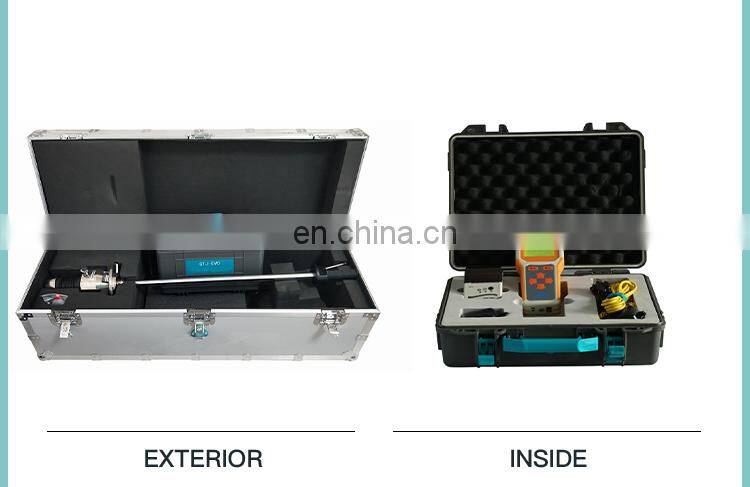

Packing specification
Host box | Material | engineering plastics |
Volume | 420×140x335mm | |
Weight | 4.5GKs | |
Outer packing box | Material | Aluminum alloy |
Volume | 1220x395x380mm | |
Weight | 56KGs |
Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
