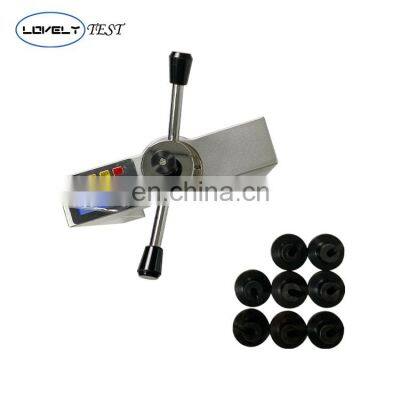

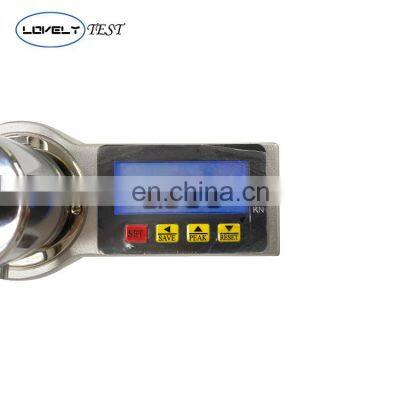

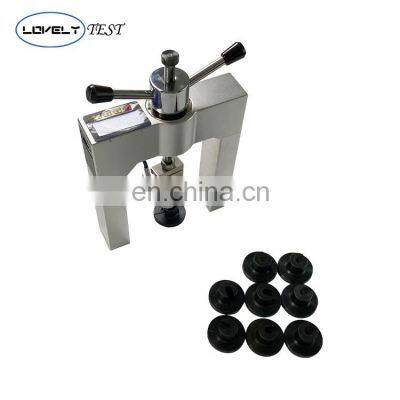

TC-10S Carbon Fiber Bond Strength Tester
Usage Overview
A new type of instrument suitable for testing the tensile bond strength between carbon fiber sheets and concrete in civil engineering structures. With more bonding strength and failure mode during stretching, the experimental results can be obtained immediately.
Product Description
1. Portable design, easy to grasp with one hand
2. High precision S-shaped sensor
3. Peak hold, automatic record the max force values
4. 10-section polyline correction
5. Automatic shutdown and backlight
2. High precision S-shaped sensor
3. Peak hold, automatic record the max force values
4. 10-section polyline correction
5. Automatic shutdown and backlight
Specification
Item | TC-10S Carbon fiber bond strength tester |
Instrument structure | Integrated |
Display mode | Adjustable force / strength value Mpa |
Measuring range | 0-10.000kN/5Mpa |
Resolution | 0.001kN |
Accuracy class | 0.5% F.S |
Peak hold and LCD lighting | yes |
Data storage | 200 |
Data correction | 10 segment polylines |
Power supply | Large capacity lithium battery |
Drawing stroke | 65mm |
Theme material | Light alloy |
Theme weight | 2.8kg |
Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
