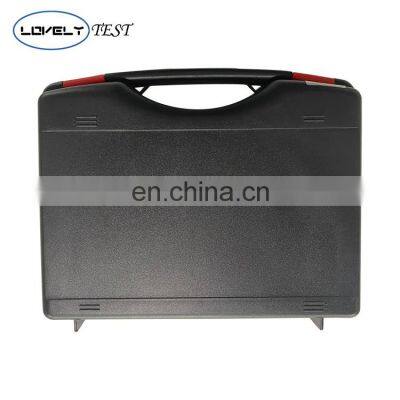

T100 Coating Thickness Gauge photo-2

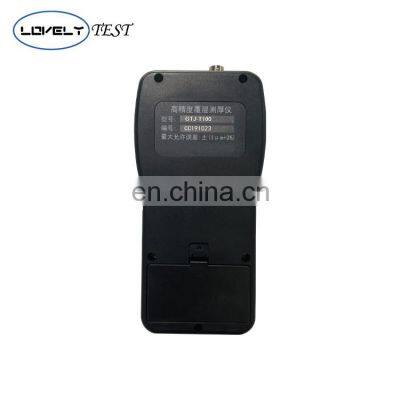

T100 Coating Thickness Gauge photo-3

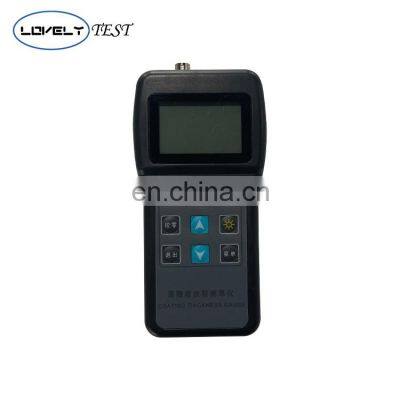

T100 Coating Thickness Gauge photo-4

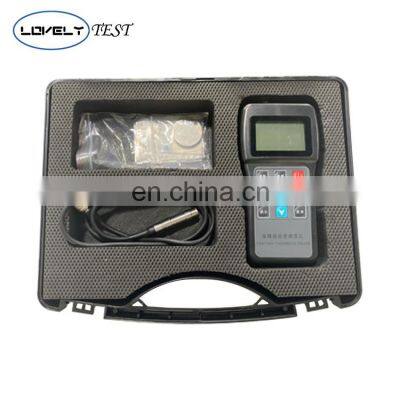

T100 Coating Thickness Gauge photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

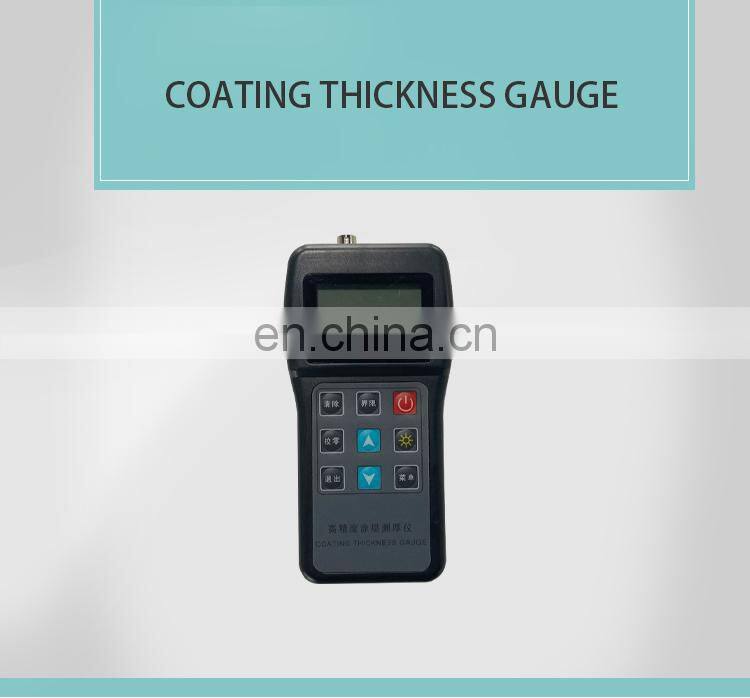

T100 Coating Thickness Gauge
Usage Overview

T100 Coating Thickness Gauge is an economical and practical portable thickness measuring instrument. It uses magnetic and eddy current thickness measurement methods to measure the thickness of non-magnetic coatings on magnetic metal substrates and non-magnetic metal substrates. The thickness of the non-conductive cover layer; it can quickly and accurately measure the thickness of coatings and coatings without damage. It can be used in the laboratory and engineering field. By using different probes, you can also meet the needs of a variety of measurements. This instrument can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is a professional instrument for material protection.
Product Description
Specification
Specifications
T100

Probe selection
Optional 10 probes
F1(Paint/Plating/Fire-resistant layer and 10mm inner cover)
Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10
Working principle
Magnetic induction and eddy current
Measurement accuracy
F1(±((1~2)%H+1)), F10(±((1~3)%H+1)), N1(±((1~2)%H+1))
Measuring range
F1(0~1250um), F10(0~10000um), N1(0~1250um)
Minimum curvature
F1(3mm),F10(10mm),N1(4mm),F400(1mm)
Minimum area
F1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3)
Measurement method
Continuous measurement method, single measurement method
Statistics function
Mean, Large, Small, Tests,Standard Deviation
Calibration method
Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe


Storage function
Can store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data
in the storage area for new measurement


Alam system
Linits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function;
beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps
Shutdown method
Manual shutdown mode and automatic shutdown mode
Use environment
0~40℃/ humidity: 20%RH~90%RH
Use environment
Magnetic field-free environment
Power supply
Tow AA batteries
The standard configuration
Main unit 1 set/probe 1 set/ stan dard piece(5 pirces)/iron or aluminum base 1 piece/ 5 AA battery 2 sections/manual certificate
warranty card 1 set

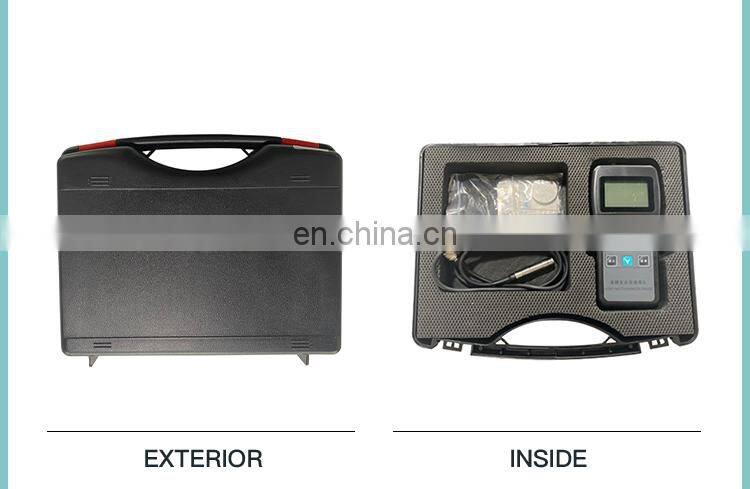

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.

After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling

Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
