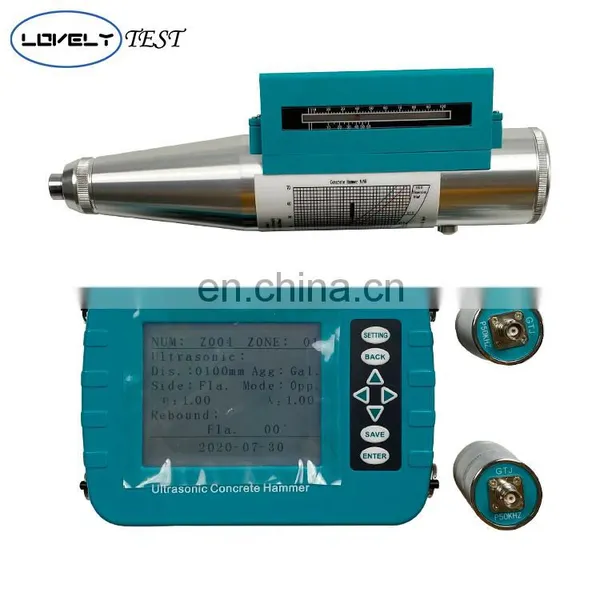

Digital Concrete Ultrasonic Pulse Velocity Tester
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
2017
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Density Gauge Portable Asphalt Non-Nuclear Density Gauge Meter Factory PriceNegotiableMOQ: 1 -
LCD Display Multi-functional Wire Rebar Scanner Wall Scanning DetectorNegotiableMOQ: 1
-
Non Nuclear Asphalt Density Gauge/soil Test Equipment PriceNegotiableMOQ: 1
-
Electrical Non Nuclear Soil Density Gauge Compaction TestingNegotiableMOQ: 1
-
Non Nuclear Soil Electrical Density Gauge EDG Soil ApparatusNegotiableMOQ: 1
Product Usage and Features
Concrete Ultrasonic Plus Velocity Tester
Usage:
Concrete Ultrasonic Plus Velocity Tester is used for testing both the surface and inner hardness of concrete with non nuclear method.
It is a comprehensive instrument for testing the strength of concrete. It can be used as an ordinary rebound tester or as an ultrasonic rebound comprehensive tester. It can measure the rebound value as well as the sound time and sound speed. It is suitable for non-destructive testing of common concrete compressive strength in various construction projects.
Features:
1.New upgraded wireless cloud transmission function;
2.It adopts three anti- shell design waterproof, dustproof and shockproof;
3.Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic reboundmethod.It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.
4.High quality using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;
5.Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;
6.Powerful: The instrument can store 4000 sets of data and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
Parameters
Product name |
U200 Ultrasonic pulse velocity tester |
Type |
GTJ-U200 |
Waterproof level |
IP65 |
Screen Size |
5 inches |
Ultrasonic Frequency |
50KHz |
Stiffness of Spring Strike |
785.0±40.0 (N/m) |
Impact Length of Ram |
75.0±0.3mm |
Power Supply Mode |
Large capacity lithium battery. Working time over 8 hours. |
Working Environment |
-10℃~40℃ |
Packing |
Material: engineering plastic Volume:420*140*335mm Weight:5.5KGs |
Detailed Images
Contact US
Cangzhou Lovely Technology Co., Ltd.
Cangzhou Lovely Technology Co., Ltd.is a growing company with over 12 years of experience in China, is the leading manufacturer and supplier of testing equipment used for evaluating construction and civil engineering materials. We design and manufacture all machines and accessories either by our self or in close cooperation with long-term partners.
Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.
We adhere to the high standards of product quality, adopting the world-class production equipment, advanced management method and production experience, developing the high-quality testing equipment.
We have strong sales team and a comprehensive service process to serve end customers around the world. If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
FAQ
Q1: How long is the lead time?
A: Normally 3-7 days. Depend on the order quantity.
Q2: What is the transportation method?
A: By Express, By air or By Sea.
Q3: What are the payment terms?
A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.
Q4: How is the after-sales service?
A: 12 months quality warranty with online technical support.
Q5: Are there any factory quality certificates?
A: We have the ISO certificate and National patent certificates.
Q6: Is Lovely test trustworthy?
With more than 12 years' production experience. We would give you an excellent experience!
