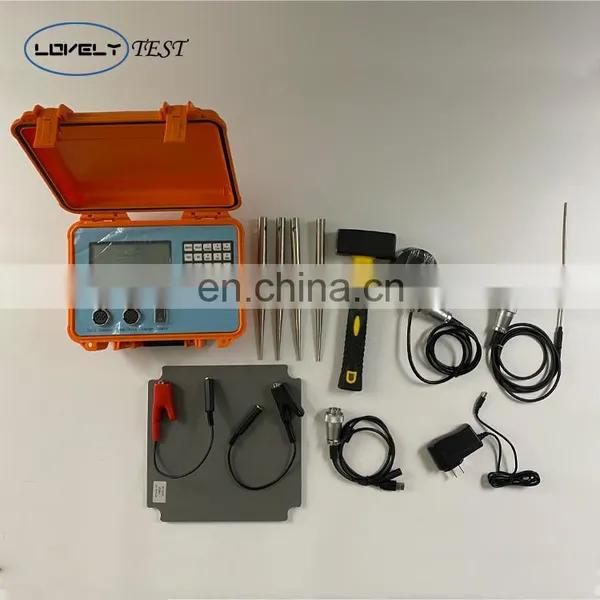

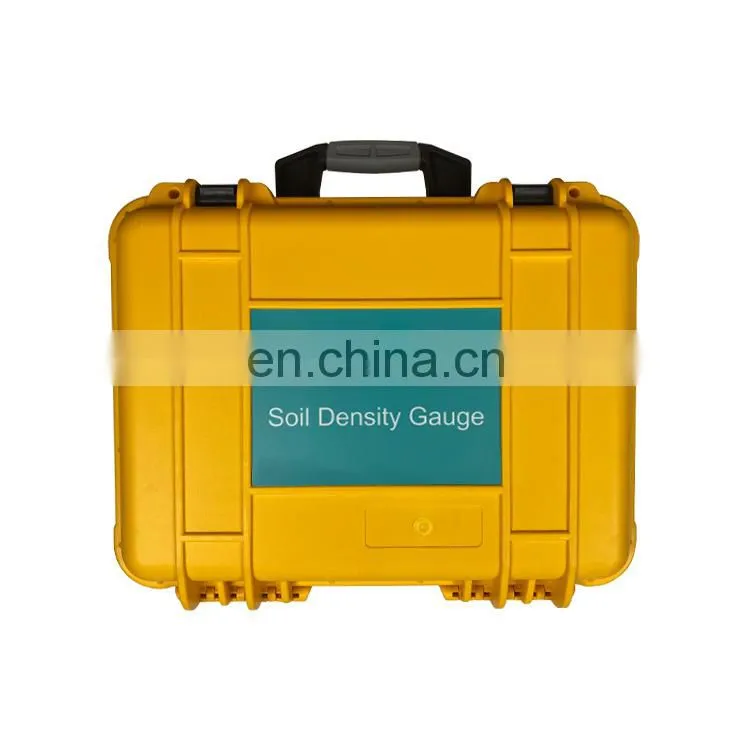

Non Nuclear Soil Electrical Density Gauge EDG Soil Apparatus
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
BM-III British Pendulum Skid Resistance Tester Pendulum Coefficient Testing Machine
-
non nuclear soil asphalt density testing (EDG) Electrical Density Gauge
-
Touch Screen Integrated Steel Bar Detector Concrete Rebar Scanner rebar locator price
-
Slump Cone Test Set For Fresh Concrete Testing price
-
Evd dynamic deformation modulus tester lightweight deflectometer test
-
Rebar corrosion testing meter steel corrosion meter for sale
Product Description
Non-nuclear Soil Density Gauge
Product Description

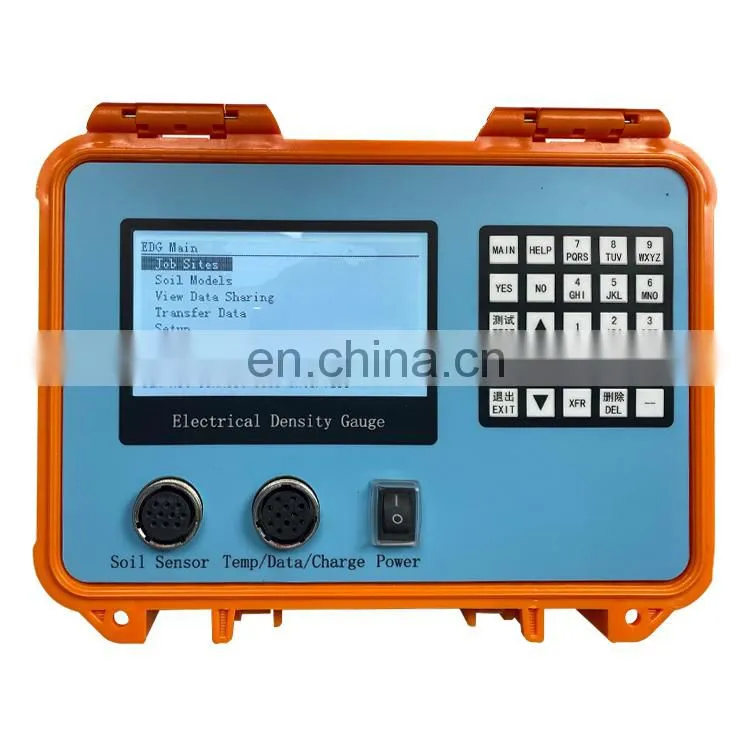

The LOVELY-4114 Non-nuclear soil density gauge (EDG) accurately measures soil density, moisture content and compaction in roads and foundations. The measurement accuracy depends mainly on the correct use of the operator, so a detailed reading of this operating manual will be available. Help you to use the product better.
When making a soil model, EDG is needed to collect electronic signals at different test points (the test point of this soil model is called soil test). Each test point needs to collect an electronic signal. At the same time, sand cone test is needed to obtain the physical characteristics of the soil, such as wet density, dry density and moisture content. The maximum dry density of the soil is measured in the laboratory, and then these data are input into the instrument so that the electronic data can be correlated with the physical data.
Parameters
Equipment name | Soil nuclear density meter | ||||||
Specification model | LOVELY-4114 | ||||||
Maximum RS-232 cable length | 100cm | ||||||
Internal power supply | 12V nickel-hydrogen,2000mAh capacity | ||||||
Battery life | About 24 hours | ||||||
Operating temperature range | 0 ~ 50℃ | ||||||
Humidity range | 5% ~ 90%RH | ||||||
EDG controller weight | 8kg | ||||||
EDG controller size | 300*260*140 | ||||||

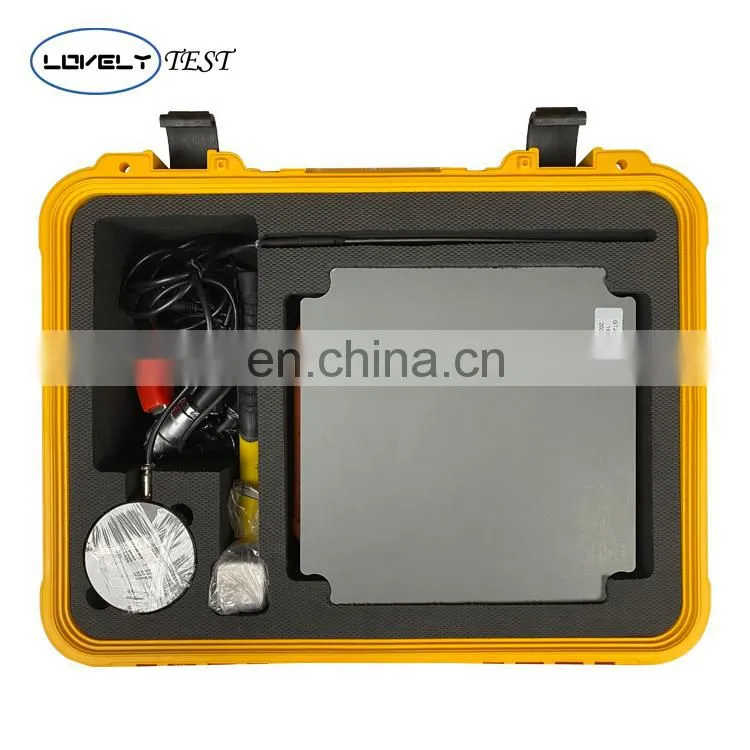

EDG accessory weight | About 3kg | ||||||
Main Features

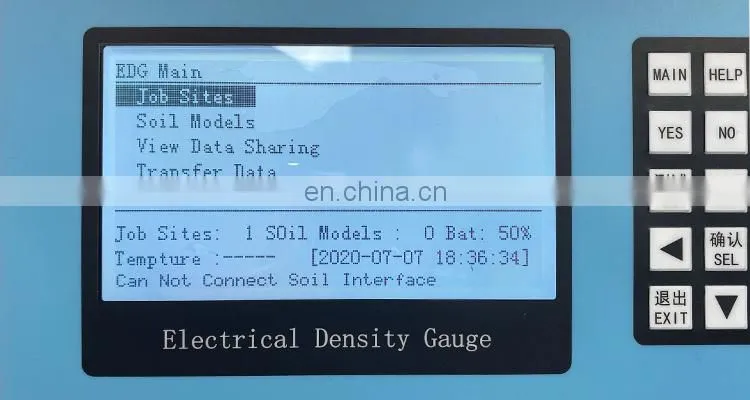

Some new technologies that you need to be familiar with during the operation of EDG are introduced.
1. Soil model is the combination of soil electronic data and soil physical data input by users, and it is the basis of testing soil parameters in a similar soil characteristic area.
1. Soil model is the combination of soil electronic data and soil physical data input by users, and it is the basis of testing soil parameters in a similar soil characteristic area.
2. At least three test points (soil test) are required for soil moulding. The more test points, the more representative the soil
model will be. Moreover, the larger the density and water content range covered by the test points, the more accurate the soil model is.
3. After the soil model is made, EDG can be used for field test. The test area is the area where the experimenter intends to test and the tested soil has the same physical characteristics.
4. A soil model is usually made for each different test area. Different projects need different soil moulids. Once the soil model representing this area is successfully made, the soil characteristics of any test point can be quickly and accurately measured by
EDG through field test.
5. The actual test is to calculate the physical properties of soil by comparing the electronic data collected from the test points with the soil model.
model will be. Moreover, the larger the density and water content range covered by the test points, the more accurate the soil model is.
3. After the soil model is made, EDG can be used for field test. The test area is the area where the experimenter intends to test and the tested soil has the same physical characteristics.
4. A soil model is usually made for each different test area. Different projects need different soil moulids. Once the soil model representing this area is successfully made, the soil characteristics of any test point can be quickly and accurately measured by
EDG through field test.
5. The actual test is to calculate the physical properties of soil by comparing the electronic data collected from the test points with the soil model.
Application
Contact US
Cangzhou Lovely Technology Co., Ltd is specialize in NDT Testing Equipment and Material testing machine over 10 years,Withour advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which winfavorable comments from customers worldwide.
We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.
We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate
Packing & Delivery
Why Choose us ?
Q1:Are you a factory or trading company?
A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port?
A:Qingdao port or tianjin port
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001
Q5:Do you have an OEM service?
A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?
A:General it is about 7-15 days.It depends on the quantity of the order.
Q7:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
