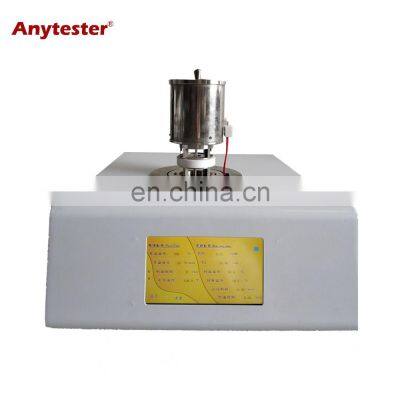

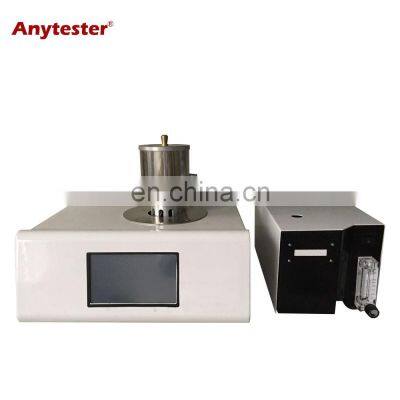

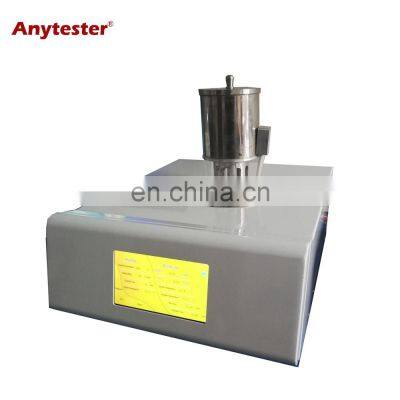

STA-200 Simultaneous Thermal Analyzer is the combination of thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC). It can get TG, DTA or DSC information of the same sample in one measurement.
Measure and study characteristics of materials as follow:
DSC: Melt, crystal, phase transition, react temperature, react heat, combustion heat, specific heat and so on;
TG: Heat stability, decomposition, redox, adsorption and desorption, content of free water and crystal water, calculation of proportion of ingredients and so on;
Structure advantage:

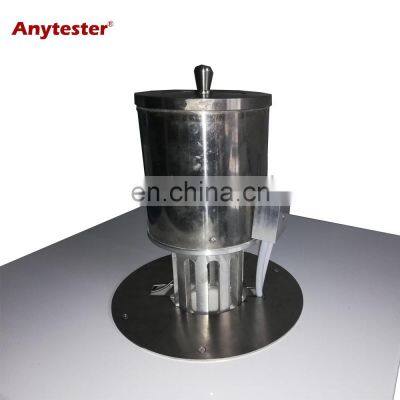

★ Furnace heater made from precious metal nicochrome, reducing interference and stronger resistance to heat;
★ Tray sensor made of precious metal nicochrome, with advantages of resistance to high temperature, anti-oxidation and anti-corrosion;
★ Electricity supplying system and circulating heat dissipation system separate from the main machine , reducing the effort of heat and vibration on the micro thermal balance;
★ Adopts up-openable cover structure, convenient to operate;
★ The main machine adopts heat insulation device to isolate the heat effort from the heating furnace to the micro thermal balance;
Advantages of Controller and Software:
★ Adopts imported 32-bit ARM processor with Coretex-M3 core, rapid sampling and processing speed;
★ 24-bit four-path sampling AD acquires DSC signal, TG signal and temperature signal;
★ Electricity-supplying and water circulating system adopts separate 8-bit chip to separately control; so the machine and the cooling part are separated without relative interference;
★ USB both-way telecommunication between the software and the machine, setting of parameters and running status of the machine can be carried out on PC;
★ 7inch full-color 24 bit touch screen, better human-machine interface;
★ The calibration of TG can be carried out on touch screen.
Model | STA-200 |
Temperature range | Room temperature~150℃ Up to 1350℃ (optional) |
Temperature resolution | 0.1℃ |
Temperature fluctuation | ±0.1℃ |
Heat rate | 1~80℃/min |
Temperature control | Heat, constant, cool |
Constant-temperature time range | 0~300min, randomly-settable |
Cool time | 15min cooling from 1000℃ to 100℃ |
Balance measuring range | 1mg~2g Up to 5g (optional) |
DSC resolution | 0.01mW |
Display | 24-bit 7inch LCD display |
Gas device | Built-in gas flowmeter, can switch two-path of gases and control flow between 0~300ml/min Suitable gas: inert, oxidizing, reducing, static or dynamic |
Software | Intelligent software, automatic recording of TG curves, data processing and printout of test report |
Interface | Standard USB interface |
Power supply | AC220V 50Hz |
Packaging | ||
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Payment Item | T/T | EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance,paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 50,000usd | ||||
Delivery Time | 7~10 days after receiving payment for one container | ||||
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
