Application

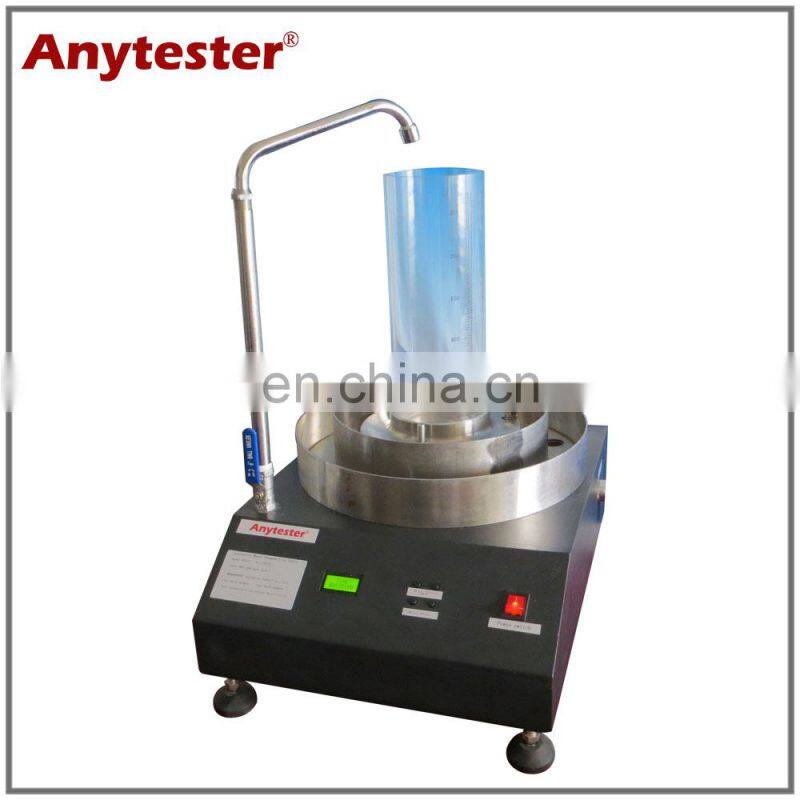

HY2310 Geotextile Water Permeability Tester is used to determine the vertical permeability of geotextiles and composite materials
Standard
|
ASTM D4716 |
ISO 11058 |
GB/T 15789 |
|
JTG E50 |
SL/T 235 |
|
Note: this Geotextile Water Permeability Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Specification
|
Model |
HY2310 Geotextile Water Permeability Tester |
|
Max. water head pressure difference |
250mmH2O |
|
Inner diameter of sample holder |
50±0.5mm |
|
Max. Thickness of sample |
20mm |
|
Timer |
0~99.99s |
|
Thermometer |
0~50℃ |
|
Min. Division value of thermometer |
0.1℃ |
|
Measuring cylinder |
1000ml |
|
Min. Division value cylinder |
10ml |
|
Power supply |
AC220V, 50Hz, 20w |
|
Dimensions |
400×500×850mm |
