Home > Products > Rubber Tester > Shape and Size of Sample Can Be Customized Digital Display laboratory hydraulic press

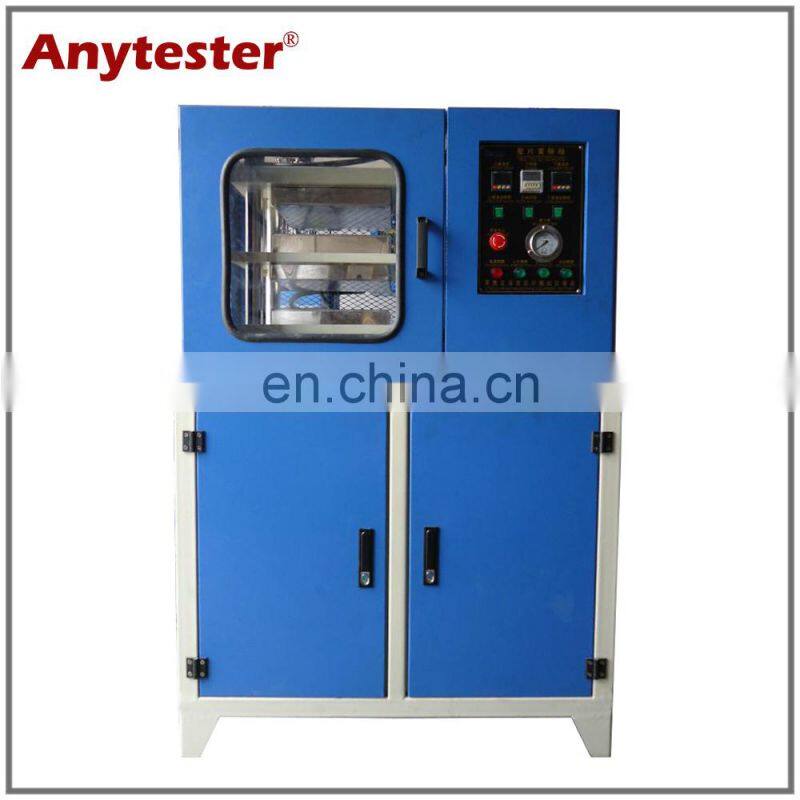

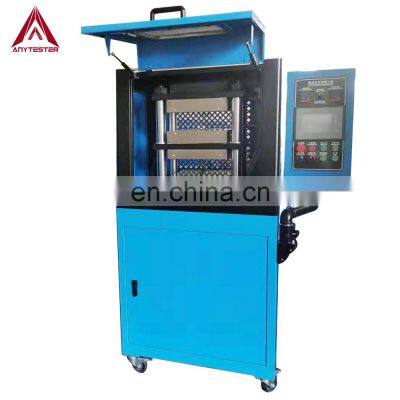

Shape and Size of Sample Can Be Customized Digital Display laboratory hydraulic press
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
HY3890 Laboratory Hydraulic Press is used for providing a constant temperature and pressure environment for molding of tensile, impact or other specimens. It is widely used in the automotive, plastics, rubber and textile industry.
1. Convenient for preparing samples, accurate, uniform and time-saving
2. Easy and simple to operate
3. Four-post structure, durable, excellent quality
4. Digital display temperature controller, PID control, accurate and stable
5. Hydraulic pressure control
6. LED display time, 99min max.
7. Selectable pressure range suitable for a wide range of materials
8. The shape and size of molds can be customized
9. High temperature resistant working plate, surface with carbide quenching treatment to ensure fast heat conduction and pressure balance with no deformation
10. Closed loop control system of proportional hydraulic flow, automatic pressurization, pressure maintaining and pressure relief
|
Model |
HY3890A |
HY3890B |
|
Capacity |
10 ton or customized |
20 ton or customized |
|
Temperature range |
RT~300℃ |
RT~350℃ |
|
Temperature accuracy |
±2℃ |
±2℃ |
|
Timer |
LED 0~99min |
LED 0~99min |
|
Heating plate |
300×300mm or customized |
300×300mm or customized |
|
Cooling method |
|
Water cooling |
|
Heating method |
Electric heating |
Electric heating |
|
No. of working layer |
1 |
2 |
|
Daylight |
0~90mm or customized |
0~90mm or customized |
|
Power supply |
AC380V, 50Hz, 20A |
AC380V, 50Hz, 20A |
|
Dimensions |
1100×600×1500mm |
1100×600×1500mm |
|
Weight |
550kg |
560kg |
