Product Description

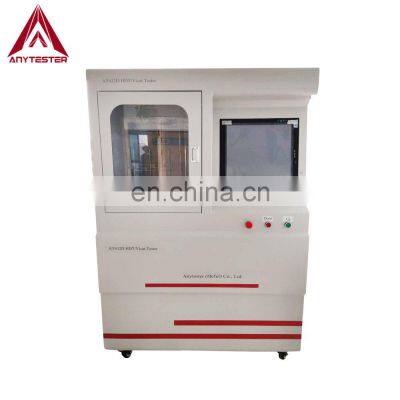

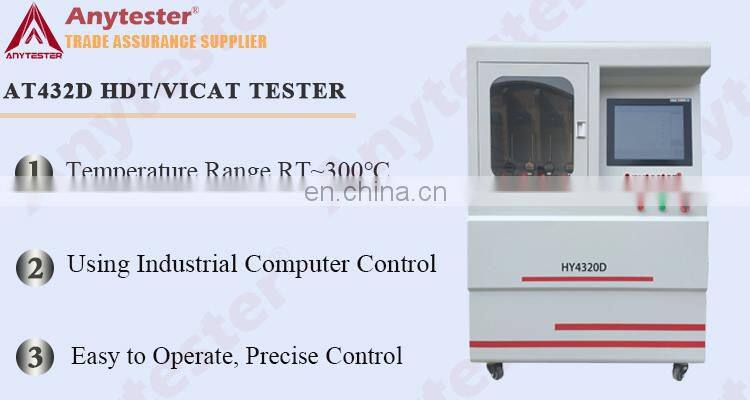

AT432D HDT/Vicat Tester is used to determine the heat distortion temperature (HDT) and Vicat softening point of plastic materials. It is widely suitable for plastic, hard rubber, nylon, electrical insulating materials, long fiber reinforced composite materials, high strength thermosetting lamination materials and other non-metallic materials.
Standard
ISO 2507, ISO 75, ISO 306 | ASTM D1525, ASTM D648 | GB/T 8802, GB/T1633, 1634, | ||
Note: For more standards, please contact us! | ||||
Specification
Model | AT432D |
Control | Microcontrollers and industrial computers step control system |
Temperature range | RT~300℃ |
Heating speed | 120℃/h [(12±1)℃/6min] 50℃/h [(5±0.5)℃/6min] |
Max. temperature error | ±0.5℃ |
Temperature measurement point | 1 |
Working position | 3, (4 optional) |
Deformation range | 0～1.1mm |
Max. deformation error | 0.01mm |
Sample support span | 64mm, 100mm(can adjust as ASTM D method) |
Heating medium | Methyl silicone oil or transformer oil |
Cooling method | Below 150℃: water cooling or natural cooling Over 150℃: natural cooling |
Dimension | 550mm×500mm×1400mm |
Power supply | AC220V, 50Hz 4.5KW |
Details & Features
★Using industrial computer control, solid-state hard drive, system stability, low failure rate;
★Digital micrometer measure deformation, real-time curve drawing;
★ The test data can be directly second processing on the PC, test data can be imported into the OFFICE software to edit;
★Automatic smoke exhaust system has been design to guarantee the operator’s health and not contaminate the environment;
★Sample racks automatically lift and down, no need manual operation.
★Easy to operate, precise control;
★Temperature protective circuit, being independent from the controlling system, is designed to protect the tester when temperature of medium exceeds its using range;
