Tga/dsc Thermo Gravimetric Analyzer up to 1150
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hand-held Digital Thickness Gauge for PipesNegotiableMOQ: 1 -
MFR & MVR Plastic Melt Flow IndexerNegotiableMOQ: 1
-
Izod Charpy Universal Pendulum Impact Tester With CE CertificateNegotiableMOQ: 1
-
High Quality Digital Axial Notch Milling MachineNegotiableMOQ: 1
-
Meltblown Nonwoven Fabric Melt Flow Index Testing MachineNegotiableMOQ: 1
Product Description

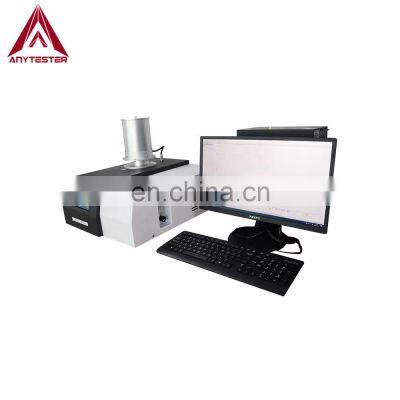

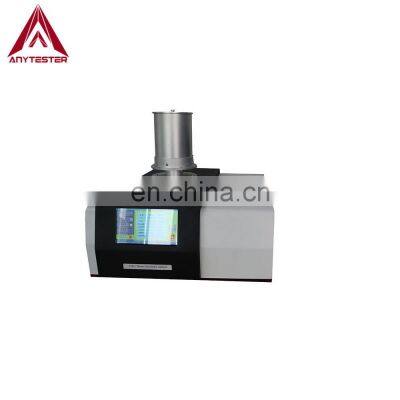

AT452 Thermo Gravimetric Analyzer is used to obverse the function that sample weight changing along with time or temperature during heating up, cooling or constant temperature. It is widely used for research and development, process optimization, quality motoring of plastic, rubber, paint, medicine, catalytic agent, inorganic material, mental material, composite material and other areas.
Specification
Model |
AT452 |
Temperature range |
Room temperature~1150℃ |
Resolution of temperature |
0.1℃ |
Temperature fluctuation |
±0.1℃ |
Up rate |
1~80℃/min |
Method of control temperature |
heating, cooling, constant |
Holding time of constant temp. |
0~300min, settable |
Cooling time |
15min (1000℃…100℃) |
Range of balance |
1mg~2g |
Sensitivity of balance |
0.01mg |
Constant time |
0~300min |
Display |
LCD touch screen |
Software |
Curve of TG can be recorded and displayed automatically |
Data interface |
Standard USB port |
Power supply |
AC220V, 50Hz |
Dimension |
490*400*345mm |
Details & Features
★ Automatic temperature control mode: temperature up, keeping and cooling;
★ Build-in Gas flow indicator in Atmosphere device, gas velocity is adjustable;
★. Atmosphere: Inertia, oxidability, reducibility, static state, tendency;
★ Air flow Controlling: Static or dynamic atmosphere with gas flow control device;

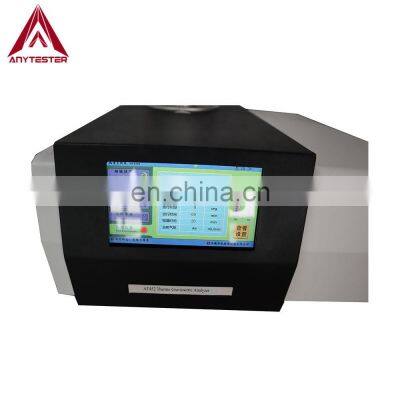

★ Display: large LCD, real-time display theoretical temperature , actual temperature and working time;
★ When reach the setting temperature, machine automatically stop heating up and automatically cooling;
★ Providing easy operated software with user friendly characteristic;

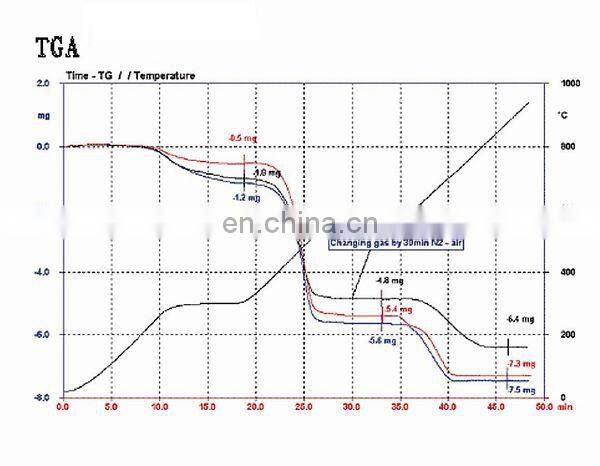

★ Obtaining TGA diagram plus printing ＆ filing capability of testing results;
★ Real-time display test curve;
★ Full equipped with accessories, convenient and easy to test.
★ Real-time display test curve;
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging |
||
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
Payment Term
|
T/T
|
EXW |
30% T/T in advance, paid the balance before shipment
|
||
FOB |
|||||
CFR(C&F) |
|||||
CIF |
|||||
L/C |
L/C amount above 50,000 usd, we can accept L/C at sight |
||||
West Union |
Amount lower than 5000usd
|
||||
West Union |
|||||
Delivery Time |
7~10days after receiving payment for one container |
||||
