Home > Instruments & Meters > Test Instrument > Test Machine > Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader

Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader

Anytester (hefei) Co., Ltd.
Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader thumbnail-1
Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader thumbnail-2
Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader photo-1

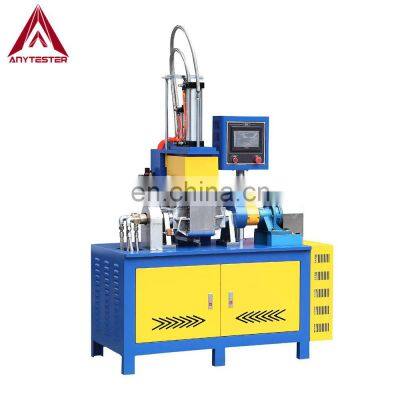

Rubber Plastic Banbury Mixer Mini Lab Banbury Mixer Kneader photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

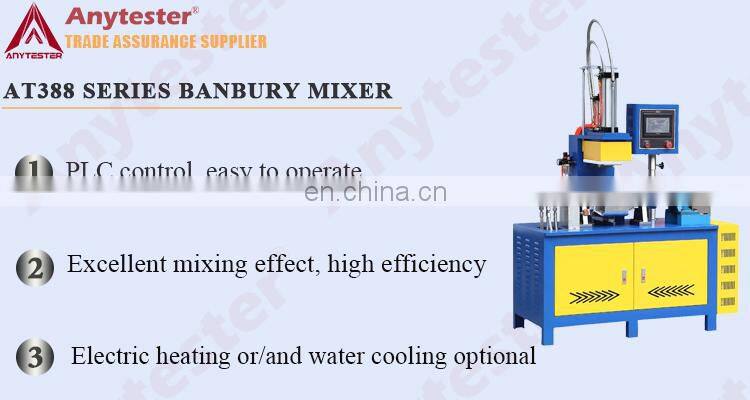

AT388 Series Banbury Mixer (original HY3880) is used for plasticizing, scattering and mixing of rubber products, industrial chemicals and plastic products, such as rubber ring, rubber belt, PVC, color masterbatch, cable materials, etc.
Details & Features
Model
AT388A
AT388B
Volume
3L

Display
LED
Color touch screen
Main motor
5.5kw

Heating method
Electric

Heating power
2.5kw

Temperature range
RT~260℃

Dumping angle
135°

Dumping motor
0.75kw

Compressor motor
2.2kw

Speed ratio of front and
back rotors
1:1.27 or customized

Rotor speed
0 ~ 50RPM adjustable

Rotor hardness
HRC 60 crmoly

Mixing room
SKD crmoly with HRC60 hard chrome

Air pressure
0.5 ~ 0.8Mpa

Power supply
3phase, AC220/380V, 60/50Hz

Dimensions
1450×700×2200mm

Weight
980kg

Specification

★ PLC control, self-examination, alarm and interlock function
★ Large color touch screen control, programmable, real time display time, temperature, torque (HY3880B).
★ It has real time discharge function during working to avoid motor stop and start frequently, it can protect the motor and make it work for long time
★ Adopt hard surface planetary reducer, excellent quality
★ Electric heating or/and water cooling optional for one machine
★ Different mixing capacity selectable
★ Excellent mixing effect, high efficiency
★ Easy to operate and maintain, lower power consumption, stable and safe
Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Packing & Delivery
Packaging
Dimensions
1450×700×2200mm
Weight
980kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
