Notched Constant Tensile Load Testing Machine (NCTL)

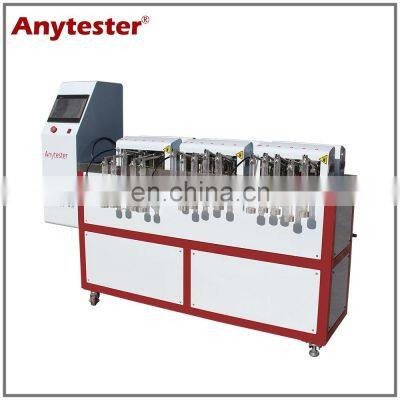

Notched Constant Tensile Load Testing Machine (NCTL) photo-1
Notched Constant Tensile Load Testing Machine (NCTL) photo-2
Notched Constant Tensile Load Testing Machine (NCTL) photo-3
Notched Constant Tensile Load Testing Machine (NCTL) photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Product Application.

HY4251D Series Digital Charpy Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen.

STANDARDS
ASTM D5397
Note: This Digital Charpy Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
SPECIFICATIONS FOR AT415 NOTCHED CONSTANT TENSILE LOAD TESTER
No. of test unit
6 or customize
Working position
5pcs per test unit
Load range
200~1370g
Tube weight
196±3g
Tube bearing weight
600g
Timing range
1s~9999h59min59s
Timing accuracy
1s
Timing deviation
1min
Volume of bath
125L
Temperature control range
RT~80℃
Display resolution
0.1℃
Temperature accuracy
±0.5℃
Clamp axis diameter
Φ6
Operation temperature
10~35℃
Heating power
3.0kw
Power supply
Single phase, (187~242) VAC, 50Hz, 4.5kw
Dimensions
1900×500×1400mm (L×W×H)
Details & Features




Touch Screen Control

> Large LCD display

> Touch screen control make the operate simple

> Modularization desigmake after sale service easy






Modularization Design

> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC

High efficient performance

>  6 test units can work separately

>  5 working positions per test unit

>  test 30 specimens at the same time



High quality material

> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications
Packing & Delivery
Packaging
Size
85 (L) * 51 (W) * 94 (D)
Weight
60Kg

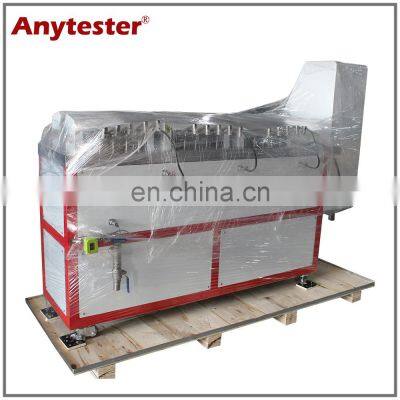

Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
