Product Description

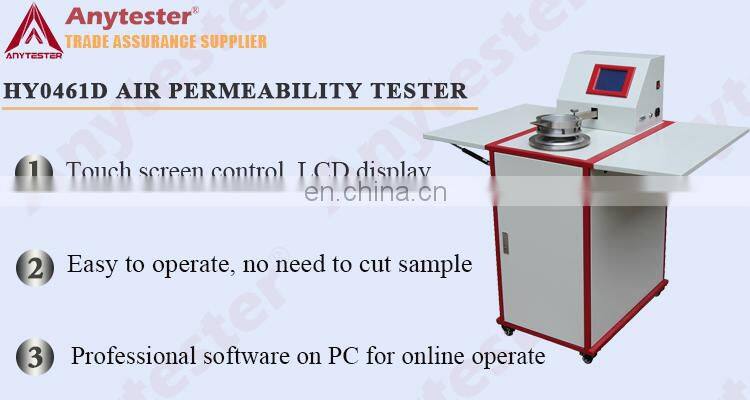

HY0461D Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.
Standard
ISO 9237, 7231, 5636 | ASTM D737 | BS 5636 | ||
DIN 53887 | JIS L1096 | GB/T 5453, 13764 | ||
Note: For more standards, please contact us | ||||
Specification
Model | HY0461D |
Perforated plate | Manual |
Measuring range | 0.1~12000mm/s(L/m2.s) |
Units | mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s |
Measuring accuracy | ≤±2% |
Test pressure | 1 ~ 4000Pa |
Test area/test rig | 20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm), 50cm2, 100cm2 optional) |
Perforated plate | Φ0.8mm, Φ1.2mm, Φ2.0mm, Φ3.0mm, Φ4.0mm, Φ6.0mm, Φ8.0mm, Φ10.0mm, Φ12.0mm, Φ16.0mm, Φ20.0mm |
Specimen thickness | ≤12mm |
Power supply | AC220V±10%, 50Hz |
Power | 2KW |
Dimensions | 1070×670×1080mm |
Weight | 75kg |
Details & Features
★ Touch screen control, LCD display
★ Professional software on PC for online operate
★ Adopt high precision low pressure difference sensor, more accurate
★ Easy to operate, no need to cut sample

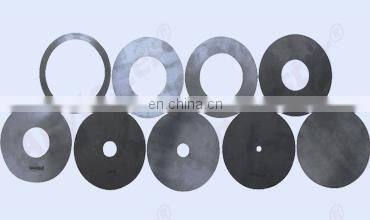

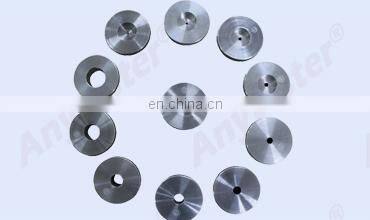

★ Provided with 11 pcs of perforated plate to determine different textile
★ 7 units selectable, mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
★ Several test heads can be selected, the standard configuration is 20m2
★ Chinese and English display language selectable
★ Modified mechanical process, it’s more beautiful and durable.
