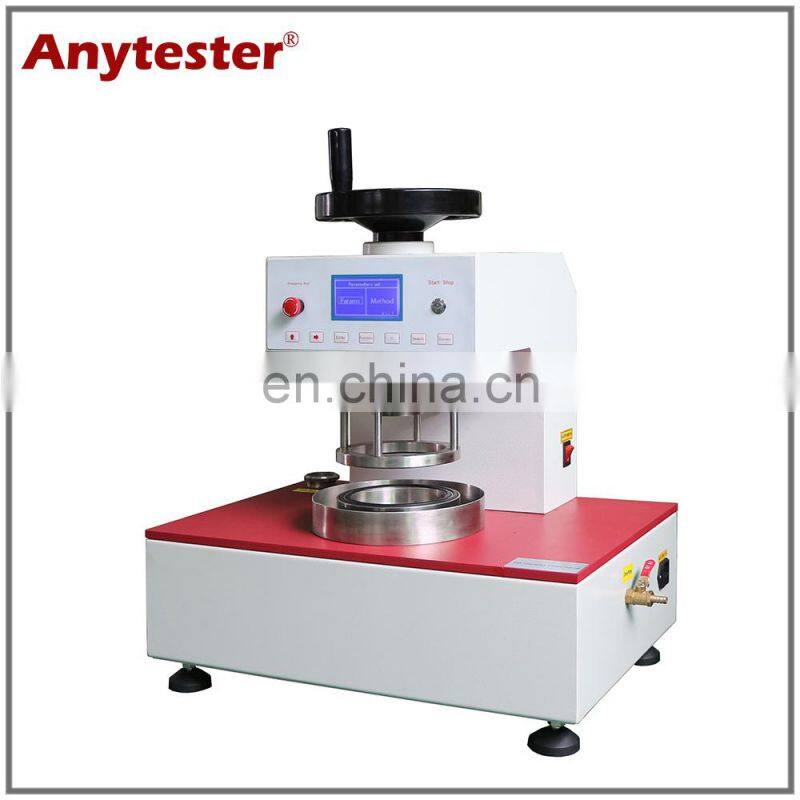

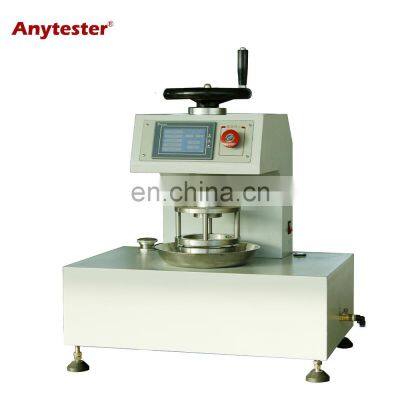

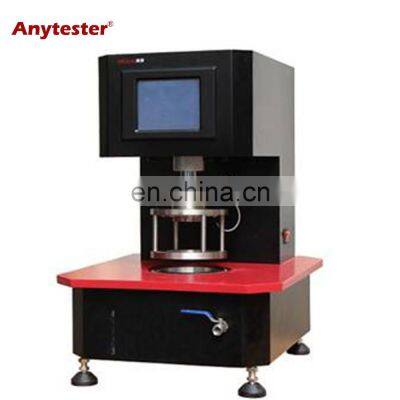

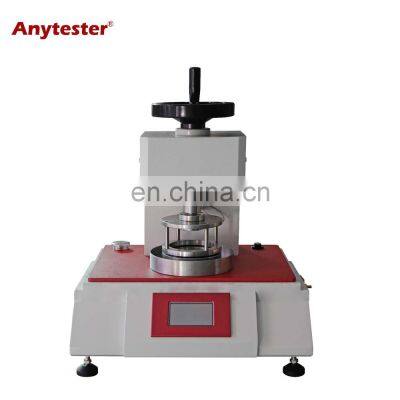

Fabric Hydrostatic Head Pressure Tester
- T/T Credit Card
You May Like
Product Description
HY0812 Hydrostatic Head Tester is used to determine the resistance of fabric to water penetration under pressure while firmly clamped in the test ring of standard area, by means of dynamic test method and static test method.
|
AATCC 127 |
ISO 811 |
BS EN 20811 |
|
BS 3321, 3424-26 |
JIS L 1092A/B |
ERT 120-2-02 |
|
GB/T 4744 |
FZ/T 01004 |
|
Note: For more standards, please contact us
1. Microcomputer control, digital setting
2. Adopt high precision pressure sensor, more accurate
3. 3 kinds of pressure range selectable
4. Four display unit free to change, Kpa, mmH2O, cmH2O and Bar
5. Built-in professional LED light, easy to observe drops
6. Two test modes: supercharge method and crooked & relaxation method
7. Stainless steel clamp, more stable and durable
|
Model |
HY0812-5 |
HY0812-20 |
HY0812-50 |
|
Test ring diameter |
113mm or customized |
||
|
Test area |
100cm2, (7.8cm2 optional) or customized |
||
|
Measuring range |
500Pa ~ 50kPa |
500Pa ~ 200kPa |
5kPa ~ 500kPa |
|
Water pressure rising rate |
1~20kPa/min or customized, digital setting |
||
|
Working mode |
2 kinds |
||
|
Water tank capacity |
1000ml |
||
|
Power supply |
AC220V±10%, 50Hz |
||
|
Power |
200w |
||
|
Dimensions |
550×400×600mm |
||
|
Weight |
100kg |
||
