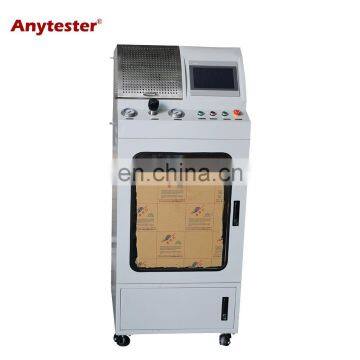

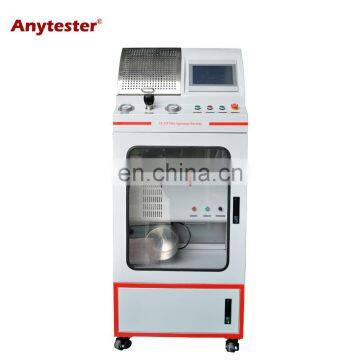

Lab Melt Spinning Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Application.

AT225 Laboratory Melt Spinning Machine is a main key equipment in synthetic fiber production. This machine uses high temperature copper ring block to heat and melt the polymer sample, and extrudes the sample to be liquid trickle from a spinneret under the effect of inert gas (N2) pressure to produce the nascent fiber.

Model		AT225
Pressure range		Design pressure: 3.6MPa Input pressure: ≤13MPa, Output pressure: ≤1.6MPa, accuracy: ±0.01MPa
Temperature range		450℃ max.
Temperature accuracy		±0.5℃
Heating mode		Two sections of heating furnace, Mullite fiber insulation
Temperature control mode		Two pieces of temperature controller, high precision of ±0.5℃
Feed cylinder		150ml, stainless steel, with soaking distribution device
Spinneret plate		Dia. 0.2, 0.3, 0.4, 0.5 optional L: D: 2:1~3:1 optional kinds of hole optional (please specify before order)
Rotary head		Friction driven rotary head
Speed range		0~1400 RPM
Winder Dia.		200 mm or adjusted
Max. Winder dia.		320mm
Rotary head		Friction driven rotary head
Power supply		AC110V, 50Hz
Weights		260 kg
Dimension		7307201685

Details & Features

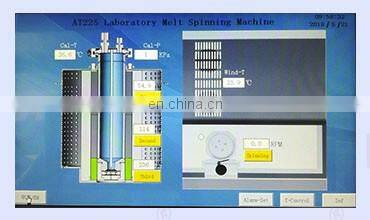

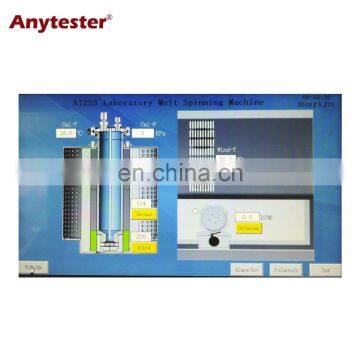

> Colorful touch screen, real-time display of temperature and air pressure in cylinder;

> English and Chinese language selectable

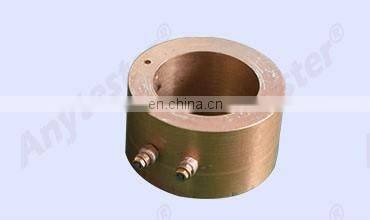

>Three heating zones with copper ring block to heat

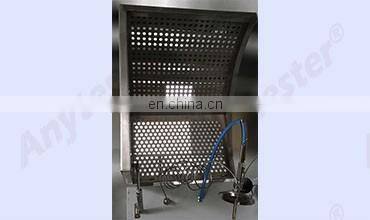

> Metal protective hood with air leg.

>Stable inert gas pressure system.

> consists of melting system, spinning system and winding system

>Be able to independently set and control the temperature of each heating zone;

>Max temperature up to 350℃

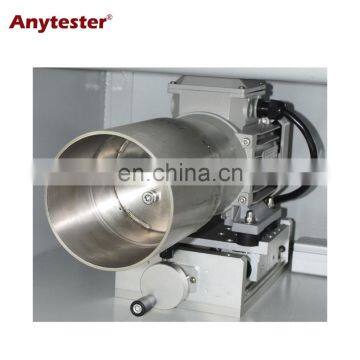

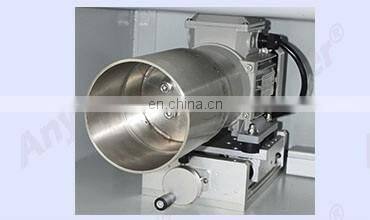

> Dischargeable winding drum with adjustable rotation speed
> Hand wheel to adjust the position of winding drum

>Organic glass window and illumination system, convenient to observe

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications

Packing & Delivery

Packaging
Size(cm)	73 (L) * 72 (W) * 168.5 (D)
Weight	260 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance, paid the balance before shipment
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
	West Union
Delivery Time	30~40 days after receiving payment for one container
