Small Scale Production Line High Speed Carding Machine for Chemical Wool Fiber
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Small Scale Drawing Frame Machine with Touch Screen
-
Small Diameter Circular Knitting Machine Lab Petite Knitting Machine
-
Electronic Yarn Twist Tester Suitable for Various Yarns
-
Small Lab Flat Circular Knitting Machine with Winder
-
China Supplier Automatic Circular Knitting Machine Yarn Textil Machine
-
Lab Melt Spinning Machine
Product Description
Product Description

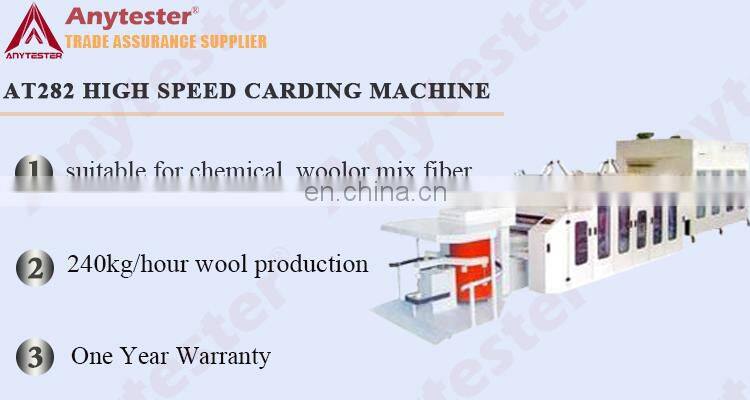

AT282 High Speed Carding Machine is the essential machine in fiber process line, which is suitable to prepare silver, it can be suitable for chemical fiber, wool fiber or mix fiber which length from 25mm to 127mm. .
Specification
Item | AT282 | ||
Applications | Suitable for wool and fiber short than 127mm | ||
Production (wool) | 240kg/hour | ||
Working width | 1200mm, 1500mm | ||
Power | 12kw | ||
Doffer diameter | φ650mm | ||
Doffer speed | 10~75rpm adjustable | ||
Cylinder diameter | Φ770mm | ||
Cylinder speed | 400rpm adjustable | ||
Licker-in diameter | Φ250mm | ||
Licker-in speed | 600rpm | ||
Output sliver count | 7~20 g/m | ||
Output speed | 200meter/min | ||
Drafting ratio | 32~140 | ||
Install space | 1.2m machine | ||
1.5m machine | |||
Power supply | |||
Machine weight | |||
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
