MMO tubular anode for cathodic protection Iridium-tantalum coated titanium Disk anodes for cathodic protection

We are only focused on produce the perfect titanium anode and titanium electrode assembly.

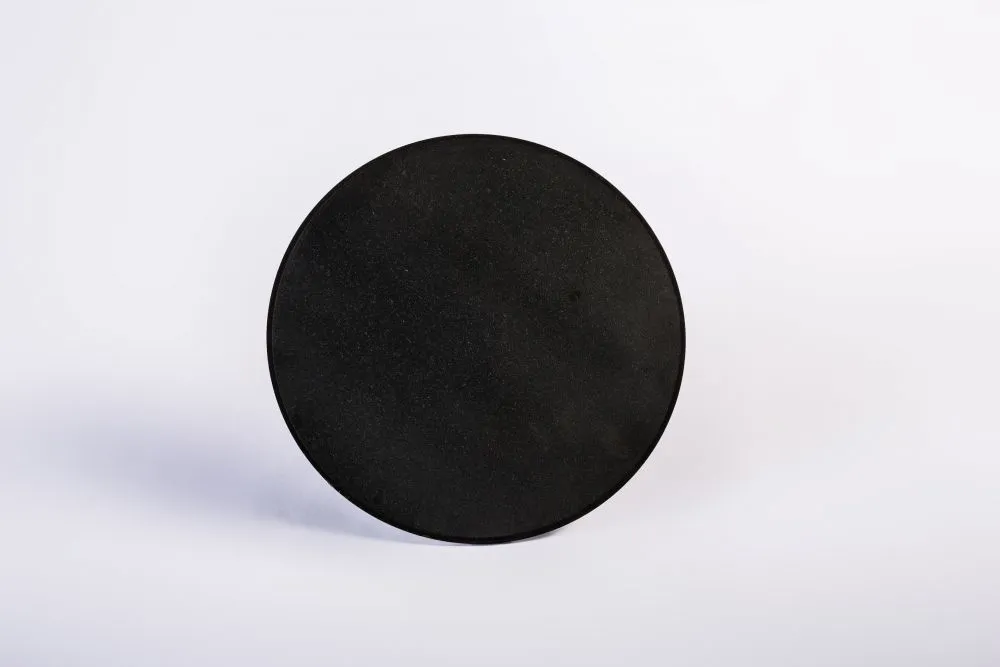

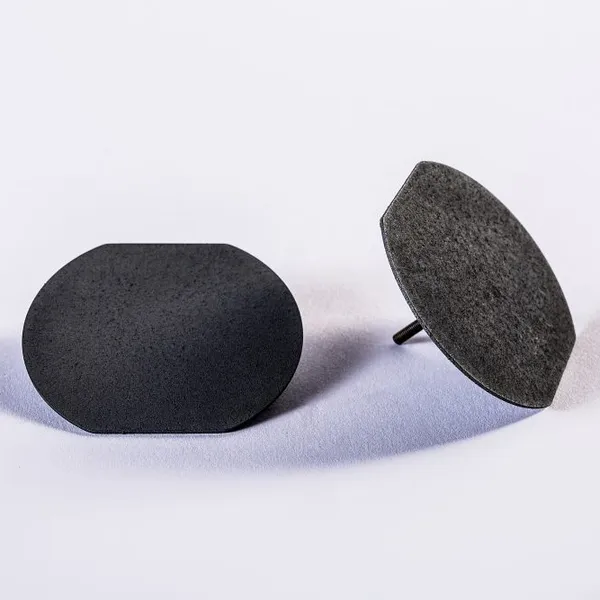

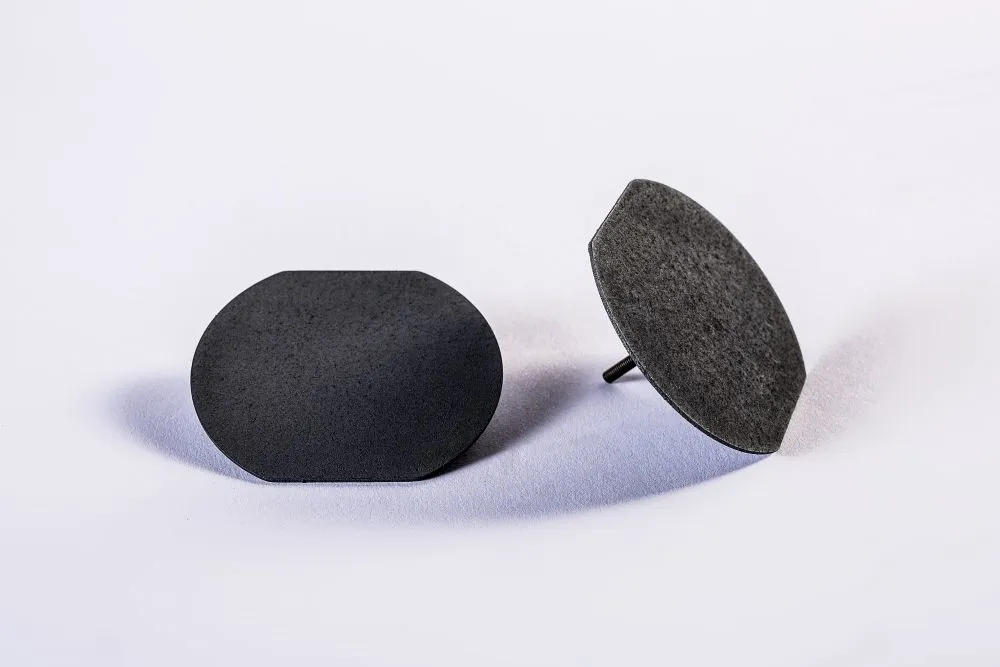

MMO Titanium Disk Anodes for Cathodic Protection

In the applied current cathodic protection, the commonly used

auxiliary anodes include graphite, lead-silver alloy, high silicon cast iron, titanium platinum-plated, niobium-coated platinum and mixed

metal oxide (MMO) anodes, etc. .

Application characteristics of MMO titanium

disc anode

1. The anode uses precious metal mixed oxide formula, high electrostatic activity, and belongs to the insoluble anode;

2. Long service life, in the normal use of the basic no maintenance;

3. High current efficiency, compared with graphite anode, low energy consumption;

4. After the coating loses activity, the matrix can be used repeatedly. Our company provides anode repair coating technical services.

In practice, cathodic protection technology to the hull coating layer, can make the ship for economic and effective protection, instant hull

coating layer defect and corrosion, anode under the action of impressed current cathodic protection MMO, can prevent wounds from corrosion, prolong the service life of ship coating layer, protect the hull.

Substrate Material : TA1/TA2 Titanium Disk,

Coating type: Ruthenium - Iridium - tantalum -Iridium - plated platinum

Platinum iridium and other mixed oxides

Features and advantages of titanium anodes for cathodic protection made by our company

1）Substrate material composition testing

2）Process inspection (machine processing size, sandblasting particle size, pretreatment surface condition, etc.)

3) Finished product testing (reinforced life testing, coating adhesion testing, coating thickness testing, etc.)

(4) testing standards: NACETM0108-2008, testing conditions: 1mol/l Na2SO4, 10000A/m2, temperature: 30±5°C

Note: According to the customer's requirements, other third-party quality testing projects can be carried out
