Help CenterDeNora LIDA MMO Tubular Anode
Related Products
Specifications
DeNora LIDA Tubular Anodes is well know brand for MMO anodes.LIDA® Tubular Anodes are designed for application in:
-
Groundbeds
Deep
Shallow Vertical
Horizontal
Open Hole
Marine -
Marine
Sea Water
Brackish Water
Mud - Freshwater
| Anodes | Anode Strings |
| ELTECH LIDA® tubular anodes are titanium tubes with a mixed metal oxide coating. The mixed metal oxide is a crystalline, electrically-conductive coating that activates the titanium and enable is to function as an anode. The mixed metal oxide anode has an extremely low consumption rate, measured in terms of milligrams per ampere-year. As a result of this low consumption rate, the tubular dimensions remain nearly constant during the live of the anode - providing a consistently low resistance anode. Whether operating in soil, freshwater, mud or sea water, ELTECH LIDA® mixed metal oxide coatings demonstrate very high chemical stability - even in environments with very low pH values. Unlike other impressed current anodes, the ELTECH LIDA® coatings are not affected by the generation of chlorine. |

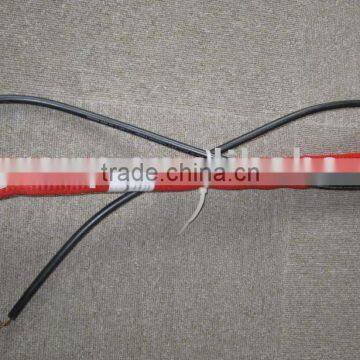

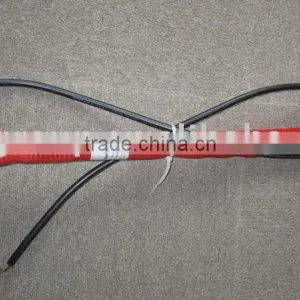

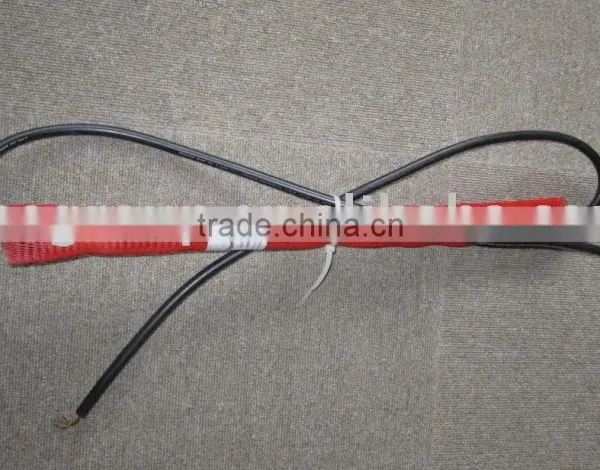

A LIDA® "anode string" is comprised of electrical cable threaded through one or more tubular anodes. Electrical connection between the anode and cable is via a patented, mechanical crimping process. The crimp connection is likewise utilized to seal the anode around the cable at both ends. Since only a single cable lead protrudes from the hole, the junction box is eliminated when using a LIDA® string - reducing the cost of materials and labor. String assemblies are also available in a looped configuration with two tails, or as multiple, staggered strings for system redundancy and maximum current distribution throughout the groundbed. Like any impressed current anode, proper groundbed design is paramount to optimum, low resistance performance. ELTECH Systems Corporation recommends the use of quality, conductive, carbonaceous backfill, a vent pipe and Ventralizers, suitable cable, and good design practices and understanding. |
