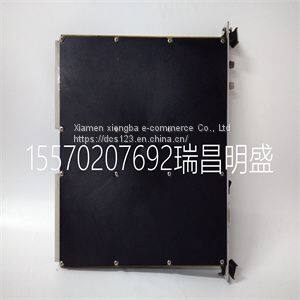

Help CenterModule Spare Parts 5501-470
Related Products
Focus on DCS, PLC, robot control system and large servo system.
Main products: various modules / cards, controllers, touch screens, servo drivers.
Advantages: supply of imported original products, professional production parts,
Fast delivery, accurate delivery time,
The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands
| 5501-470 |
216DB61 • 8 outputs for two-pole control of auxiliary tripping relays • Monitored output amplifiers • 16 digital inputs for the signals from the input auxiliary relay assembly (two each can be used to externally enable and block tripping respectively) • Activated outputs and inputs indicated by LEDs • Front space requirements: one rack division. Auxiliary DC supply unit 216NG61, 216NG62 and 216NG63 • Versions for 36 to 312 V DC input • Outputs 24V DC, 150 W • Short-circuit and overload-proof outputs • Parallel connection to increase rating • Parallel connection for redundancy (2 outputs) • Space requirement: 3 rack divisions. All the REG216 protection functions operate with sampled primary system voltages and currents. The sampling rate of the analog Numerical Generator Protection REG216 / REG216 Classic 1MRB520004-Ben Page 6 Construction (cont´d) ABB Switzerland Ltd Power Technology Systems input units is 12 times per period at rated power system frequency with a dynamic range of 15 bits. All further signal processing takes place digitally. The protection functions are therefore universally applicable, highly accurate and have excellent long-time stability. DC components and harmonic contents are efficiently suppressed by digital filters to avoid disturbance. The tripping logic for the internal protection functions (earlier a diode matrix), is software-controlled in REG216. Setting and control The protection system is set and controlled using a personal computer connected to it via a serial interface. Operation of the console is menu-assisted and permits: • Setting of parameters and recording of the settings • Display of measured values • Display of events, their acknowledgment and printout • Disturbance recording. Windows HMI A new Windows-based setting tool CAP2/ 316 is available since the Firmware version V5.2. This Software runs only under the following operating systems: • WINDOWS NT 4.0 • WINDOWS 2000 • WINDOWS XP ≥6.0 The perfect tool for engineering, testing, commissioning and maintenance personnel can be used for ON-LINE or OFF-LINE programming. For each protection function a visible tripping characteristic is displayed depending on the setting values, e.g. the underimpedance function shown below. There is a library with all protection functions necessary for generator and transformer protection. Easy activation of a protective function by “drag & drop” technology
