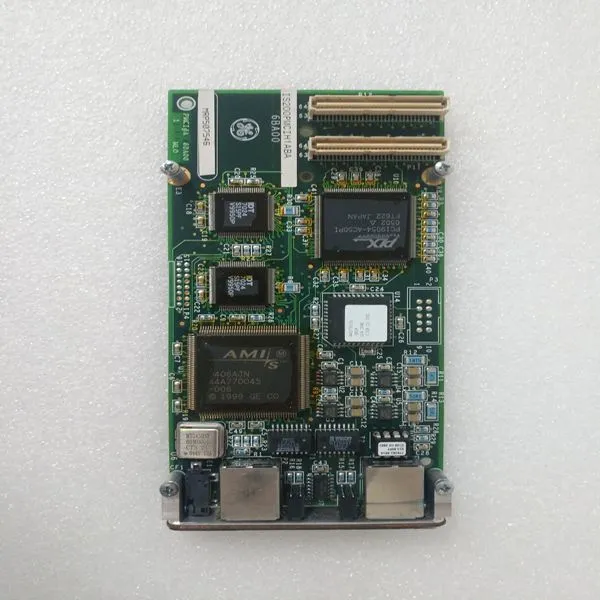

Help CenterIS200PMCIH1ABA
Related Products
Brand:GE
Type: IS200PMCIH1ABA
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
The drive will fault with a following error fault. The following error fault, and thus PosErrorMax, are only active when OpMode is Position. Default value is maximum value. SelSFDParam SFD or Drive Determines whether the SFD motor parameters or drive setup values are used for the following parameters: KVP Velocity loop proportional gain. KIP Current loop proportional gain. DPoles Drive poles. I2TF0 Response speed for motor transient thermal protection. I2TTrip Fault trip level for motor transient thermal protection. ILmtPlus Sets the drive maximum Iout based on motor IPEAK. ILmtMinus Sets the drive maximum Iout based on motor IPEAK. SFDSpan Span or No Span Sets how the drive handles single sample communication errors with the SFD. Span interpolates SFD feedback position for isolated single sample communications errors. No Span faults the drive on any SFD communication error. Recommended (default) setting is Span. 0 - No Span 1 - Span SWClrFault Not Clear or Clear This parameter will clear the fault logic. 0 - Not Clear (default) 1 - Clear
Status And Control Variables AuxFBComAng +180° to -180° (Option Card Only) Supported over SynqNet. This register is the value of the commutation position from the AFB interface. It is used to generate the commutation angle in the drive. AuxFBEnDatFlt Fault, No Fault (Option Card Only) Supported over SynqNet. This bit indicates that the Aux Feedback interface encountered an error when trying to read data from an EnDat device. Sources of error are: 1 - EnDat device recover timeout from last transaction. 2 - EnDat device calculation timeout. 3 - EnDat CRC fault. AuxFBHallFlt Fault, No Fault (Option Card Only) Supported over SynqNet. This bit indicates the AuxFB Halls are in an illegal state of either all ones or zeros. 0 - No Fault 1 - Fault AuxFBPTCFlt Fault, No Fault (Option Card Only) Supported over SynqNet.
This bit indicates the AuxFB PTC has generated a fault. 0 - No Fault 1 - Fault AuxFBSCDFlt Fault, No Fault (Option Card Only) Supported over SynqNet. This bit indicates that the amplitude of the sum of the sine and cosine signals is not with in +/-30% of the nominal 1.0 Vp-p. 0 - No Fault, amplitude in range. 1 - Fault, amplitude not with ±30%. CmdIn (-DIpeak to +Dipeak) or (–18,310 to +18,310 rpm) CmdIn is the value of the output of the command processing block. This variable's units depend on whether the drive is in current or velocity control mode. See OpMode for control mode information. DInp1 Inactive, Active Indicates the state of the drive’s enable input on the Command I/O connector (J4). 0 - Active state, current flows in opto isolator input diode. 1 - Inactive state, no current flow. DInp2 Inactive, Active For SynqNet, see mpiMotorGeneralIn. Indicates the state of the hardware input DINP2 on the Command I/O connector (J4). 0 - Active state, current flows in opto isolator input diode. 1 - Inactive state, no current flow. DInp3 Inactive, Active Indicates the state of the hardware input DINP3 on the Command I/O connector (J4). 0 - Active state, current flows in opto isolator input diode. 1 - Inactive state, no current flow.
