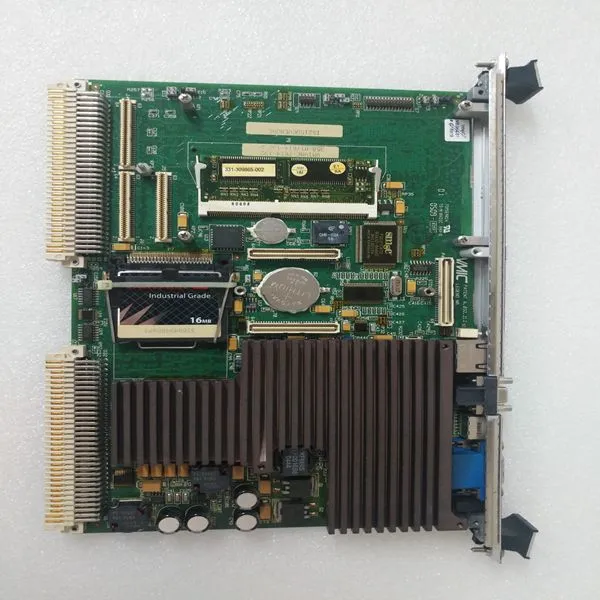

Help CenterVMIVME-7614-132 350-017614-132 D
Related Products
Brand:GE
Type: VMIVME-7614-132 350-017614-132 D
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
FaultCode Status Value This variable gives the fault status of the drive. The below table lists the possible fault states and gives the number of blinks that the drive’s front panel Status LED will blink to indicate the fault. See also ExtFaults for further specifics on a given fault. Blink Count Status Blink Count Status 1 Not Assigned 11 Hall Fault 2 Motor Over Temp 12 SFD Configuration Error 3 Drive Over/Under Temp 13 SFD Short 4 Drive I*t Too High 14 SFD Motor Data Error 5 Motor I*I*t Too High 15 SFD Sensor Failure 6 Optional Battery low 16 SFD UART Error 7 Bus Over Voltage 17 SFD Communication Error 8 Bus Under Voltage 18 Option card Watch Dog timeout 9 Motor l-l or l-n Short 19 Position error too large 10 Output Over Current 20 Open Card Fault FoldBack Normal, Foldback Indicates whether the drive is actively folding back the peak current limits because of excessive I*t. ITMode can be set to fault the drive on either excessive I*t or fold back. 0 - Not in fold back/Not asserting I*t fault. 1 - Fold back/I*t fault. HallInp 0-7 Decimal This variable reads back the state of the Hall inputs to the drive on the drive feedback connector. Input CW Input CU Input CV HallInp Value 1 1 1 7 1 0 1 6 1 1 0 5 1 0 0 4 0 1 1 3 0 0 1 2 0 1 0 1 Input Bit Description IN8 Hall A IN9 Hall B IN10 Hall C 0 0 0 0 HSInp1 Inactive, Active Indicates the state of the hardware input HSInp+, HSInp- on the Command I/O connector (J4). For OpMode = Position, PosCmdSrc = Step-Dir this input is the Step input. Input transitions from LED current to no LED current yields a step count while input transitions from no LED current to LED current yields no action. 0 - Active state, current flows in opto isolator input diode. 1 - Inactive state, no current flow. HSOT -50º C to 137.6º C Read only variable HSOT is the temperature at which the drive will generate a Heat Sink over temperature fault. Comparing HSOT minus ambient temp to HSTemp minus ambient temp can give an indication of the amount of head room from thermal overload that the drive has during normal operation.HSTemp -41.1º C to 125.8º C HSTemp reads back the heat sink temperature.
HSTemp determines how close the drive is to thermal shut down by comparing the temperature rise above ambient to the potential rise above ambient at the drive over temperature fault trip, which can be read as HSOT. IFB, IdFB -DIpeak to +DIpeak These variables read back the torque (IFB) and non-torque (IdFB) derated current values. IFB - Motor torque current. IdFB - Motor non-torque current. LogicVer 0 - 15 Decimal LogicVer gives the version number of the drive logic as a 4-bit unsigned integer. Versions are assigned sequentially and if necessary, the numbers wrap around (if there are more than 16 versions). Primarily indicates control logic hardware revisions. See variable VerLW for the control logic version. Model 0 - 31 Decimal Model is the base unit identity code for the drive. The only codes defined are in the chart below. Other codes are configuration errors.
