Product Description
Products Description
The full automatic quantitative liquid filling machine is designed for saving time on adjusting and testing machine,it can filling liquid or paste accurately by entering a certain filling volume.The PLC control method makes it easy to operate,the high speed working efficiency is ideal for medium or large scale production.It can work with the automatic capping machine and labeling machine to form a complete production line and realize high speed packaging work.
Application:
This machine is suitable for filling liquid and paste like juice,beverage,drinks,milk,makeup remover etc.It is widely used in drinks,cosmetics,daily chemical and pharmaceutical industries.
Model | JK-300 |
Voltage | 110/220V 50-60HZ |
Filling Range | 5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/ 1000-5000ml |
Filling Speed(base on water) | 25~40 bottles/min |
Filling Accuracy | ≤1% |
Conveyor size | 2000*100mm(L*W) |
Size of filling nozzle | OD15mm |
Size of air compressor connector | Φ8mm |
Power of whole machine | 1500W |

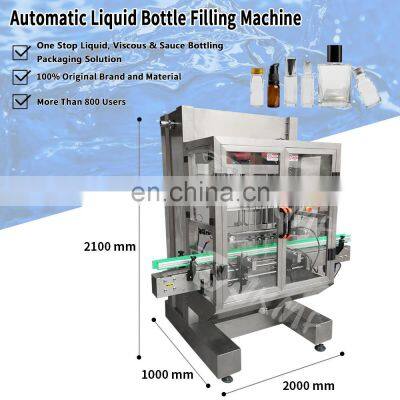

Machine size | 2000*1000*2100mm |
Gross weight/Net weight | 500KG |
Machine Features
1.Touch screen operation interface.
2.Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash.
3.The filling accuracy can reach ±1%.
4.The filling cylinder is ground, unique filling valve design, no leakage.
5.With no bottle no filling and automatic bottle stop function. 6.Design different positioning devices according to the actual situation of the bottle;
7.The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature sterilization.
8.PLC programmable control use Japan Mitsubishi.
9.Frequency converter adopts France Schneider
10.Pneumatic components adopt Taiwan Airtac.
11.Material contact parts are made of SUS304# stainless steel.
12.The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.
controlled according to production needs.The PLC panel makes it possible to set control panel language into other kinds of
language,please contact us for custom if you need this.
work,reduce the production error and improve working eficiency.

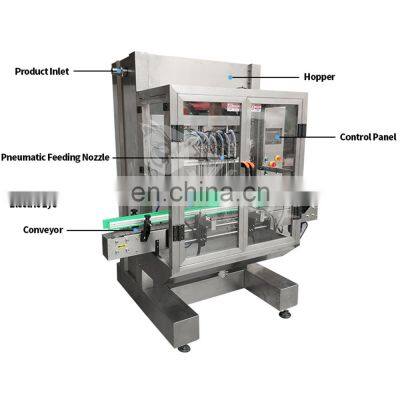

The pneumatic filling nozzle can ensure filling paste faster,it is with anti-dripping design which ensure the machine and production cleanliness.
transferred stably.The size of the conveyor is 2000mm*125mm.
We can customize the size according to your needs.
