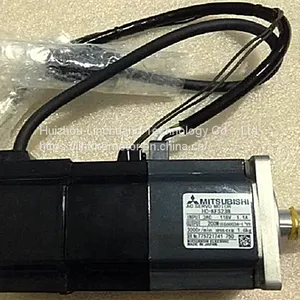

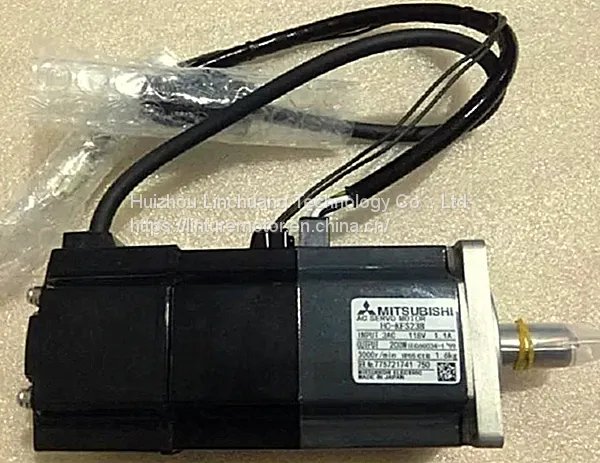

HC-MFS23B Mitsubishi With Electromagnetic Brake Type Servo Control

HC-MFS series servo motor torque characteristics

For servo motor 200V

Hc-mfs23 hc-mfs23k hc-mfs23b hc-mfs23bk Mitsubishi J2S series 3K rotation ultra low inertia / small capacity servo motor 200W type. Hc-mfs23 Mitsubishi J2S series 3K rotation ultra low inertia / small capacity servo motor hc-mfs23b with electromagnetic brake hc-mfs23k with keyway

Hc-mfs23 Parameter Description: 3000r / min, 200W type, ac200v

Hc-mfs23 is a Mitsubishi mr-j2s series 3000r / min series ultra-low inertia and small capacity servo motor. Hc-mfs23b is a type with electromagnetic brake. The difference between hc-mfs23k and hc-mfs23 is that the former is a keyway, and the others are the same!

Mitsubishi servo motor hc-mfs23 product specification:

[corresponding servo amplifier model] mr-j2s-20a, mr-j2s-20a1, mr-j2s-20b, mr-j2s-20b1

MR-J2S-20CL,MR-J2S-20CL1,MR-J2S-20CL,MR-J2S-20CL1

[power supply equipment power (kVA)] 0.5

[continuous operation characteristics]

. rated output power (W): 200

. rated output torque (n · m): 0.64

[maximum output torque (n · m)] 1.9

[rated speed (R / min)] 3000

[maximum speed (R / min)] 4500

[allowable instantaneous speed (R / min)] 5175

[power change rate at continuous rated torque output (kW / s)] 46.02

[rated current (a)] 1.5

[maximum current (a)] 5.0

[motor moment of inertia J (* 10 to the minus fourth power kg · m square)]

. HC-MFS23:0.088

. HC-MFS23B:0.136

[recommended ratio of load / motor moment of inertia (Note 2)] max. 30 times

[speed / position detector] 17 bit encoder (encoder / servo motor rotation: 131072p / Rev)

[structure] totally enclosed self cooling (protection grade: IP55)

[weight]

. HC-MFS23:0.99kg

. HC-MFS23B:1.6kg
