Product Description
Energy saving wet dry gold ore grinding ball mill machine price
Gold ore grinding dry ball mill application
Main technical parameters of gold ore grinding dry ball mill machine
Model | Cylinder rotating (r/min) | Grinding media loading (t) | Feed size (mm) | Discharge size (mm) | Capacity (t/h) | Powder (kw) | Weight (t) |
Φ900x1800 | 38 | 1.5 | ≤ 20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
Φ900*3000 | 38 | 2.51 | ≤ 20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
Φ1200*2400 | 32 | 3.8 | ≤ 25 | 0.075-0.6 | 1.5-4.8 | 30-45 | 12.5 |
Φ1200*3000 | 32 | 5 | ≤ 25 | 0.074-0.4 | 1.6-5 | 30-45 | 12.8 |
Φ1200*4500 | 32 | 7 | ≤ 25 | 0.074-0.4 | 1.6-5.5 | 55 | 13.8 |
Φ1500*3000 | 27 | 8 | ≤ 25 | 0.074-0.4 | 2-5.8 | 75-90 | 17 |
Φ1500*4500 | 27 | 14 | ≤ 25 | 0.074-0.4 | 3-6.5 | 90-110 | 21 |
Φ1500*5700 | 27 | 15 | ≤ 25 | 0.074-0.4 | 3.5-8 | 110-132 | 24.7 |
Φ1830*3000 | 24 | 11 | ≤ 25 | 0.074-0.4 | 4-10 | 132-180 | 28 |
Φ1830*6400 | 24 | 23 | ≤ 25 | 0.074-0.4 | 6.5-10 | 210 | 34 |
Φ1830*7000 | 24 | 25 | ≤ 25 | 0.074-0.4 | 7.5-17 | 210-245 | 36 |
Φ2200*5500 | 21 | 30 | ≤ 25 | 0.074-0.4 | 10-22 | 370 | 48 |
Φ2200*6500 | 21 | 31 | ≤ 25 | 0.074-0.4 | 14-26 | 380 | 50 |
Φ2200*7500 | 21 | 33 | ≤ 25 | 0.074-0.4 | 15-29 | 475 | 56 |
Φ2400*7000 | 21 | 39 | ≤ 25 | 0.074-0.4 | 16-33 | 475 | 69 |
Φ2400*11000 | 21 | 51.5 | ≤ 25 | 0.04-0.08 | 16-35 | 630 | 99 |
Φ2700*3600 | 21 | 39 | ≤ 25 | 0.074-0.4 | 16-29 | 475 | 74 |
Φ2700*4500 | 21 | 43.5 | ≤ 25 | 0.074-0.4 | 20-35 | 500 | 80 |
Main features of gold ore grinding ball mill
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Mine ball mill in a high automatization and intellectualization, no pollution.

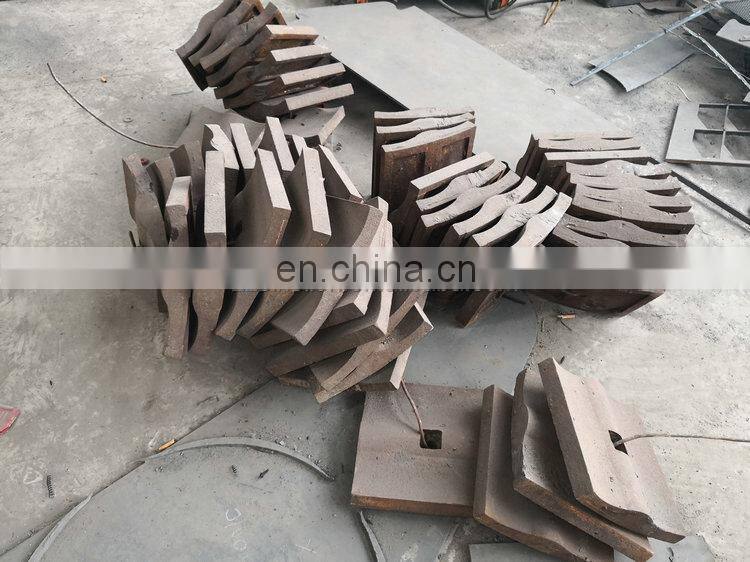

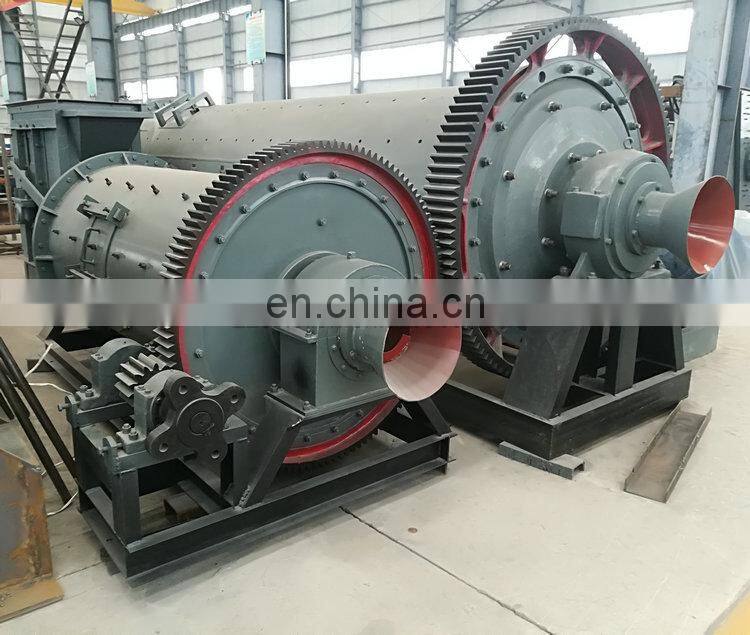

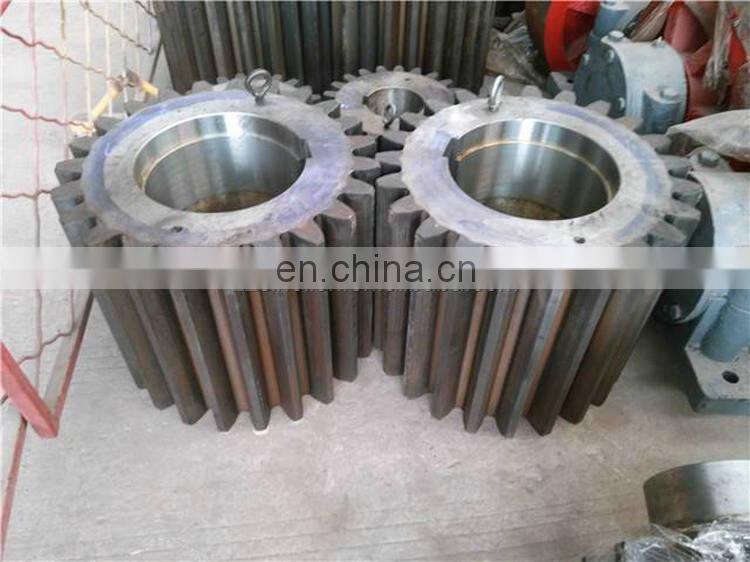

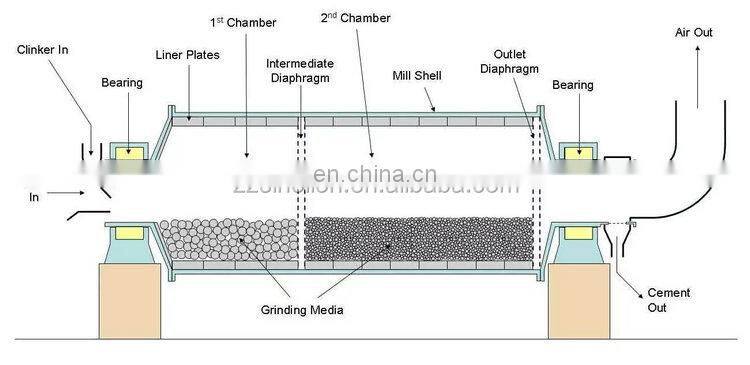

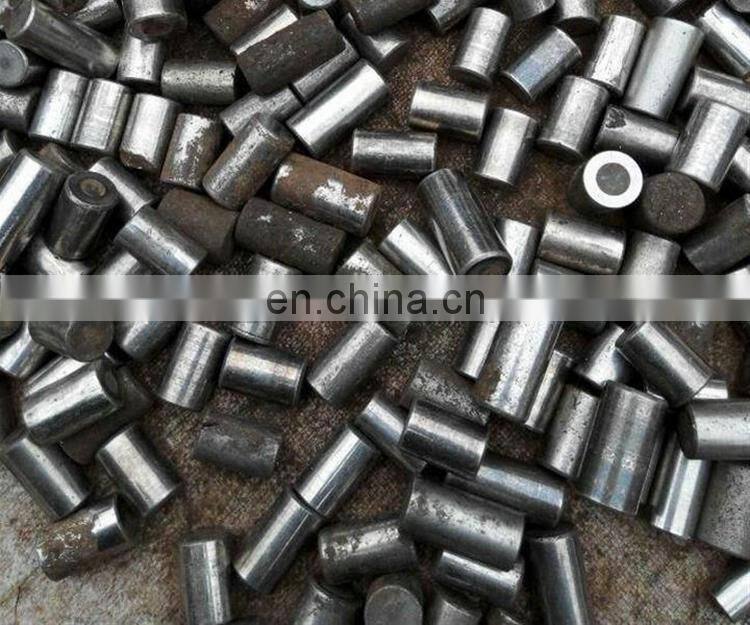

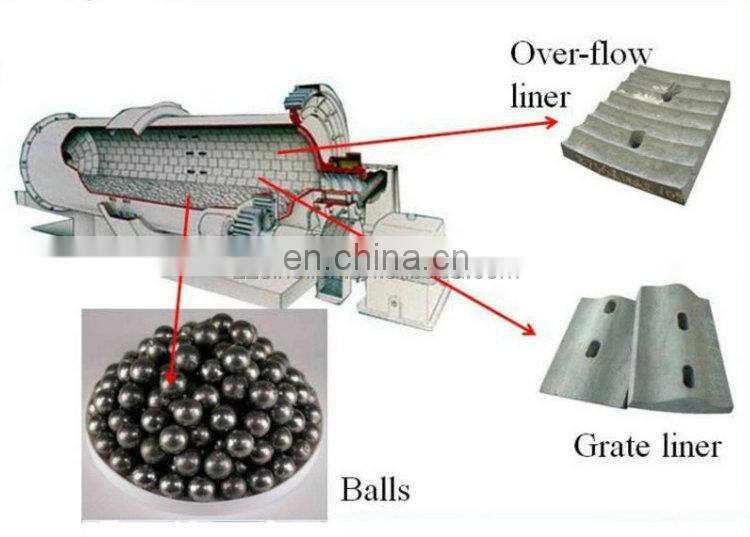

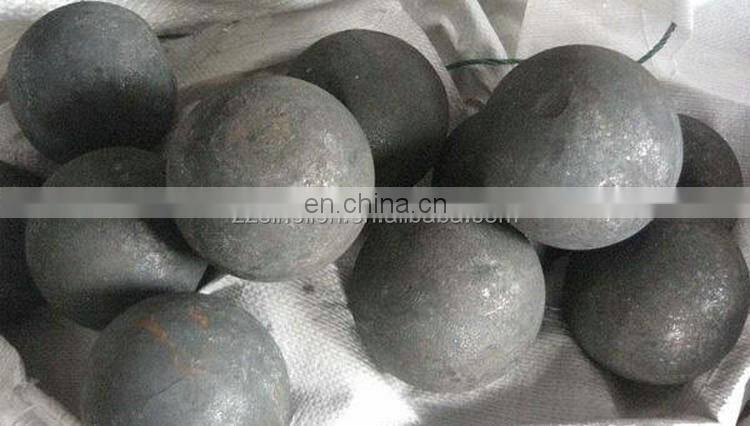

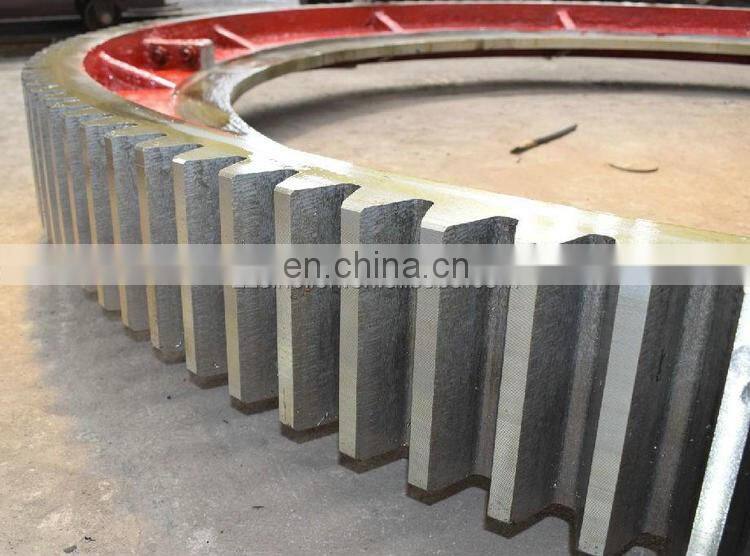

The gold ore grinding ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly. Always provide spare parts for a long term.

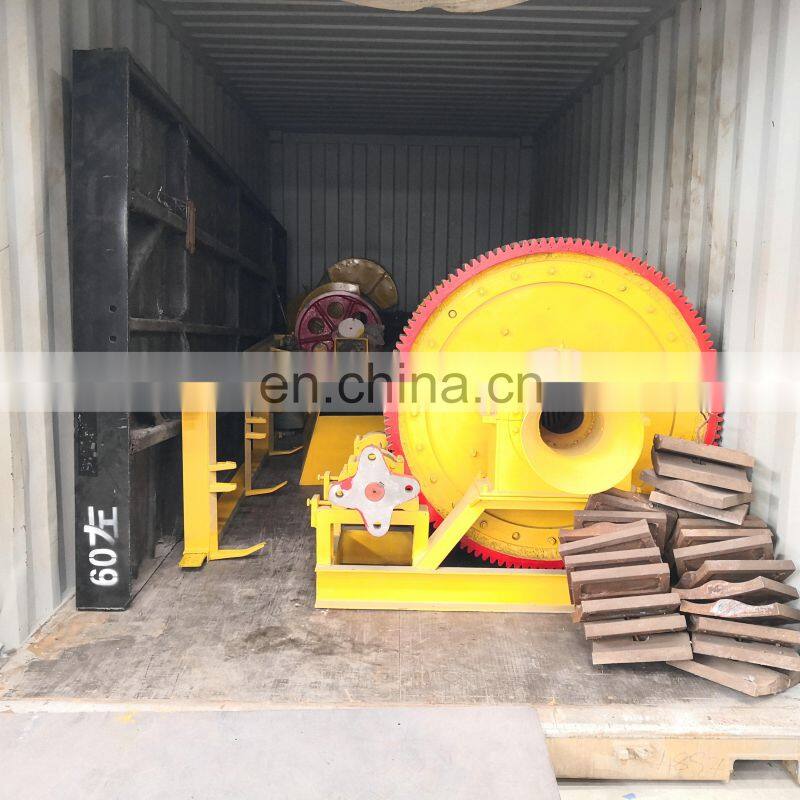

Packaging of gold ore grinding ball mill | ||
Size | Depend on models | |
Weight | Depend on models | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Contact us
QQ:2452772891
Wechat: +86-18503831637
Whatapp: +86-18503831637
Add: No. 6, Cuizhu Street, High-Tech Industrial Zone, Zhengzhou, Henan, China (Mainland)
