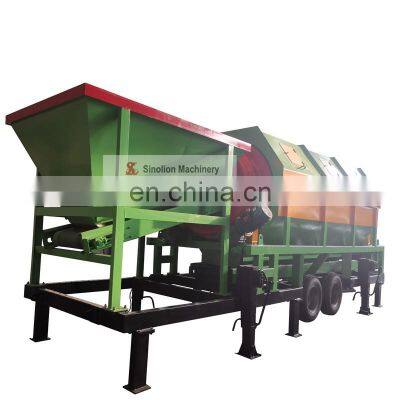

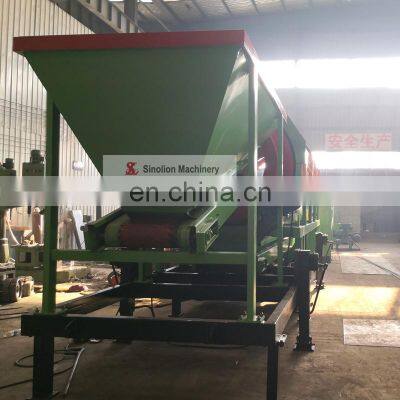

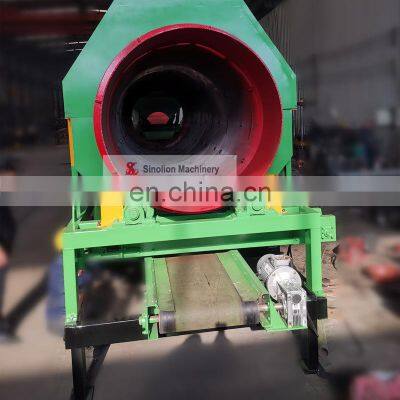

Automatic Urban Garbage Sorting Plant Hot Sale Waste Garbage Recycling Line
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1994
Annual Export Value:
US$5 Million - US$10 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale High Quality Garbage Sorting Tumbler Screening MachineNegotiableMOQ: 1 -
MSW Sorting and Recycling Line,waste Sorting Trommel Screen MachineNegotiableMOQ: 1
-
Industrial Compost Sifter Drum Roller Trommel Screen Sieving Machine /compost Rotary Drum ScreenNegotiableMOQ: 1
-
City Domestic Garbage Screening Equipment Waste Recycling Sorting MachineNegotiableMOQ: 1
-
Rotary Shaftless Trommel Screening Garbage Machine for SaleNegotiableMOQ: 1
Automatic waste management sorting plant hot sale garbage recycling machine
Product Description
Trommel Vibrating Screen widely used for alluvial gold sieving and graded washing.It provides a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.

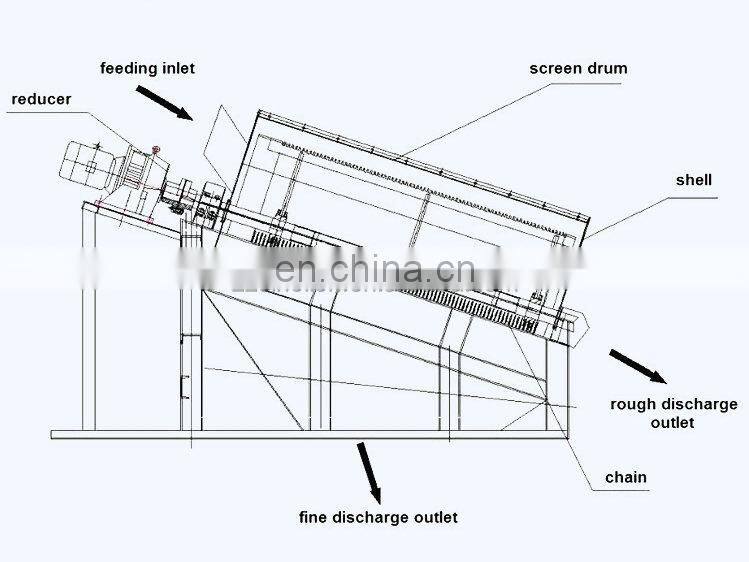

Trommel screen working principle:
• Trommel screens are constructed of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
• Downstream process equipment can be in various forms such as centrifugal Concentrator, spirals, jigs etc.
• After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Application:munlcpal solid waste,construction waste,stone,compost,wood ships,sawdust,soil,coal,river sand,refractory materials,chemiacal,etc
Technical Parameters
| Model | Capacity (t/h) | Motor (kw) | Drum size (mm) | Feed Size (mm) | Overall size (mm) | Weight (KG) |
| GTS-1015 | 5-20 | 3 | 1000×1500 | less than 200 mm | 2600×1400×1700 | 2200 |
| GTS-1020 | 10-30 | 4 | 1000×2000 | less than 200 mm | 3400×1400×2200 | 2800 |
| GTS-1225 | 20-80 | 5.5 | 1200×2500 | less than 200 mm | 4200×1500×2680 | 4200 |
| GTS-1530 | 30-100 | 7.5 | 1500×3000 | less than 200 mm | 4500×1900×2820 | 5100 |
| GTS-1545 | 50-120 | 11 | 1500×4500 | less than 200 mm | 6000×1900×3080 | 6000 |
| GTS-1848 | 80-150 | 15 | 1800×4800 | less than 200 mm | 6500×2350×4000 | 7500 |
| GTS-2055 | 120-250 | 22 | 2000×5500 | less than 200 mm | 7500×2350×4800 | 9600 |
| GTS-2265 | 200-350 | 30 | 2200×6500 | less than 200 mm | 8500×2750×5000 | 12800 |
Packaging & Shipping
Case
