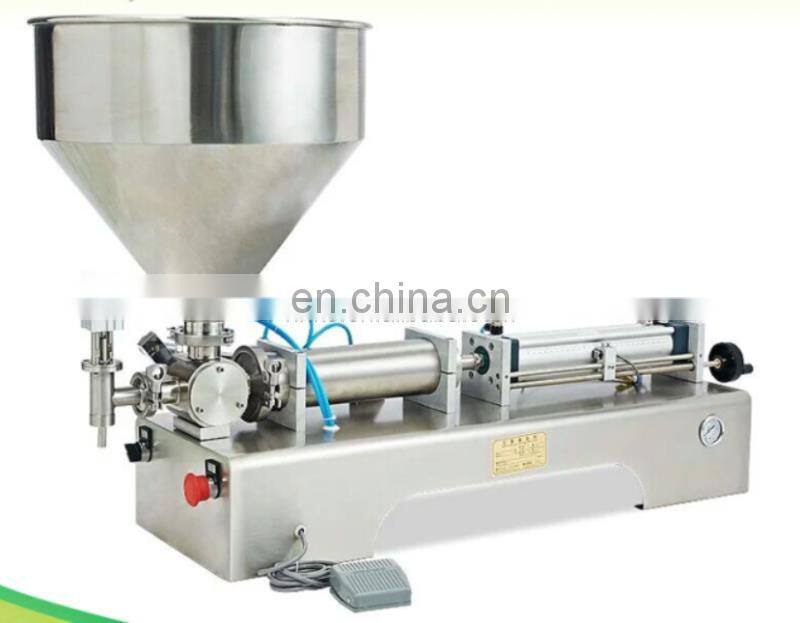

Liquid Detergent Shampoo Cosmetic Semi Automatic Paste Filling Machine

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Toothpaste Lotion Ketchup Pepper Sauce Filling Machine/Paste filling machine

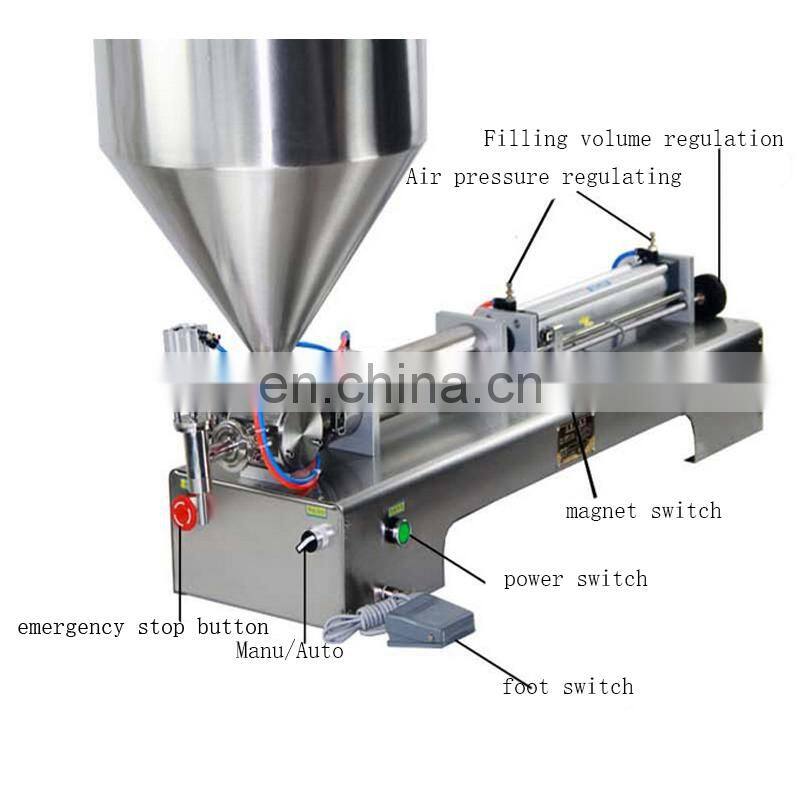

1. The machine is driven by compressed air control, so it is especially suitable for use in explosion-proof and humid environments, with high safety;

2, due to pneumatic control, and the use of mechanical positioning, so high filling accuracy, accuracy can be controlled at ± 0.5%;

3, the use of screw, counter, so that the amount of filling adjustment accuracy, and can be intuitively embodied in digital form;

4,Professional filling of rotary valve with small particles of sauce material;

5, the machine is 304 stainless steel, the material contact parts are made of 304/316 stainless steel, in line with GMP requirements;

6, the filling head with anti-drawing, anti-drip device, filling mouth with two sizes;

7, filling speed, can be filled 30 times per minute, with 500ml of water as an example, the filling accuracy is ± 0.5%.

Technical Parameters:

Model	HX-500N	HX-1000N	HX-3000N	HX-5000N
Filling speed	10-35n/min (taking water as an example)
Filling range	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±0.5%
Dimensions	950(L) × 280(W) ×300(H)mm	1150(L) ×280(W) ×300(H)mm	1130(L) ×350(W) ×358(H)mm	1330(L) ×350(W) ×368(H)mm
weight	22Kg	25Kg	38Kg	51 Kg
