Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line

Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line photo-1
Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line photo-2

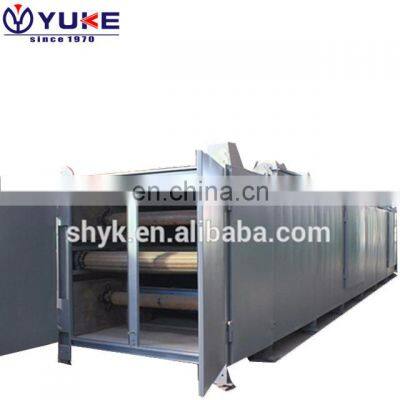

Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line photo-3
Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line photo-4
Factory Sale Charcoal Briquette Mesh Belt Dryer Machine for Briquetting Line photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
2006
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Mesh belt dryer Application

Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: cassava slice, fruits, vegetables, herb, pepper, potato chips, grain straw etc. It has the features of high efficiency, high-yield, high evaporation intensity, standardization of production and the capacity could be increased according to the number of segments. The main types of heating include electric heating, steam heating and hot air heating.

The main technical parameter

Models
YKBD600
YKBD800
YKBD1000
YKBD1200
YKBD1600
YKBD2000
YKBD2400
YKBD3000
Belt Wldth (mm)
600
800
1000
1200
1600
2000
2400
3000
Length of drying section(m)
6-12
6-12
6-16
8-16
8-22
10-26
12-30
12-40
Length of feeding section(m)
1
1
1
1
1
1.5
1.5
2
Length of driving section(m)
1
1
1
1
1
1.5
1.5
2
Drying area(m²)
3.6-36
4.8-48
6-80
7.2-96
12.8-105.6
20-260
28.8-360
36-600
Layer No.
1-5
Space between layers
(mm)
400-600
Loading capacity(kg/m²)
90-200
Operating temperature(℃)
Carbon steel≤400
Stainless Stell≤600
Evaporation intensity(kg/㎡*h)
5-20
Heat source
Hot air,electricity and steam
Operating speed(m/min)
0.06-1
Power(kw)
1.1-2.2
1.1-2.2
1.1-2.2
1.1-3
1.5-3
1.5-4
3-7.5
5-11
Auxiliary equipment
Conveyor,air heater,dust collector,induced draft fan,etc.

Main Features

 Belt dryer is also used for drying different kinds of briquettes such as coal briquettes, mineral briquettes etc. It is also one of the most important equipment in the briquette production line. It has better drying effect; it could meet the demands of the customers who need to dry the briquettes to a lower moisture level and it could be designed according to the customer requirements.

Detailed Images

Machine Parts

Name: Mesh belt

Brand: YUKE

Original: SAHNGHAI, China(Mainland

Material be convey by the belt

Main Features

Name:  Frame
Brand: YUKE
Original: SHANGHAI, China(mainland)
Although it occupy of big footprint, it has high drying effciency..

Certifications
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

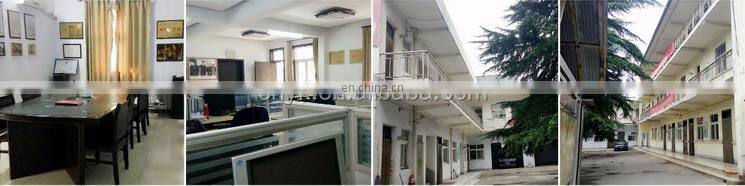

Our Company

Company Detail

Shanghai YUKE Industrial CO.Ltd, is a trustworthy and speciallist designer and manufacturer of briquetting machine, briquetting press, industrial dryer.etc.
Following strictly the standards of ISO9001, we have established a perfect quality test system for products and ourselves.now our prouducts have obtained the certificates of CE, GOST,and other international authority bodies.
YUKE adheres to concept that "Love our customer,Create weath and fun to them".

Our Customer

Customer Detail

Owing to our powerful sales team and overseas market development team, YUKE products have been a national hot sale, and exported to various countries and regions around the world such as India, Malaysia, Vietnam, Philippines, Indonesia, Thailand, Russia, Afric, South America, Europe, etc.

Related Products

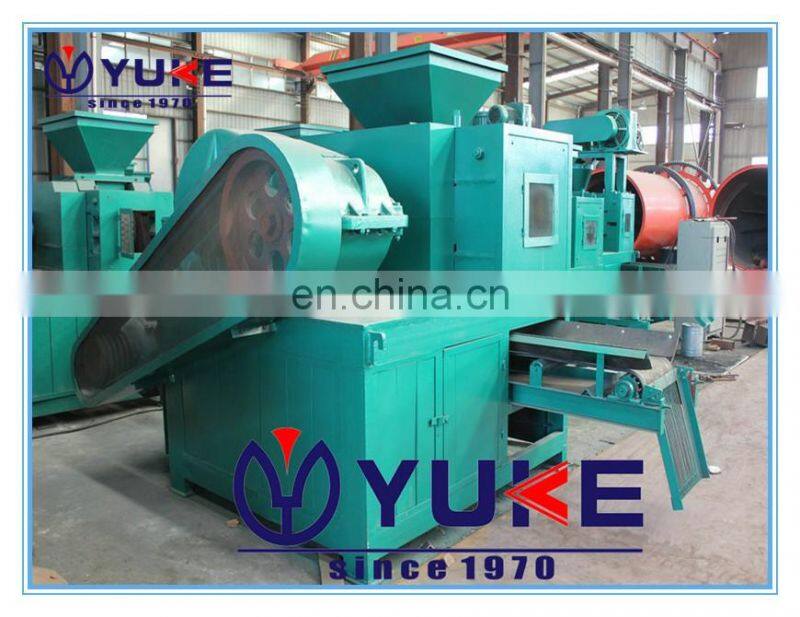

Briquette machine

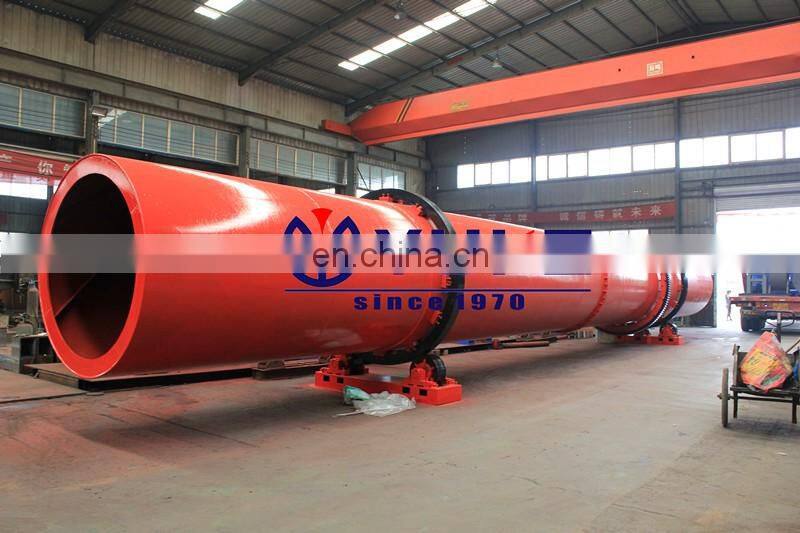

Rotary dryer
