Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Good Quality Spiral Sand Washing Machine For Washing Iron Ore Silica Sand Minerals Ore
Good Quality Spiral Sand Washing Machine For Washing Iron Ore Silica Sand Minerals Ore
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Recovery Gold Centrifugal Concentrator for Gold Mineral SeparationNegotiableMOQ: 1 -
50-500tph Wheel Type Sand Washer Sand Cleaning Machine for Sand Washing PlantNegotiableMOQ: 1
-
Hot Sale Wheel Bucket Type Sand Washing Machine for Fine Sand RecoveryNegotiableMOQ: 1
-
Small Gold Mining Plant From Gold Equipment ManufacturerNegotiableMOQ: 1
-
High Quality Wheel Bucket Type Washing Sand Machine Wheel Washing MachineNegotiableMOQ: 1
Product Description

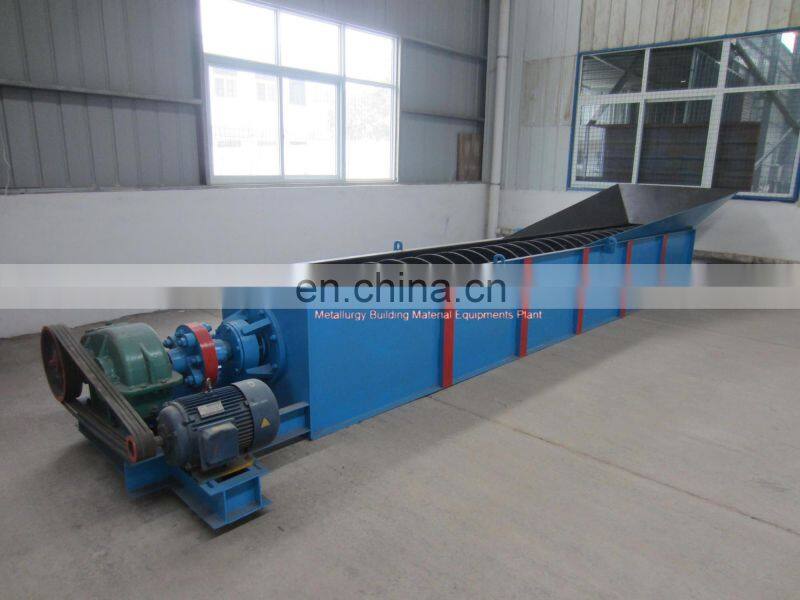

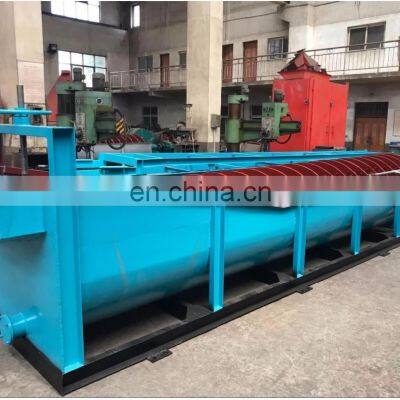

The spiral sand washing machine is a kind of sand washing machine. It mainly stirs the sand and gravel material through the screw device in the equipment, so that the soil and water in the sand and gravel material are mixed and discharged from the outflow port on the equipment. Under the action of the screw device, it is gradually screened and discharged from the discharge port at the top, thereby realizing the cleaning and screening effect of the gravel material.
The spiral sand washing machine is suitable for washing, grading and impurity removal in metallurgy, building materials, hydropower and other industries. It is used for washing fine and coarse-grained materials. It is suitable for sand for construction and gravel for road construction. The spiral sand and stone washing machine has low power consumption and high washing degree. Good sealing structure, fully enclosed transmission device, and adjustable weir plate ensure the characteristics of high efficiency, durability, good cleaning and dehydration effect, and the stability of fine-grained products.

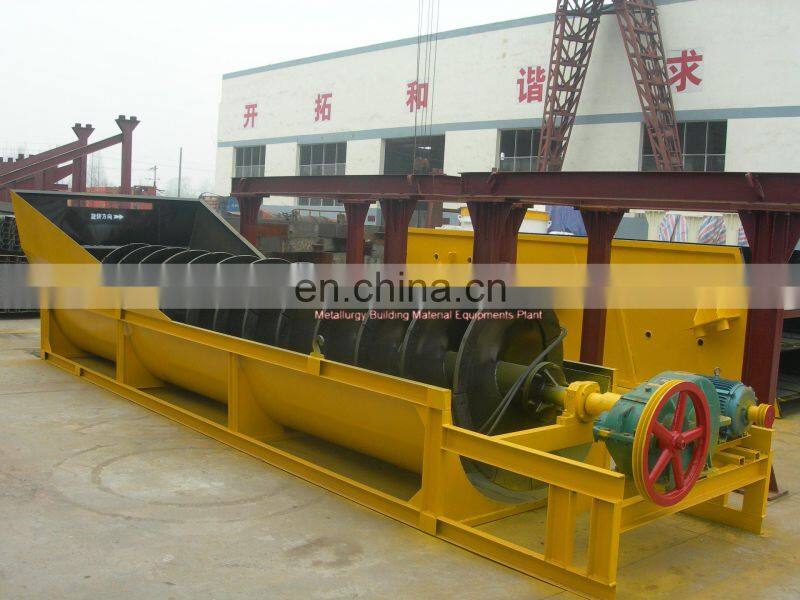

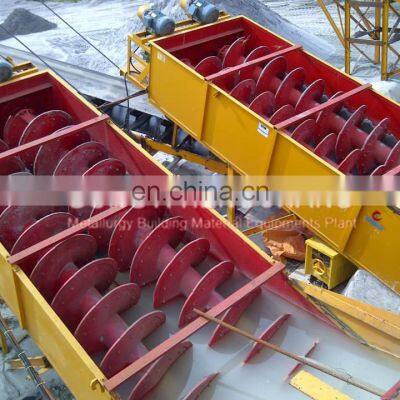

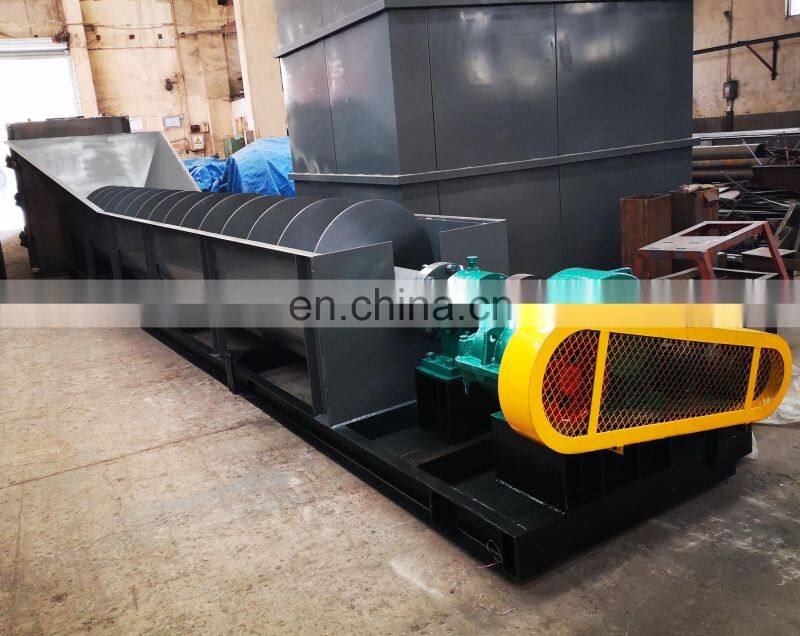

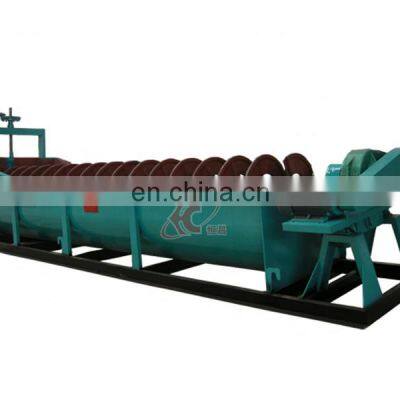

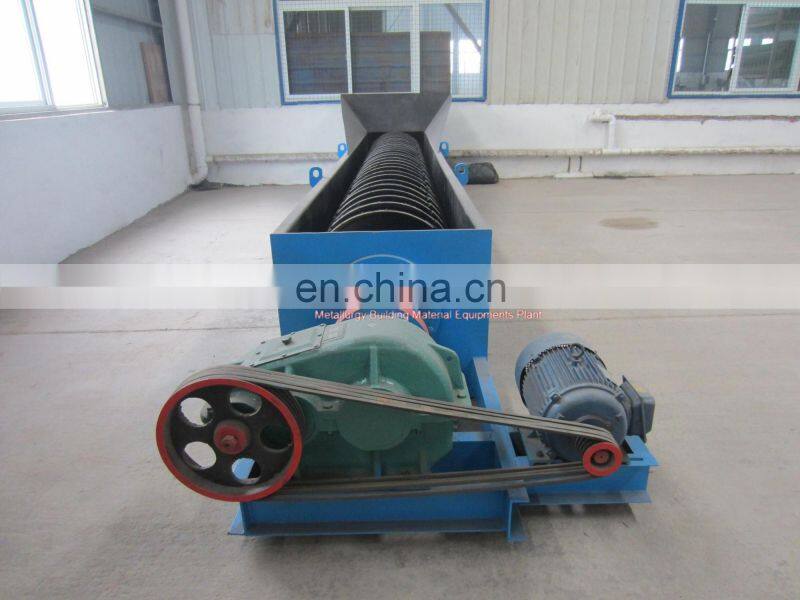

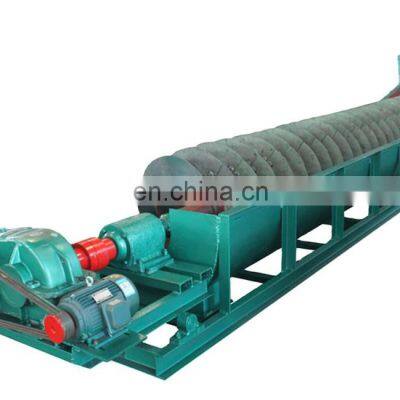

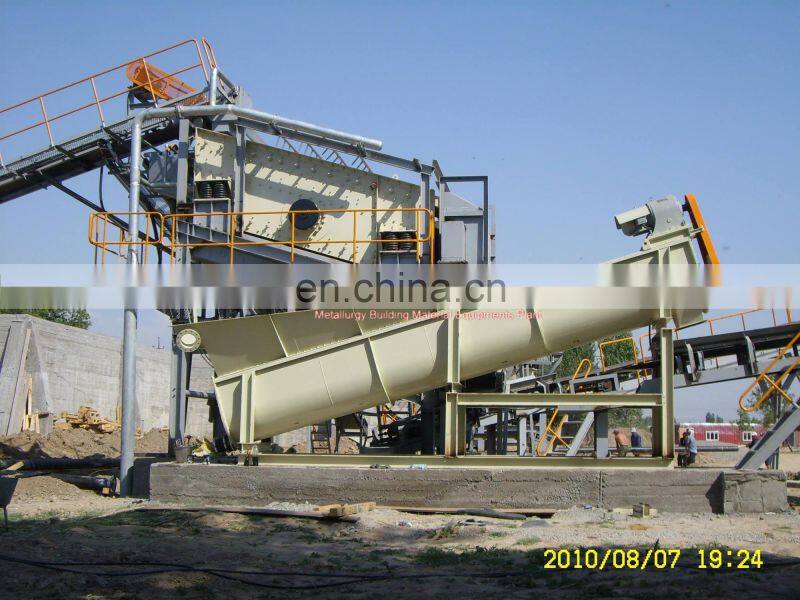

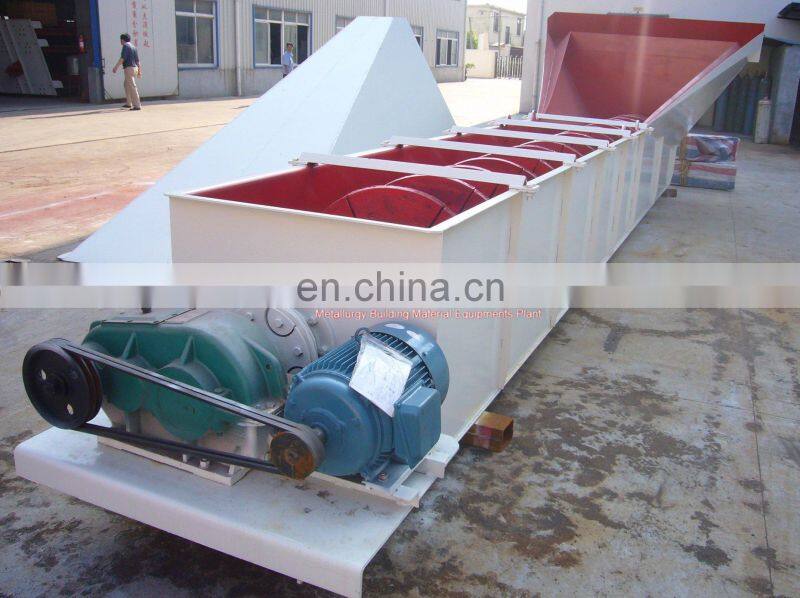

Details Images
Working principle

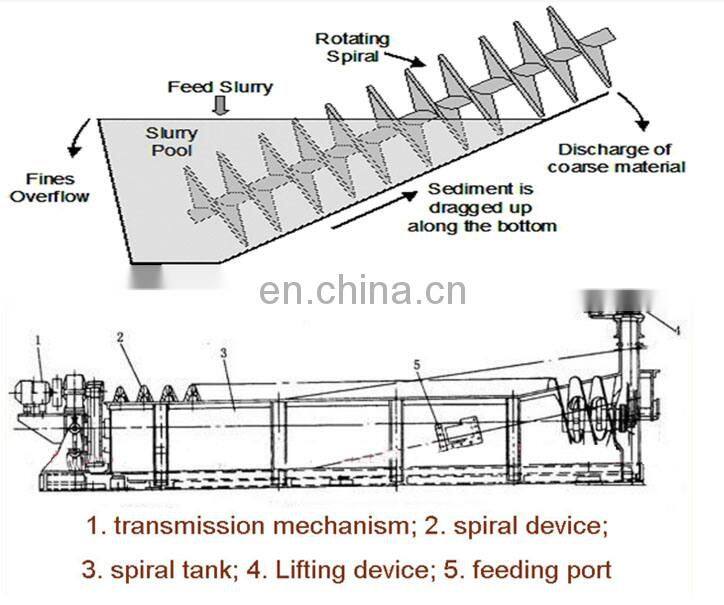

The spiral sand washing machine forms a sedimentation tank at the lower part of the inclined water tank, the spiral head is submerged in the sedimentation tank, the spiral is driven by the motor through the speed reducer to drive the spiral rotation, and the cleaning water is fed from the bottom of the sedimentation tank to complete the cleaning, dehydration and classification Kinds of functions.
Product Characteristics

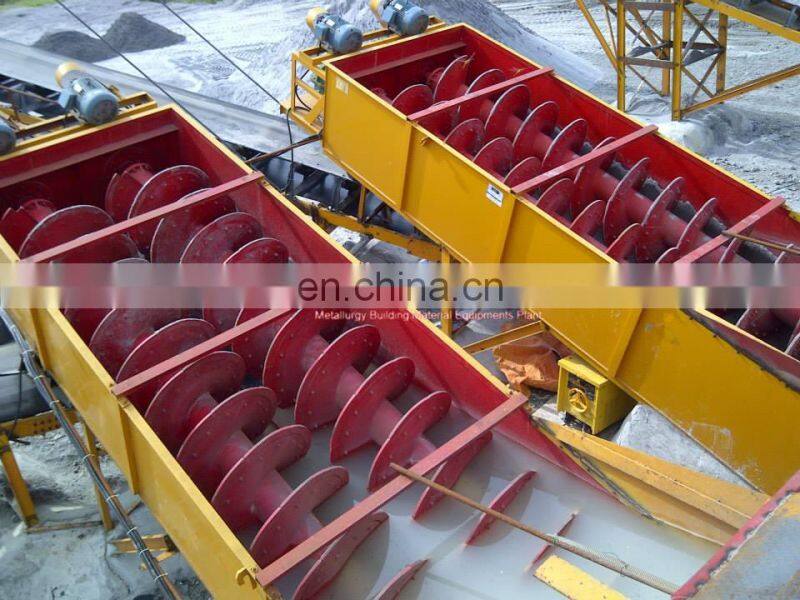

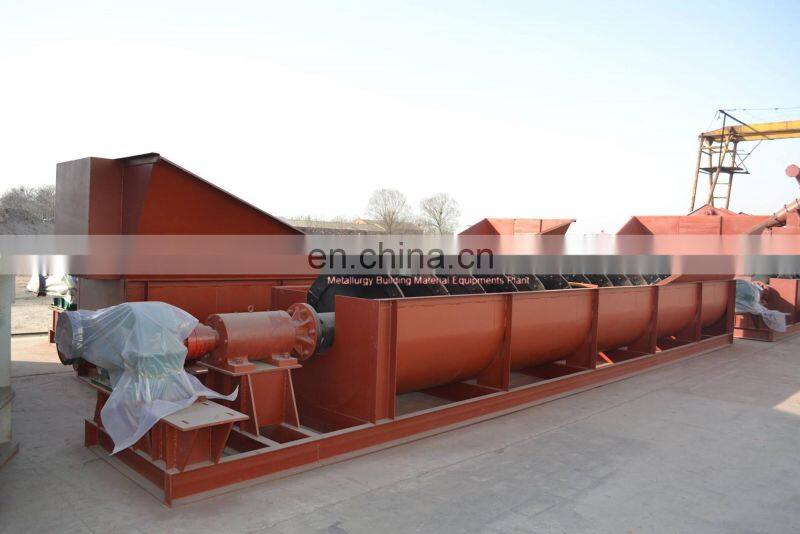

The spiral sand washing machine is divided into two types: single spiral sand washing machine and double spiral sand washing machine. It is mainly used for washing, grading and removing impurities in the industries of highway, hydropower, construction, etc. . It has low power consumption and high washing degree. The good sealing structure, fully enclosed transmission device, and adjustable weir plate ensure the equipment's high efficiency, durability, good cleaning, good dehydration effect, and the stability of fine-grained products. Compared with the single spiral sand washing machine, the double spiral stone washing machine has the characteristics of high efficiency and large output, and can process materials within 0-30mm.
1. Simple structure and stable operation.
2. The bearing is separated from water and materials to avoid damage caused by premature contamination and rusting of the machine.
3. Suitable for various working environments.
4. The loss of washed materials is low, and the efficiency of selective washing is high, which can fully meet the requirements of high-grade materials.
5. Long service life, almost no wearing parts.
6. Maintenance is required in rare cases, so the cost can be greatly reduced.
Product Paramenters
Model | Spiral Dia.(mm) | Rotate Speed (r/min) | input Size (mm) | Water Consumption (T/h) | Capacity (T/h) | Power (Kw) | Weight (Kg) |
LXS -508 | Φ508 | 38 | ≤10 | 6-40 | 20-30 | 5.5 | 2670 |
LXS -610 | Φ610 | 32 | ≤10 | 6-50 | 30-40 | 7.5 | 3800 |
LXS -762 | Φ762 | 26 | ≤10 | 9-63 | 75 | 11 | 4020 |
LXS -914 | Φ914 | 20 | ≤10 | 10-80 | 100 | 11 | 6500 |
LXS-1118 | Φ1118 | 18 | ≤10 | 27-168 | 175 | 15 | 8690 |
LXS -1500 | Φ1500 | 13 | ≤10 | 27-180 | 220 | 18.5 | 16580 |
2LXS -762 | Φ762 | 26 | ≤10 | 136-182 | 145 | 11×2 | 8140 |
2LXS -914 | Φ914 | 21 | ≤10 | 120-150 | 200 | 11×2 | 13500 |
2LXS-1118 | Φ1118 | 17 | ≤10 | 200-250 | 300 | 15×2 | 19800 |
