Sale Small Charcoal Coal BBQ Briquette Press Making Machine For Germany
Our coal briquette machine can mold a variety of mineral powder, metal powder, coal powder, coke powder and other materials. Due to the use of forced squeeze by roller, the products have high density, high strength and high hardness.
Besides, the press roller of the briquette machine uses 65Mn rigid material with good abrasion resistance, effectively prolong service life of the press roller.
Besides, the press roller of the briquette machine uses 65Mn rigid material with good abrasion resistance, effectively prolong service life of the press roller.
Application
1.It can press coal, coke, charcoal, carbon powder etc, widely used in coal industry .
2.Used in mining, metallurgy, refractory material, chemical and other industries, press iron powder, aluminum powder, ironfilings, oxide iron, quartz powder, slag, gypsum, sludge, kaolin, etc.
2.Used in mining, metallurgy, refractory material, chemical and other industries, press iron powder, aluminum powder, ironfilings, oxide iron, quartz powder, slag, gypsum, sludge, kaolin, etc.

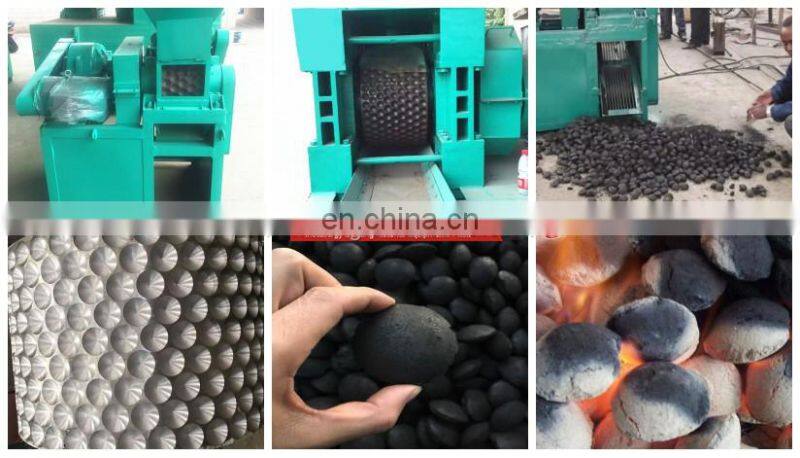

Final briquettes produced by coal briquette press machine:
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.
Shape: Can be round, pillow, oval.
Size: Changeable size 18mm-80mm, made according to clients requests.
You can click here to get preferential prices and more product details!
Detailed Images

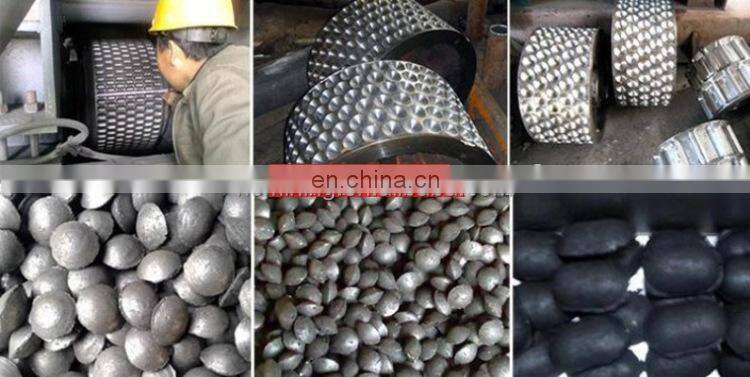

Roller
It's the main part to press the materialinto briquettes . The roller adopt high -quality manganese steelmaterials ( 65MN / 9cr2mo ) , greatlyimproving the wear resistance andpressure ability , make the hydraulicbriquette machine has a long servicelife , has been widely used in recentyears .
Pre-pressing Device
This device preloads the materialmaking the material more compact andincreasing the briquetting ratio.
Reducer
The reducer is one of the mostimportant parts of briquette machinewhich plays an important role in thework of machine and directly affects theoutput of briquetting machine
Specification
Model | Roller Dia. (mm) | Roller Width (mm) | Motor Power (kw) | Shaft Speed (r/min) | Reducer Model | Capacity (t/h) | Roller Material |
YYQ-476 | 476 | 210 | 22/1.5 | 15 | ZQ500 | 3-6 | 65Mn |
YYQ -476 | 476 | 260 | 30/1.5 | 15 | ZQ650 | 4-8 | 9Cr2M0 |
YYQ -500 | 500 | 300 | 30/1.5 | 15 | ZQ650 | 5-9 | 65Mn/9Cr2M0 |
YYQ -650 | 650 | 336 | 45/1.5 | 15 | ZQ750 | 8-15 | 65Mn |
YYQ -672 | 672 | 275 | 75/1.5 | 13 | ZQ1000 | 8-15 | 9Cr2Mo |
YYQ -750 | 750 | 400 | 55/1.5 | 13 | ZQ850 | 15-20 | 65Mn/9Cr2Mo |
YYQ -850 | 850 | 500 | 75/1.5 | 10 | ZQ850 | 20-30 | 65Mn/9Cr2M0 |
YYQ-1000 | 1000 | 650 | 110/1.5 | 10 | ZQ1000 | 30-50 | 65Mn/9Cr2M0 |
You can click here to get preferential prices and more product details!
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
Customer cases
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
Packaging Details
Standard Export Packing：
Standard export packing, Spare parts in wooden case, big machines loaded incontainer,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20
working days.
FAQ
Q:If I don't know how to operate this machine? How can I do?
A:Our machine has been tested OK and fully assembled before shipping, customer just needs to make2~4 hours wear-in and then can work.
Q:What can I get the price?
A:We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
Q:How can I get the sample to check your quality?
A:After price confirmation, you can require for samples to check our product’s quality.
Q:What is your term of delivery?
A:We accept EXW, FOB Qingdao. You can choose the one which is the most convenient or cost effective for you.
Best quality vegetable spiral type oil press/ vegetable seeds edible oil presses.
Q:Can I be a distributor of Hengchang CRUSHER?
A:Of course you can.
Q:What are the benefits of being a Hengchang distributor?
A: - Special discount .
- Marketing protection.
- Supporting of marketing development
- Point to point technical supports and after sales services.
Q:How can i become a distributor of Hengchang?
A:Contact us immediately for further details by sending us an inquiry.
