Wood Biomass Waste Sawdust Briquette Charcoal Making Machine for Sale
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Sales Small Charcoal Briquette Making Machine Press Coal Charcoal Briquette Machine Cost Diesel Engine Machine PriceNegotiableMOQ: 1 -
Best Price 300kg/H Biomass Sawdust Rice Husk Briquette Press Machine for SaleNegotiableMOQ: 1
-
Automatic Coal Briquette Pressing Machine Competitive PriceNegotiableMOQ: 1
-
Small Charcoal Briquette Making Machine Ball Heat Press Machine Coal Powder Ball Press Diesel Engine Machine For GermanyNegotiableMOQ: 1
-
Henan Factory Sale Coal and Charcoal Ball Press Powder Briquette Making MachineNegotiableMOQ: 1
Product Description

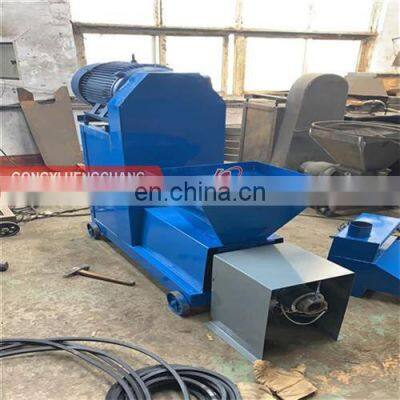

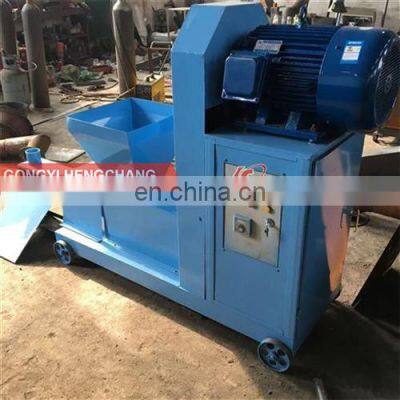

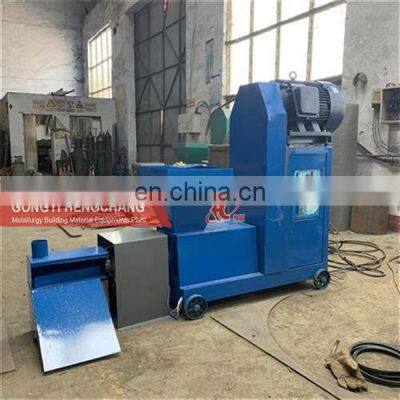

Wood Biomass Waste Sawdust Briquette Charcoal Making Machine for Sale
I. Introduction of Wood Biomass Waste Sawdust Briquette Charcoal Making Machine
Raw material:
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 5%-12%,size3-5mm
Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.
Material required: Moisture 5%-12%,size3-5mm
If moisture>12% may need dryer,We have air flow dryer and drum dryer.
If material size >5mm will need hammer mill or wood crusher.
If material size >5mm will need hammer mill or wood crusher.
When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without any binder, sawdust pressed by high temperature and high pressure , then the screw press sawust forward,extrusion into a rod-shaped solid rod with center hole.
wood charcoal making machine / sawdust charcoal making machine / sawdust making machine for sale
II.Working Principle of Wood Biomass Waste Sawdust Briquette Charcoal Making Machine
The use of the inherent characteristics of wood raw materials, the pressure of the screw through the high temperature softening of the biomass material, at high temperature and pressure, the wood raw materials in the lignin cellulose fiber combination to form a semi-finished products with a central hole.
Model NO. |
BY-50 |
BY-50 |
BY-80 |
Productivity Kg/h |
200-250 |
250-300 |
300-400 |
Motor power KW |
18.5 kw |
40hp |
18.5kw—22kw |
Weight kg |
520 kg |
550kg |
800 kg |
Out size mm |
1800*600*1600 |
1800*700*1600mm |
1800*700*1600 |
Moisture |
5%-10% |
5%-10% |
5%-10% |
III.Main Features of Wood Biomass Waste Sawdust Briquette Charcoal Making Machine
1.High efficiency:20 seconds 60cm briquette,250-300kg/h.2.Screw propeller adopts precision casting, special wear-resisting material life for more than ten times higher than that of traditional thrusters.Forming sleeve adopts special formula alloy precision casting, life can be up to 3 month; This cutting-edge technology not only makes the cost is greatly reduced, but also saves manpower.
wood charcoal making machine / sawdust charcoal making machine / sawdust making machine for sale
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems;
4.Provide free process design.
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
wood charcoal making machine / sawdust charcoal making machine / sawdust making machine for sale
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
