Mining Equipment Plant Coltan Titanium Ore Zinc Slag Separator Price

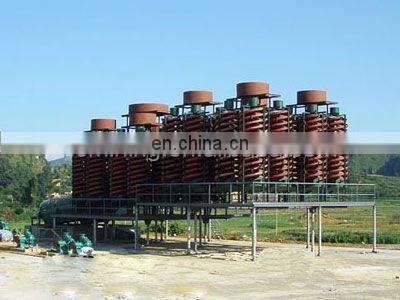

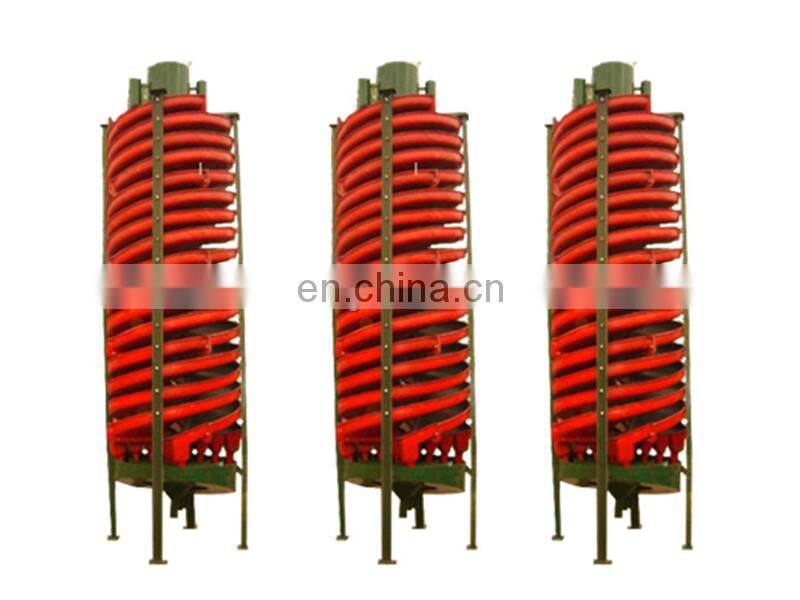

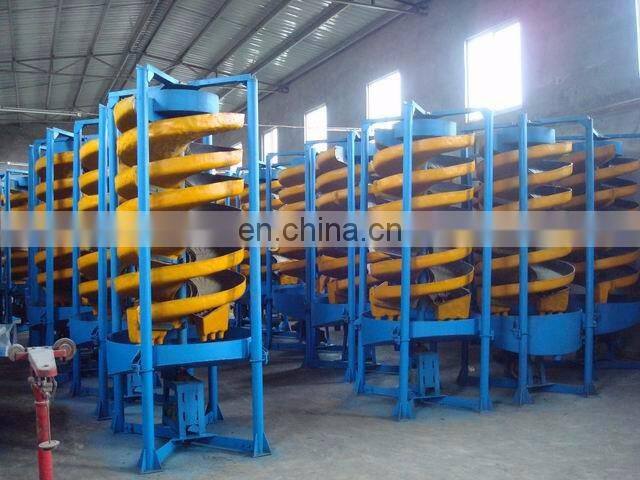

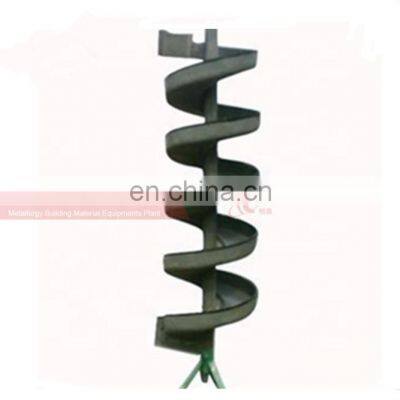

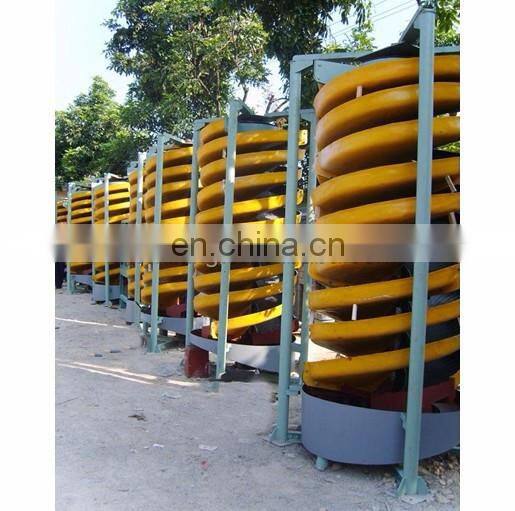

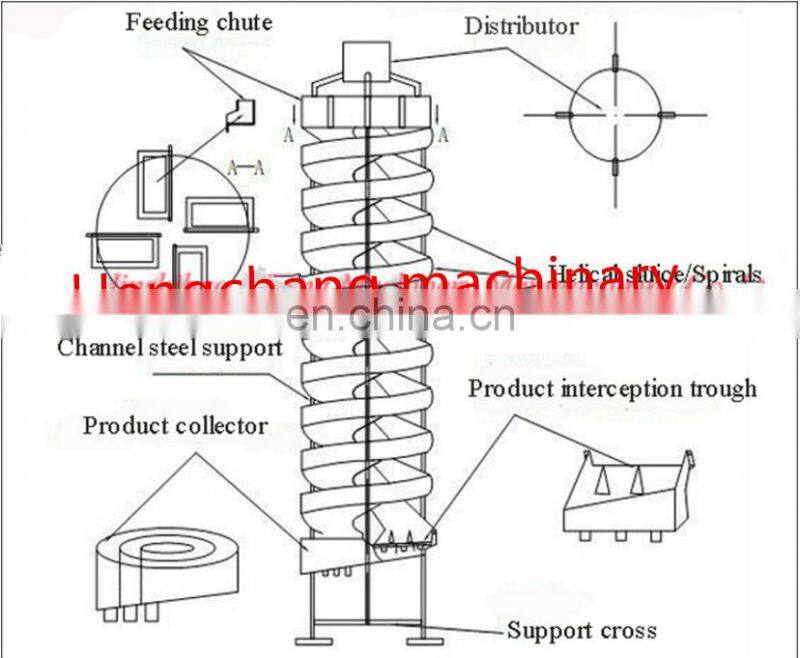

Spiral chute uses gravity to separate particles of different densities. It is used globally in the mineral processing industry, consists of an open trough that twists downward in helix configuration about a central axis.

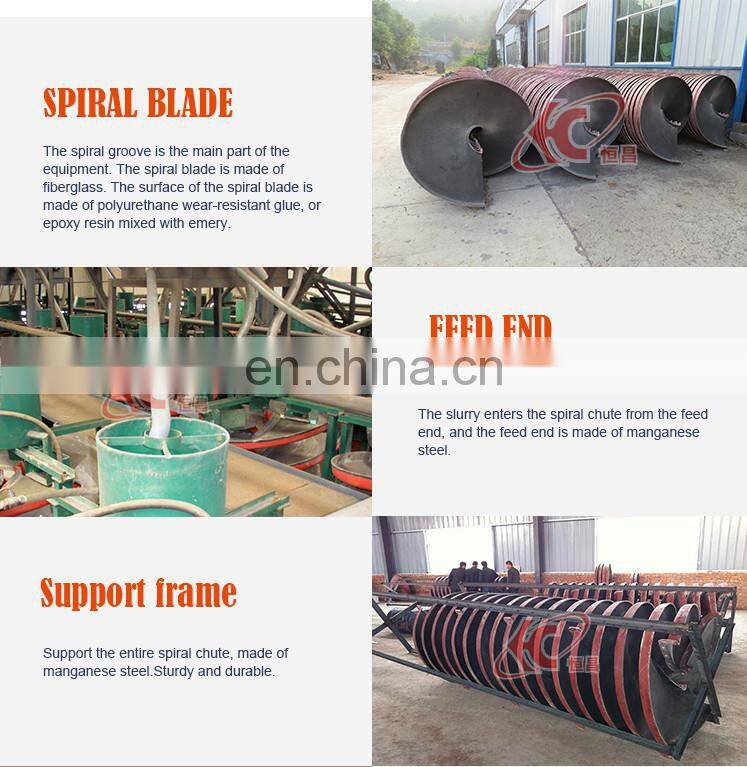

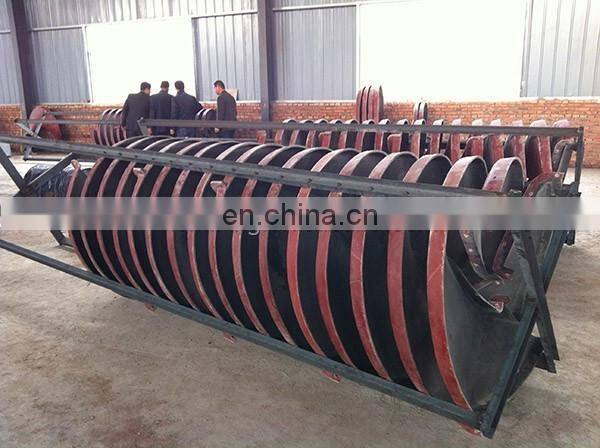

Spiral chute is a kind of gravity concentrator that separates minerals of different specific gravity according to their relative movement in response to gravity force, centrifugal force, etc. in the fluid medium. Spiral chute is made of polyurethane lined fiber glass with wearable corundum inner surface.

Application of Mining equipment plant coltan titanium ore zinc slag separator price

It is used to separate the iron, tin, wolfrmite, tantalum, niobium, gold ore of the size between 0.3 and 0.02mm, and the other metals and nonmetal minerals with different gravity property .

When working, particles are fed to the top of the spiral chute and are separated radially on the basis of density and size as the slurry gravitates downward. In order to have a good separation, there should be a difference in specific gravity of at least 1.0.

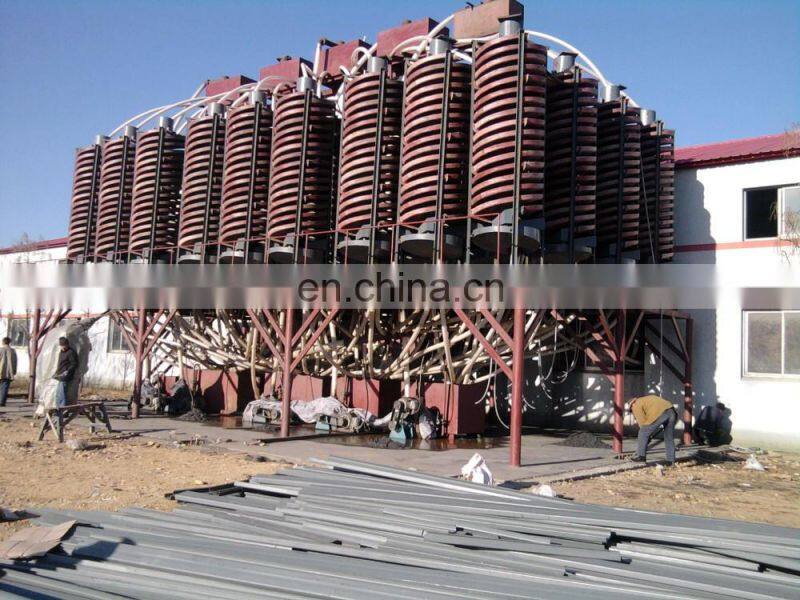

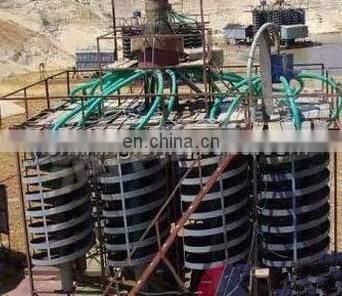

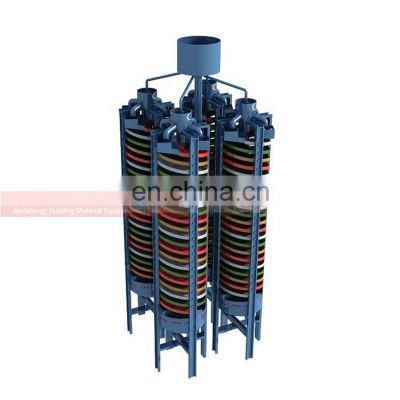

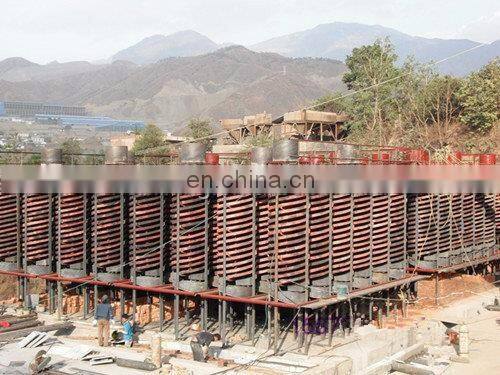

Depending upon the material characteristics, a maximum efficiency will usually be reached somewhere in this range. All that is required are some slurry pumps, the slurry to be separated and the banks of spirals with a feed distributor.

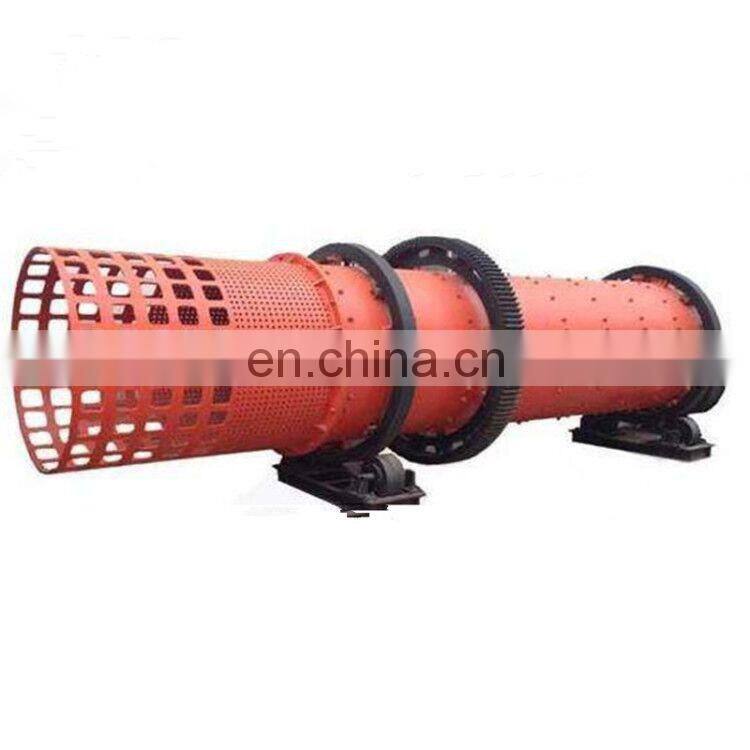

Ore washing plant

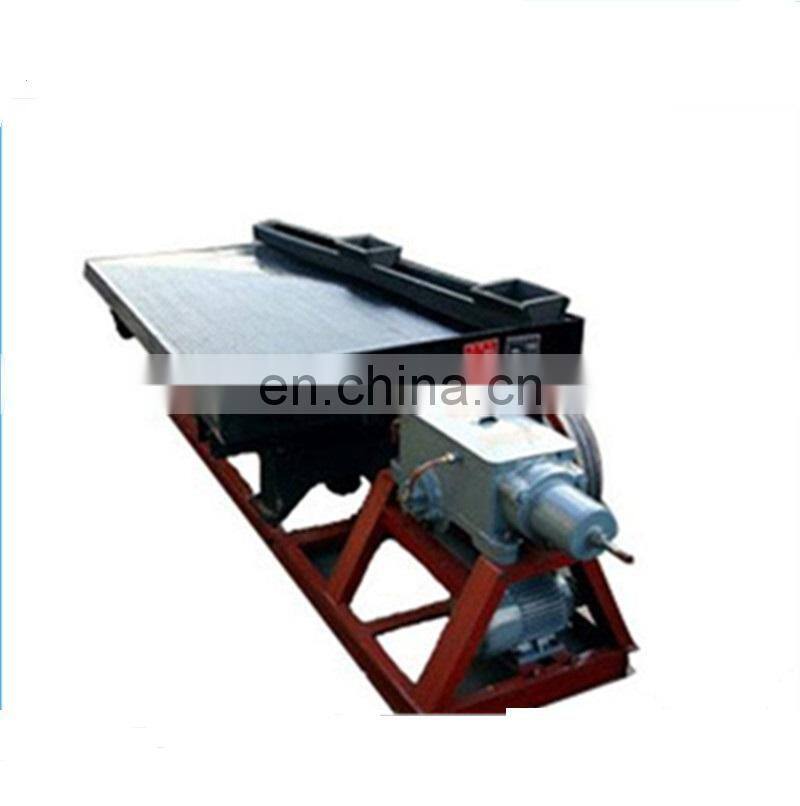

shaking table

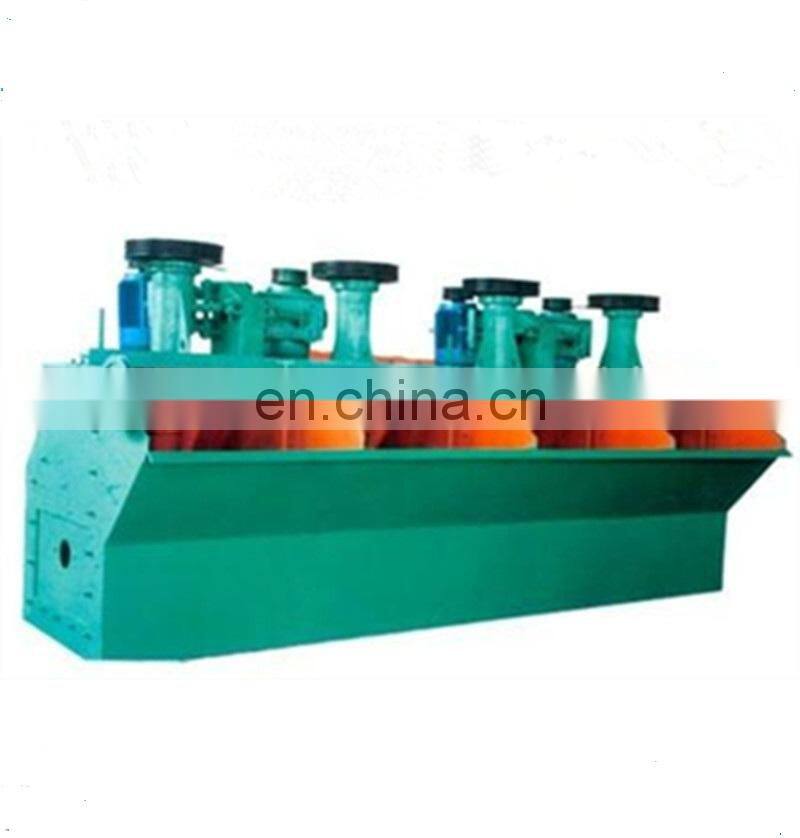

flotation machine
