Product Description

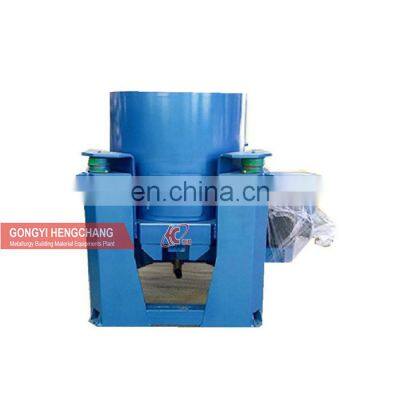

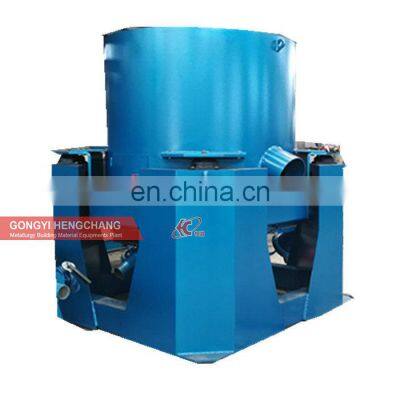

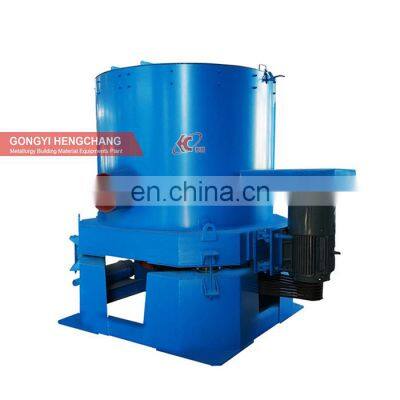

High Recovery Gold Falcon Knelson Centrifugal Concentrator Price for Rock Gold Recovery
I. Introduction of High Recovery Gold Falcon Knelson Centrifugal Concentrator
The separation structure of centrifugal separator is drum, which is hollow and of the shape of frustum.
The slope of drum inner surface is from 30 to 50 degree, which is made from steel plate flange welding, cast aluminum or glass fiber reinforced plastics. Drum is fixed to the axle by chassis and spins along with the axle.
Auxiliary mechanism consists of feeding device, ore discharge device, flush device and the procedure control device
centrifugal concentrator mining/concentrator centrifugal knelson/ knelson centrifugal gold concentrator
II.Working Principle of High Recovery Gold Falcon Knelson Centrifugal Concentrator
III.Main Advantages of High Recovery Gold Falcon Knelson Centrifugal Concentrator
1. Very effective for the process of ultrafine ore slime, The recovery rate of 37-39 micron is over 90%.
2. Under the action of centrifugal force, the process of gravity separation is strengthened and the separation time is much shortened. Therefore, the capacity of centrifugal concentrator is much bigger.
3. Small land coverage and high automation.Centrifugal Concentrator gold / Gold Centrifugal Concentrator / concentrator centrifugal knelson
IV.Specification of High Recovery Gold Falcon Knelson Centrifugal Concentrator
Model | Drum Dia.(mm) | Drum Slope(°) | Drum Speed(r/min) | Input Size(mm) | Input Thickness(%) | Capacity(m3/h) | Power(kw) | Dimension (mm) | Weight(kg) |
LX-Φ800x600(Rough) | 800 | 4 | 450 | -0.074 | 15-25 | 1.2-1.5 | 3 | 1920×1300×2540 | 1100 |
LX-Φ800x600(Fine) | 800 | 5 | 380 | -0.074 | 15-25 | 1.2-1.5 | 3 | 1920×1300×2540 | 1100 |
LX-1600 | 1600 | 5 | 105-405 | -0.074 | 15-25 | 1.5-4.5 | 11 | 2900×1900×3900 | 4500 |
LX-2000 | 2000 | 5 | 105-405 | -0.074 | 15-25 | 6-7.5 | 17 | 3566×2334×3900 | 7500 |
LX-2400 | 2400 | 5 | 105-405 | -0.074 | 15-25 | 5-10 | 22 | 3700×2400×4100 | 12000 |
Centrifugal Concentrator gold / Gold Centrifugal Concentrator / concentrator centrifugal knelson
V.Application of Gold Mining Equipment Knelson Type Centrifugal Gold Concentrator
Centrifugal separator is known as centrifuge or centrifugal chute. Strong centrifugal force produced by high speed spin strengthens the process of gravity separation and effectively recover the ultrafine ore particles. Nowadays, centrifugal concentrator is widely used for the recovery of gold, tungsten, lead, manganese, iron, etc.
Company Profile
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Centrifugal Concentrator gold / Gold Centrifugal Concentrator / concentrator centrifugal knelson
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
Customer case
Centrifugal Concentrator gold / Gold Centrifugal Concentrator / concentrator centrifugal knelson
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
