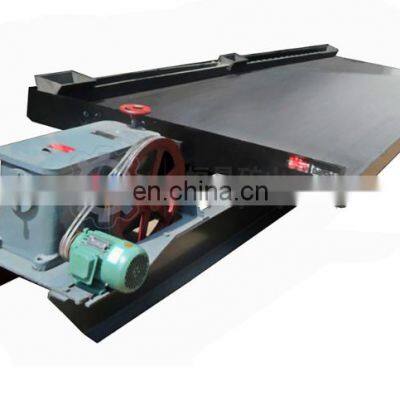

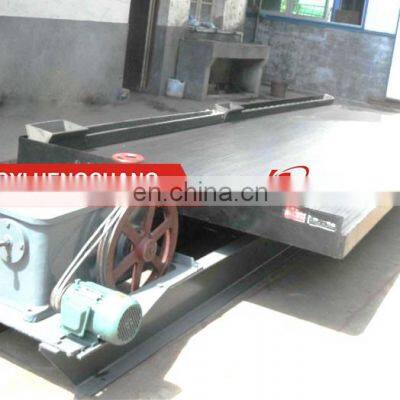

2021 China Small 6S Shaking Table For Copper Ore Gold Panning Equiment Shaking Table Coal Gravity Separator Mineral Processing
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
1990
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronic Dynamic 3 Axis Gold Earthquake Shake TableNegotiableMOQ: 1 -
Hot Sale High Recovery Gold Centrifugal Concentrator for Gold Mineral SeparationNegotiableMOQ: 1
-
Gold Zinc Copper Floatation Machine/floatation Tank for SaleNegotiableMOQ: 1
-
Different Model Gold Slurry Mixer for Mixing Various Ore Lifting Agitation Tank for SaleNegotiableMOQ: 1
-
River Stone Rotary Drum Type Washer Machine for Sand Washing and ScreeningNegotiableMOQ: 1
Product Description

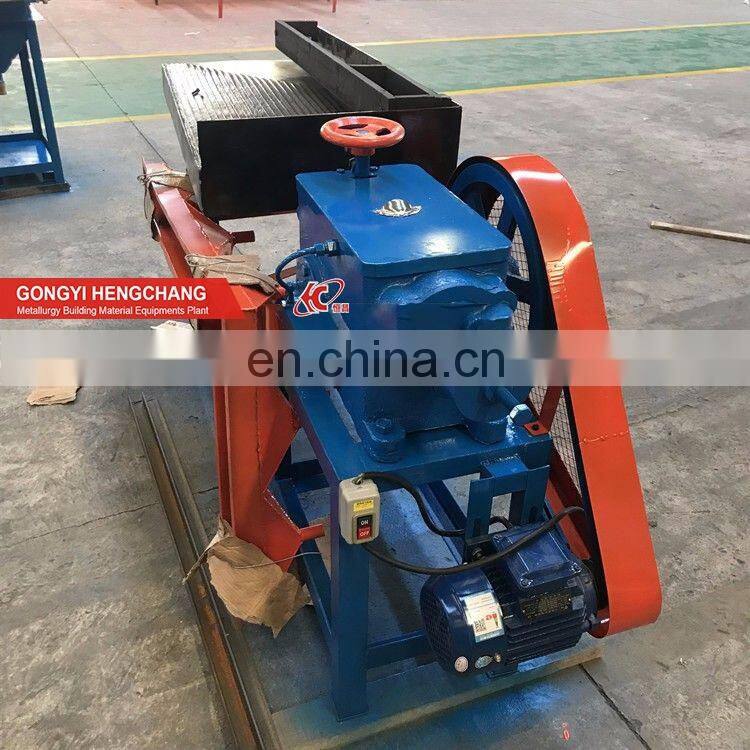

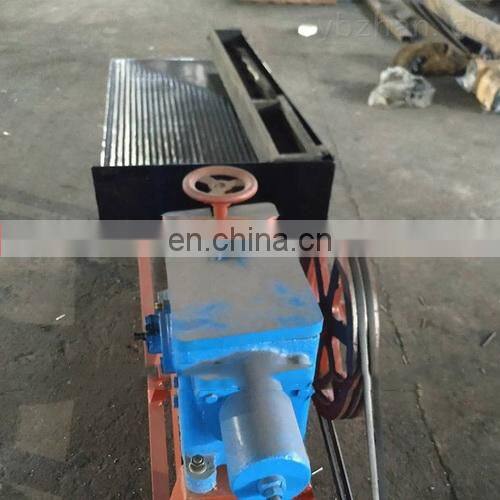

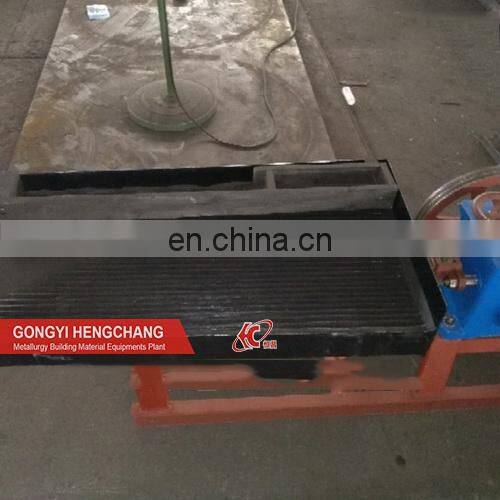

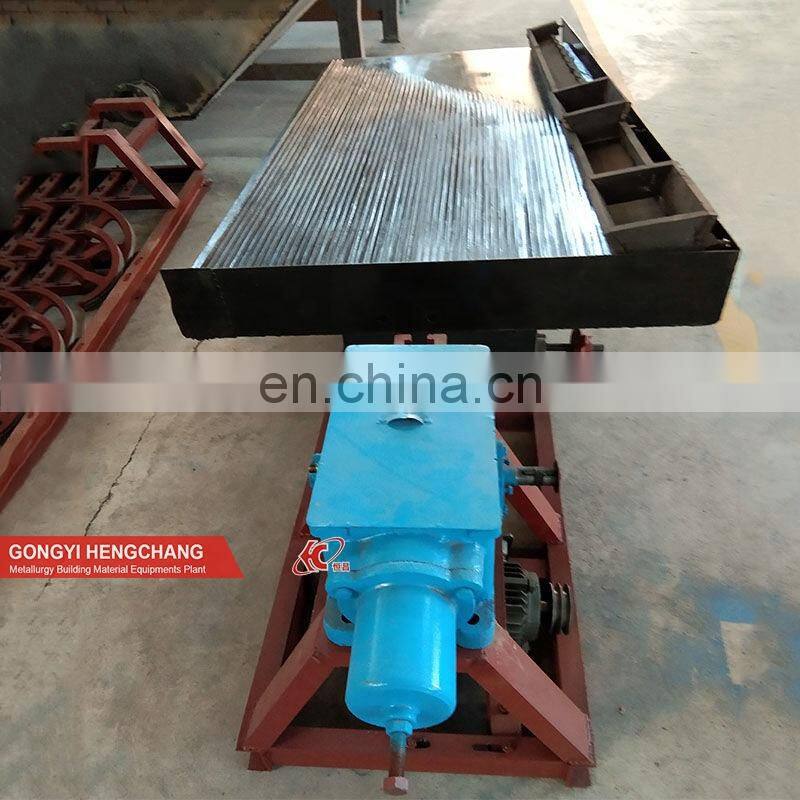

2021 China Small 6S Shaking Table For Copper Ore Gold Panning Equiment Shaking Table Coal Gravity Separator Mineral Processing
Description
Manganese, gold shaking table is one of the main gravity separation equipment, which is widely applied to separate tungsten, tin, tantalum, niobium and other rare metal, noble metal as well, It can also concentrate iron, manganese and coal, etc, it owns the features of high concentration ratio and sorting efficiency, easy management and adjustment, achieving the final concentrate and tailing in one time.
Manganese, gold shaking table is one of the main gravity separation equipment, which is widely applied to separate tungsten, tin, tantalum, niobium and other rare metal, noble metal as well, It can also concentrate iron, manganese and coal, etc, it owns the features of high concentration ratio and sorting efficiency, easy management and adjustment, achieving the final concentrate and tailing in one time.
Applications
Manganese, gold shaking table widely uses in ores such as tungsten, tin, lead, zinc, gold, silver, tantalum, niobium, monacite, zircon, ilmenite planting the fissure filling or the placer ore dressing plant in processes the 3_0.019mm granularity ore in the rough sizing and the selection work.
Manganese, gold shaking table widely uses in ores such as tungsten, tin, lead, zinc, gold, silver, tantalum, niobium, monacite, zircon, ilmenite planting the fissure filling or the placer ore dressing plant in processes the 3_0.019mm granularity ore in the rough sizing and the selection work.
Features
1. Great ratio of high-grade ore, efficient separating, easy operation, easy to adjust the stroke.
2. Strong wear resistance of the working surface.
3. Anti-chemical corrosion, acid and alkali.
4. Strong resistance to harsh evironment.
1. Great ratio of high-grade ore, efficient separating, easy operation, easy to adjust the stroke.
2. Strong wear resistance of the working surface.
3. Anti-chemical corrosion, acid and alkali.
4. Strong resistance to harsh evironment.

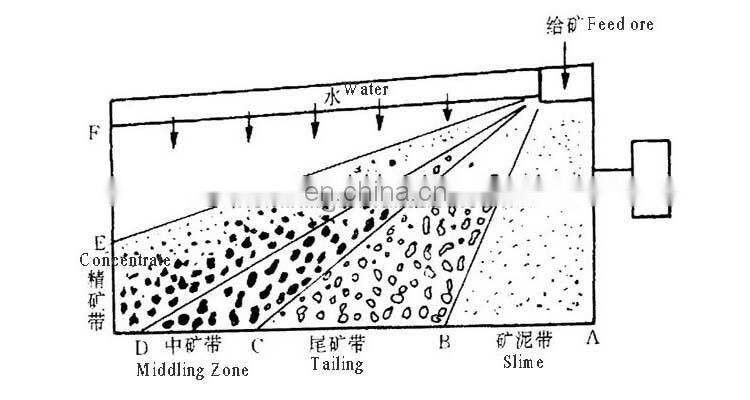

Working Principle
The manganese, gold shaking table is shaken back and forth longitudinally, using a slow forward stroke and a rapid return strike that causes particles to raw along the deck parallel to the direction of motion. The lighter materials move up and over the riffles and down to exit on the tailings side of the table. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and they separate out on the table according to size and density. Tables are most commonly used to recover gold from hard rock ores, but can also be used to recover other mineral materials of higher than normal density. They do an excellent job of recovering small gold particles, even with a fairly high feed rate.
The manganese, gold shaking table is shaken back and forth longitudinally, using a slow forward stroke and a rapid return strike that causes particles to raw along the deck parallel to the direction of motion. The lighter materials move up and over the riffles and down to exit on the tailings side of the table. Wash water is fed at the top of the table at right angles to the direction of table movement. These forces combine to move particles diagonally across the deck from the feed end and they separate out on the table according to size and density. Tables are most commonly used to recover gold from hard rock ores, but can also be used to recover other mineral materials of higher than normal density. They do an excellent job of recovering small gold particles, even with a fairly high feed rate.
Company Information:About HENGCHANG
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters, including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
powder grinding mills, mineral processing equipment and their spare parts. Every year,
Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.

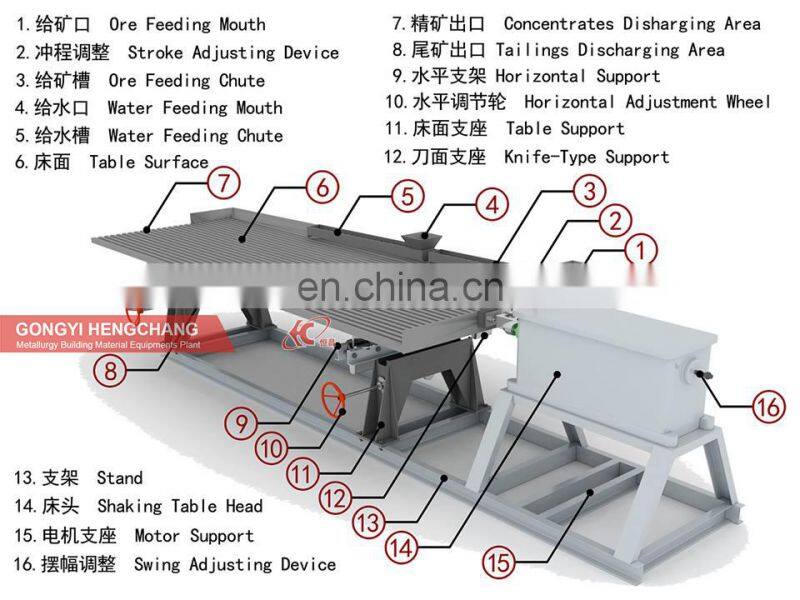

Product parameter
Model table structure table size selecting area direction slope stroke stroke number feeding size | Ls<6-s> | Ys |
Table structure | fiberglass reinforced plastic,embeded skeleton composit structure | Fiberglass reinforced plastic,embeded skeleton composit structure |
table size | 1500-1850×4500mm | 1500-1850×4500mm |
selecting area | 7.5 m² | 7.5 m² |
direction | left type and right type | Left type and right type |
slope | 0-5degree | 0-5degree |
stroke | 10-30mm | 8-22mm |
stroke number | 240-360times/min | 240-360times/min |
feeding size | coarse sand 2-0.5mmfine sand 0.5-0.074mm slurry0.074mm | Coarse sand 2-0.5mmfine sand 0.5-0.074mm slurry0.074mm |

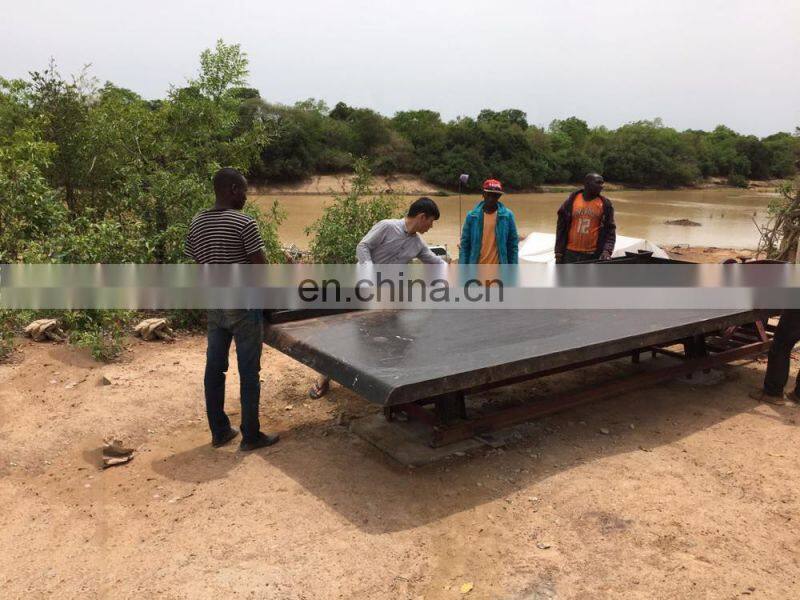

Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model; 2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countries and widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems; 4. Provide free process design.

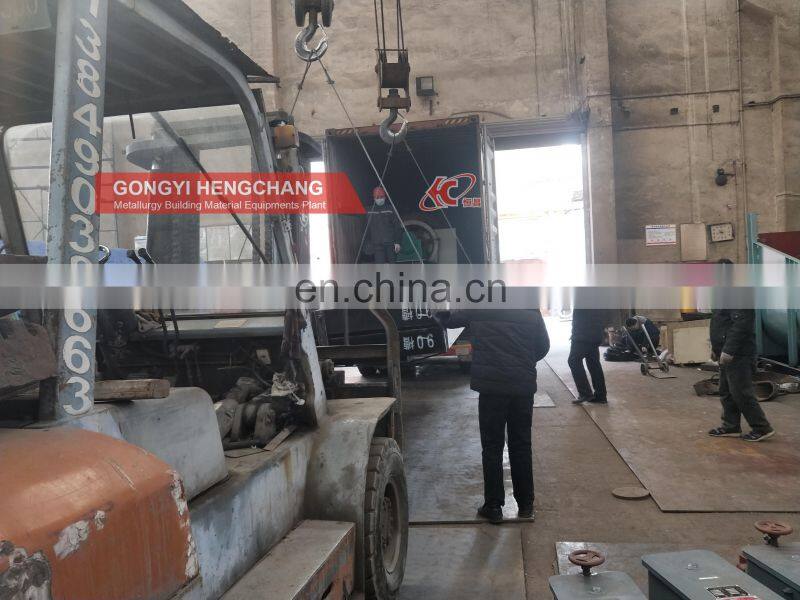

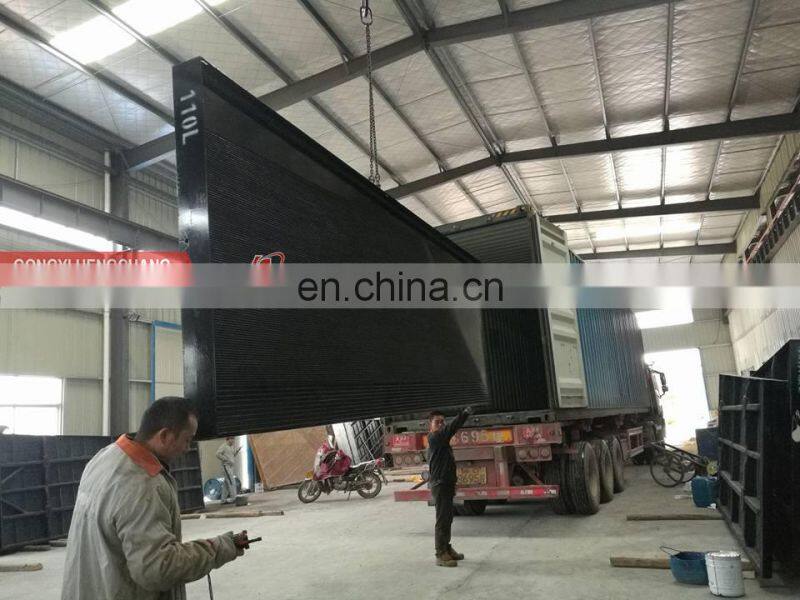

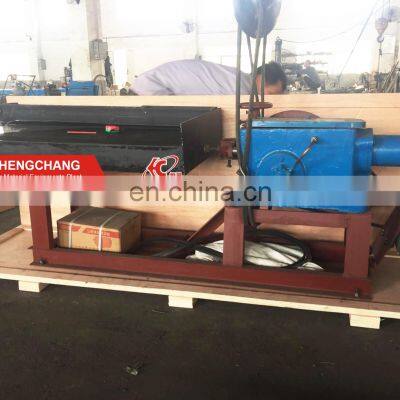

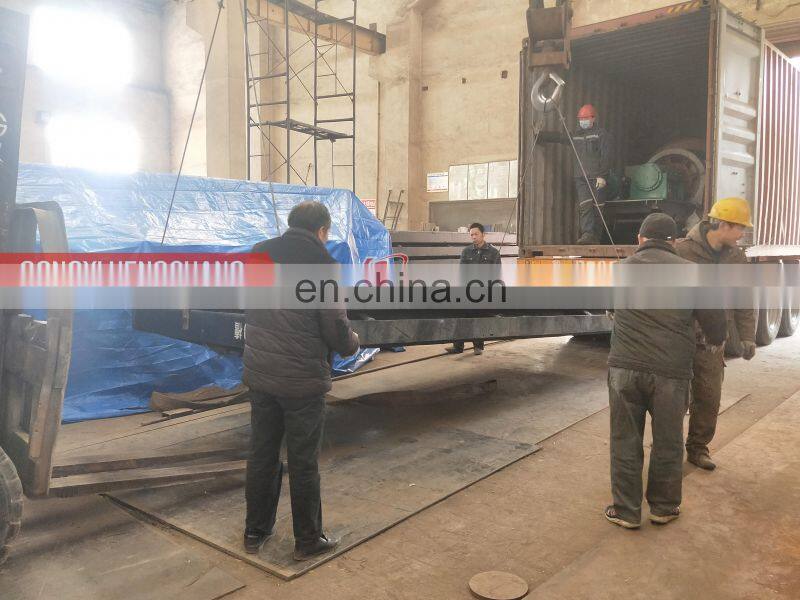

Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
