Product Description
Products Description

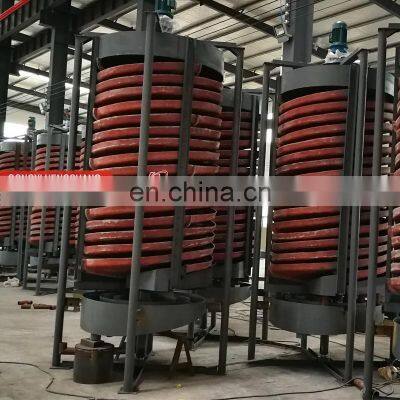

Mini Lab gold spiral concentrator/ Laboratory Gravity Chute for Gold Mining Equipment
Detailed Images
The spiral chute is used for gold ores,silver ores, placer mines,lead zinc ores, copper ores, tin ores, ilmenite, pyrite,hematite, limonite, chromite, ferberite, tungsten ores. tantalite ores, coal ores, monazite, Sapphire barite, futile, zircon,and silica sands. The sprial chute is the ideal equipment for gravity selecting for the ferrous & non ferrous metal, non-metallic ores and rare earth ores.
It has the advantage of simple structure, light weight, no need power, saving water &electricity, easy to control and high capacity.
It has the advantage of simple structure, light weight, no need power, saving water &electricity, easy to control and high capacity.
You can click here to get preferential prices and more product details!
Technology Introduction
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
Outside Dia. (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Pitch (mm) | 1200 | 800,680,540 | 720,540,360 | 660,540,400 | 450,360,270 | 240,180 | ||
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° | ||
External size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height (mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Starts/Turns per column | 4-2 | 4-2 | 4-2 | 4-2 | 2 | 2 | ||
Feeding size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding density (%) | 20-45 | 30-60 | 25-55 | 25-55 | 25-55 | 25-55 | ||
Capacity (t/h) | 12-10 | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | ||
Weight (KG) | 1100 | 800 | 600 | 400 | 150 | 50 | ||
Working Principle
Raise the spiral chute and fix it in the proper position, sand pump transport the ore to the feed inlet, adding water to adjust the concentration of the slurry.
The slurry naturally swirls from high to low, and generates an inertial centrifugal force in the rotating bevel flow rate.
The mineral is separated from the sand by the gravity and centrifugal force of the swirl by the difference in specific gravity, grain size and shape of the ore.
The concentrate flows into the concentrate bucket and is connected by the pipeline. The tail sand flows into the tailing sand bucket and is connected to the sand pool by the pipeline, and then drained by the sand pump to complete the whole process of the beneficiation.
You can click here to get preferential prices and more product details!
Customer Site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
