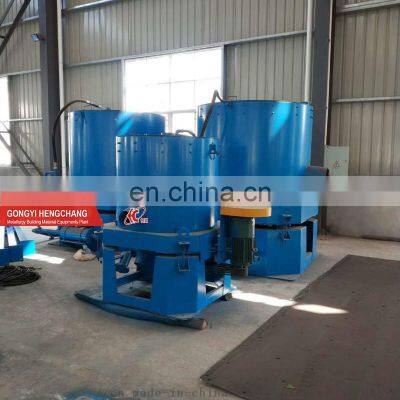

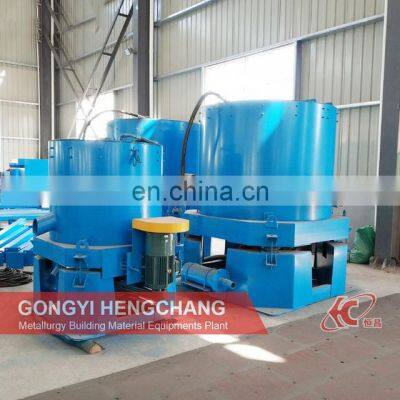

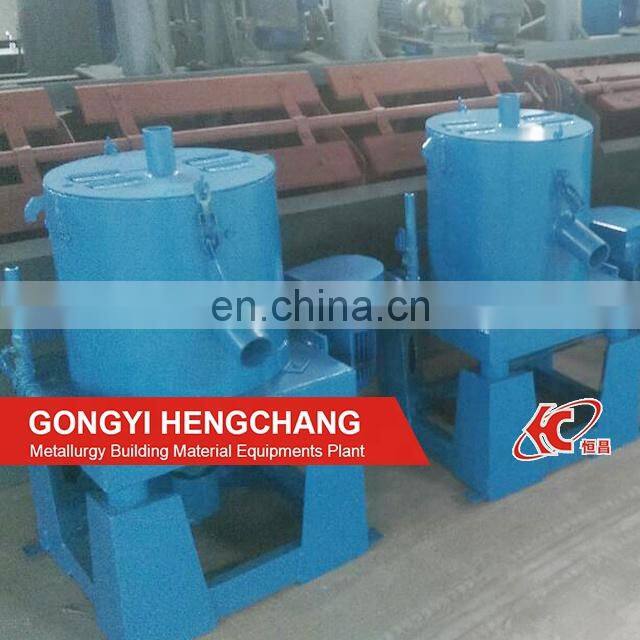

Supply High Recovery Gold Centrifugal Concentrator for Gold Mineral Separation
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Mini Lab Gold Spiral Concentrator / Laboratory Gravity Chute For Gold Mining Equipements
-
Hot Selling Coal Powder Grinder Wheel Roller Mixer Machine With Price
-
Roller Type Sand Mixer in Casting Foundry Sand Mixing Machine Price
-
Factory Price Charcoal Powder Coal Dust Roller Grinding Wheel Mixer For Sale
-
Hot Sale Stone Vibrating Feeder for Feeding Stone to Jaw Crusher Machine
-
Save Energy Stone Rock Vibrating Feeder Feeding Stone to Jaw Crusher Machine
Product Description
Supply High Recovery Gold centrifugal Concentrator for Gold Mineral Separation
Product Description
Introduction of Gold centrifugal Concentrator for Gold Mineral Separation
Centrifugal Concentrator is kind of centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.The recovery can be as high as 98%.
centrifugal concentrator for gold /centrifugal concentrator gold recovery /centrifugal concentrator gold
Working Principle of Gold centrifugal Concentrator for Gold Mineral Separation
The hollow shaft of this equipment can be driven by electrical motor transmission part through belt driving, making the rotation inner sleeve rotate in a high speed to produce centrifugal force. The slurry will be fed into the rotation inner sleeve through feeding pipe, and the slurry particle will be separated under the action of centrifugal force field. The heavy mineral will be remained in the cell guide of rotation inner sleeve, and the light mineral will be discharged through the tailing’s launder. After
one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.
one shift work and stop running, the concentrate will be discharged through the concentrate discharge outlet.

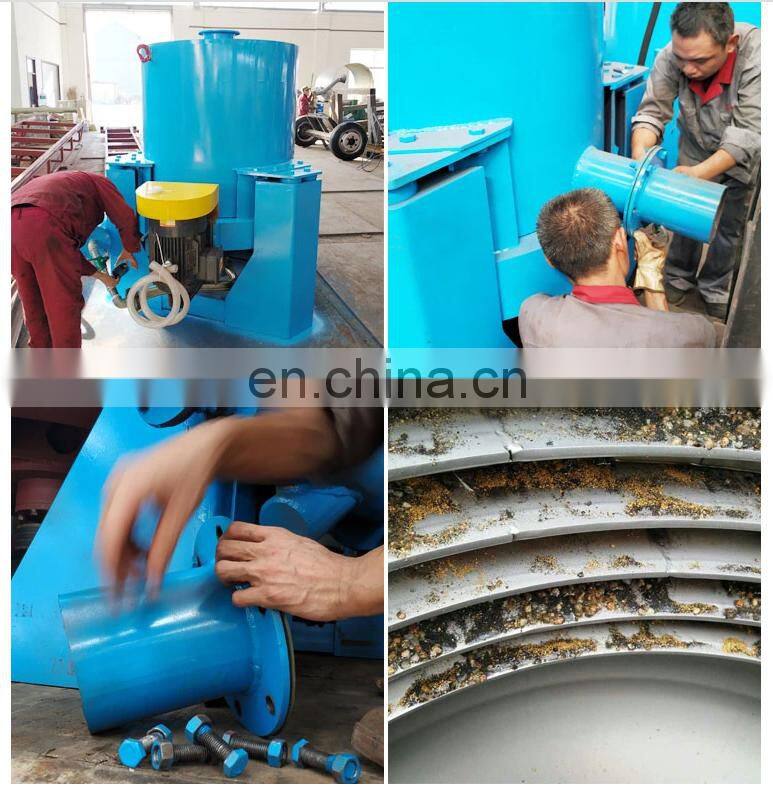

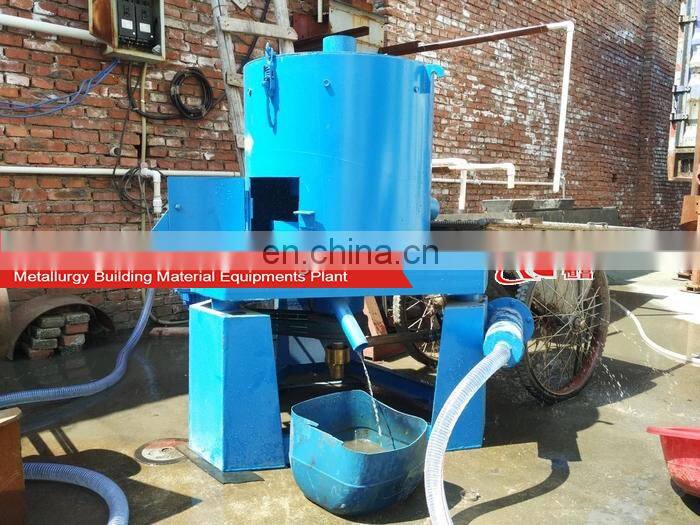

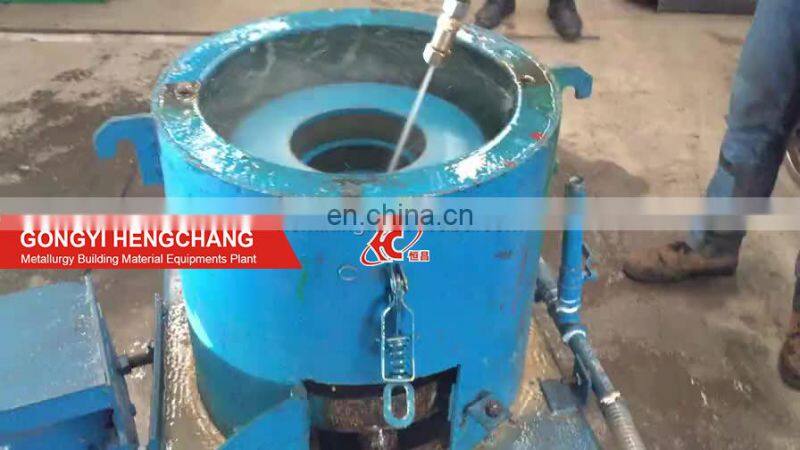

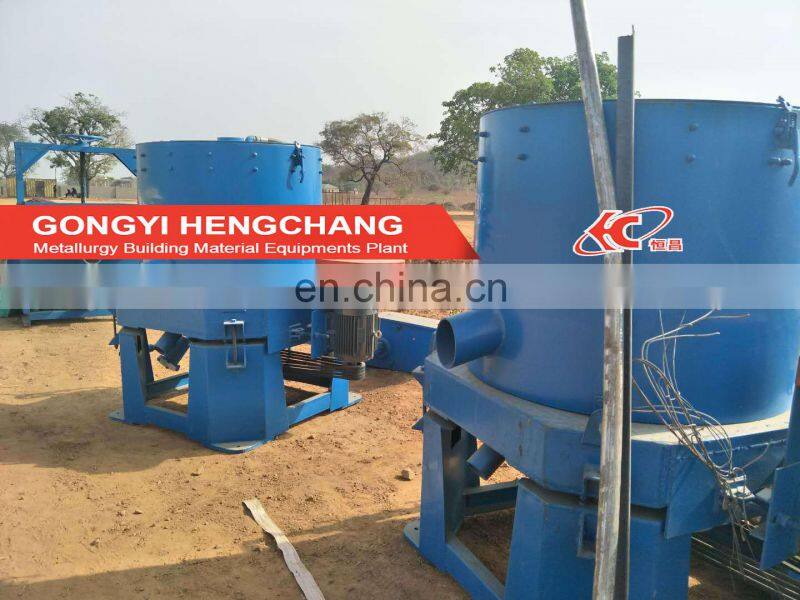

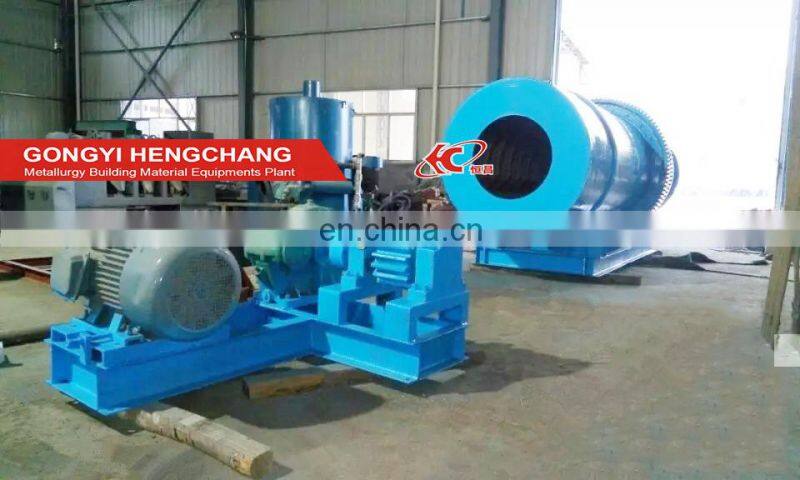

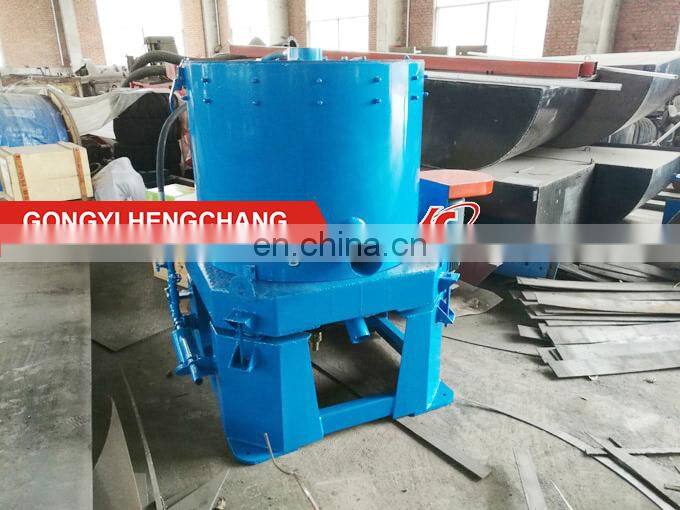

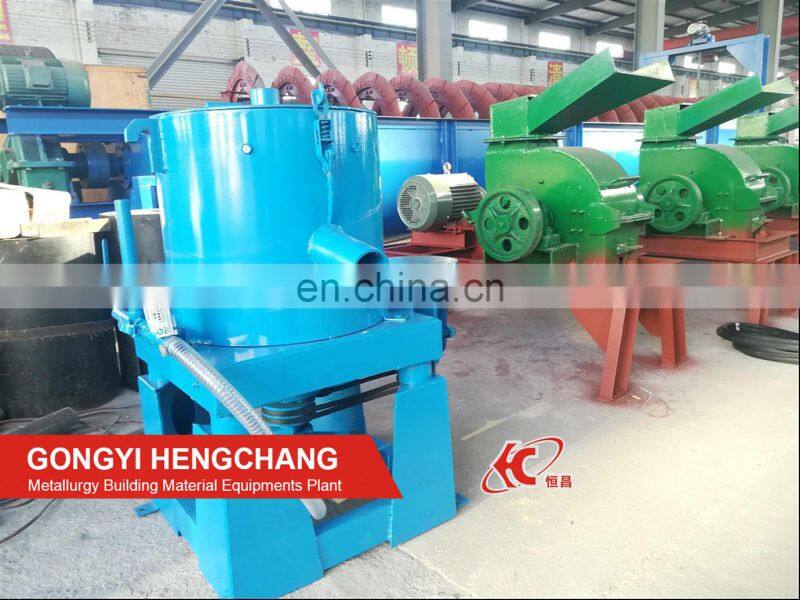

Details Images of Gold centrifugal Concentrator for Gold Mineral Separation
centrifugal concentrator gold / centrifugal concentrator gold recovery / centrifugal gold concentrator
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.
Company Profile
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Specification of Gold Sand Separator Machine Spiral Chute Gravity Separator
Model | Capacity (t/hr) | Feeding Size(mm) | Feeding Density(%) | Power Requirement(kw) | Cone Rotate Speed | Water Required(t/h) | Dimension(mm) |
STLB20 | 0.5-1.0 | 0-2.5 | 0-50 | 1.1 | 800 | 1.5-2.0 | 800*560*710 |
STLB30 | 2.0-3.0 | 0-4 | 0-50 | 2.2 | 600 | 4.0-6.0 | 1280*1030*1135 |
STLB60 | 8.0-12.0 | 0-6 | 0-50 | 7.5 | 460 | 10-15 | 1850*1550*1600 |
STLB80 | 10.0-20.0 | 0-6 | 0-50 | 15 | 400 | 17-25 | 2300*1800*2200 |
STLB100 | 50-100 | 0-6 | 0-50 | 18 | 360 | 4-60 | 2400*2400*2250 |
Customer Visit & Our Service
1.Pre-sale services:Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
2.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients:
Respect clients, devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
2.Help clients to draft solving plans;
3.After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...

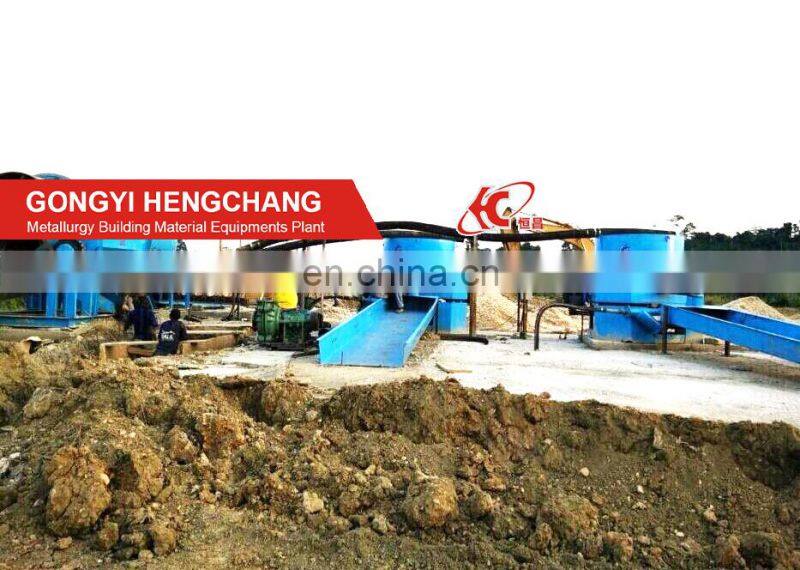

Customer case
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!
Packing and delivery
Packaging Details:We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.
centrifugal concentrator for gold /centrifugal concentrator gold recovery /centrifugal concentrator gold
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
