MC201NS302KSN24 Nidec Sankyo OTC DAIHEN Electric Rotary Servo Motor

Huizhou Linchuang Technology Co ., Ltd

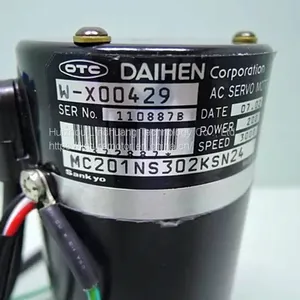

MC201NS302KSN24 Nidec Sankyo OTC DAIHEN Electric Rotary Servo Motor thumbnail-1

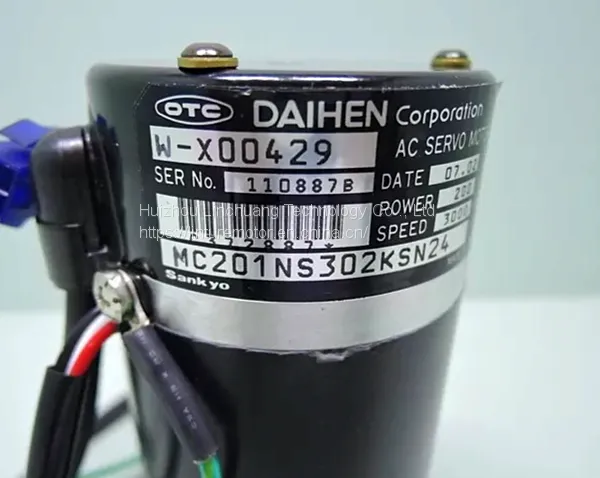

MC201NS302KSN24 Nidec Sankyo OTC DAIHEN Electric Rotary Servo Motor photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Nidec Sankyo
Place of Origin:
Japan
Model Number:
MC201NS302KSN24
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Bao'an international airport
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Nidec Sankyo
Place of Origin Japan
Model Number MC201NS302KSN24
Detailed Product Description
Category:Industiral AC Servo MotorModel:S10HL02
Rated Power:100WSeries:S10HL02
MOQ:1Brand:Nidec Sankyo (Japan)
High Light:ewing machine servo motor,electric servo motor


Nidec Sankyo OTC DAIHEN AC SERVO MOTOR W-L00574A S10HL02 100W Industrial Electric Motors

Nidec Sankyo Industrial Servo Motor's Use Applications

Embroidery Machine,Textile Machine,Packaging Machine etc
Removal Robot
Conveyer Machine
Processing Machine

Precautions
Using the motor with rotations of 180 degrees or less will reduce the encoder's rotational accuracy.For a motor equipped with a brake, follow the brake voltage and polarity specifications.If the brake voltage is less than 12 V or the polarity is reversed, the encoder's rotational accuracy will be reduced.

Installing Precautions
Never remove the encoder or dismantle the motor body.
The motor shaft has anti-rust oil applied at the shipment. Please wipe off the oil before installing the motor. Make sure to perform centering (alignment) carefully and properly.
Operating the motor without sufficient alignments might cause vibrations or a shorter service life of the motor.
Installation Orientations and Oil Seals
The motor can be installed either vertically or horizontally. Please observe the following precautions.

  • Horizontal installation: Face the cable pull unit down in order to protect the motor against oil, water and dust.

  • Vertical installation : For a motor combined with a decelerator being on top of the motor shaft, use an oil sealed motor to prevent the decelerator oil from seeping into the motor.

Features
Suitable for applications with high speed rotations.Can be used for most applications.
Suitable for applications with low mechanical rigidity such as drive belt machinery.


Types of Sankyo Industrial AC Servo Motor
InertiaLow Inertia
Middle Inertia
High Inertia
Flange Size40 mm x 40 mm
60 mm x 60 mm
80 mm x 80 mm
130 mm x 130 mm
Rotational SpeedRated Motor Speed / Max. [r/min]
2,000 / 3,000 [r/min]
3,000 / 6,000 [r/min]
IP CodeIP65
IP67


Product Tags: motor , controller , moudel
