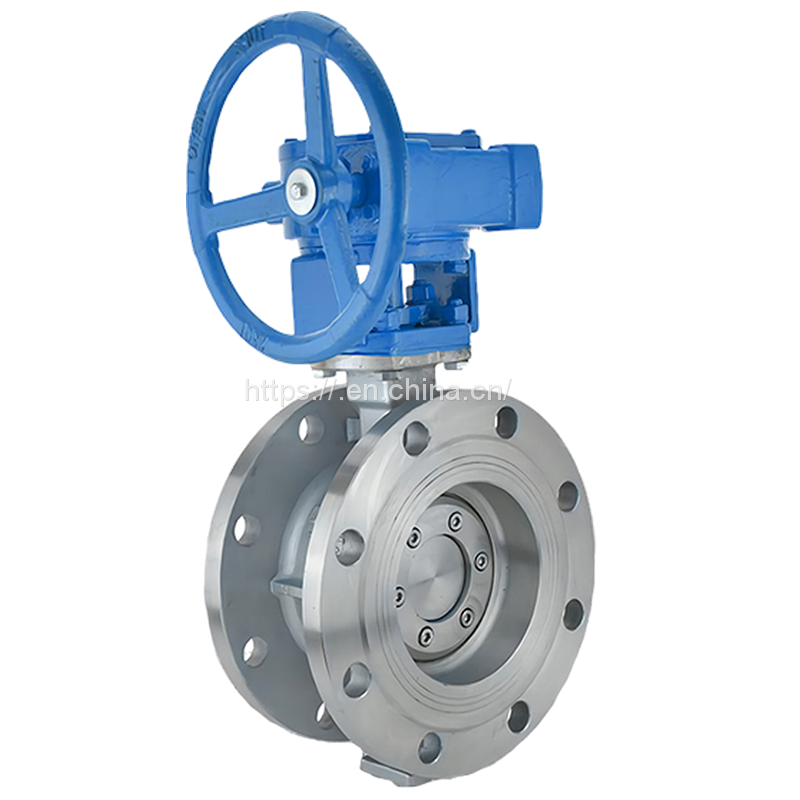

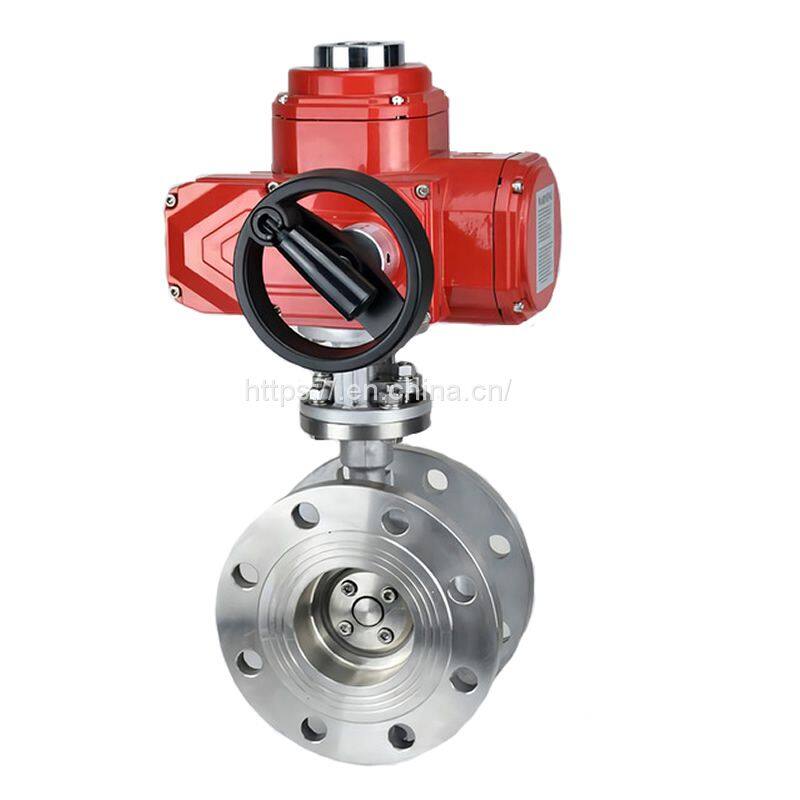

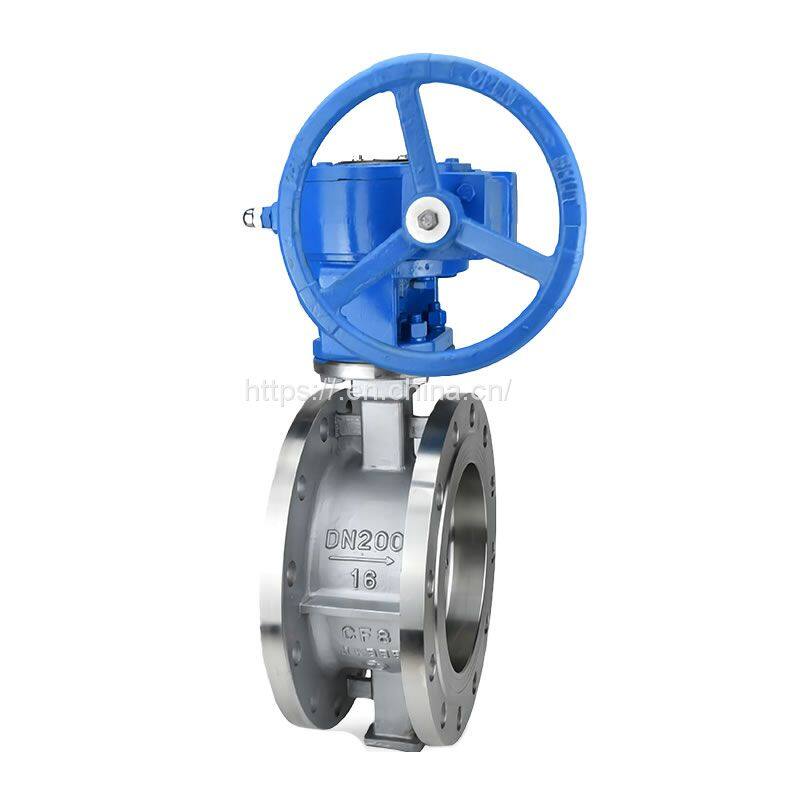

Stainless steel butterfly valve D343W-16P DN100 triple eccentric metal hard seal flange butterfly valve

D343H/D373H flange/wafer type stainless steel butterfly valve, the valve body material is made of 304 or 316 stainless steel, the stainless steel material has strong corrosion resistance and excellent performance. It is suitable for occasions with harsh working conditions and high requirements. The valve body structure adopts multi-layer metal hard sealing structure, which has good sealing effect and reliability. Butterfly valve is widely used in metallurgy, electric power, petrochemical industry, water supply and drainage, municipal construction and other industries with medium temperature ≤425℃ On the pipeline, it is used for regulating flow and load-cutting fluid.

Executive standard:

Design specification: GB/T 12238

Structure length: GB/T 12221

Flange connection: GB/T 9113

Test and inspection: GB/T 13927

Product identification: GB/T 12220

Performance parameters:

model

D343H-10
D343H-16
D343H-25
D343H-40

D343H-10P
D343H-16P
D343H-25P
D343H-40P

D343H-10R
D343H-16R
D343H-25R
D343H-40R

model（MPa）

1.0~4.0


proper temperature（℃）

≤425

≤200

Applicable media

Water, oil or non-corrosive media

Nitric acid medium

Acetic acid medium

Material

Valve body, butterfly plate

WCB

CF8/304

CF3M/316L

stem

2Cr13

304

316L

Body sealing surface

Surfacing 507

－

－

Butterfly plate sealing surface

304+ flexible graphite

304＋PTFE

304＋PTFE

filler

Flexible graphite

PTFE

PTFE



D3/6/943H-10/16/25/Main outline and connection dimensions of series butterfly valve　　　　　　　　(:mm)

Nominal Tongjing(DN) Main dimensions Flange size and bolt size









1.0MPa 1.6MPa 2.5MPa









L H1 H D D1 n-Фd D D1 n-Фd D D1 n-Фd
50 108 350 112 165 125 4-18 165 125 4-18 165 125 4-18
65 112 370 115 185 145 4-18 185 145 4-18 185 145 8-18
80 114 380 120 200 160 4-18 200 160 8-18 200 160 8-18
100 127 420 138 220 180 8-18 220 180 8-18 235 190 8-22
125 140 460 164 250 210 8-18 250 210 8-22 270 220 8-26
150 140 555 175 285 240 8-22 285 240 8-22 300 250 8-26
200 152 760 200 340 295 8-22 340 295 12-22 360 310 12-26
250 165 830 243 395 350 12-22 405 355 12-26 425 370 12-30
300 178 895 250 445 400 12-22 460 410 12-26 485 430 16-30
350 190 950 280 505 460 16-22 520 470 16-26 555 490 16-33
400 216 1190 305 565 515 16-26 580 525 16-30 620 550 16-36
450 222 1255 350 615 565 20-26 640 585 20-30 670 600 20-36
500 229 1305 380 670 620 20-26 715 650 20-33 730 660 20-36
600 267 1340 445 780 725 20-30 840 770 20-36 845 770 20-39
700 292 1520 480 895 840 24-30 910 840 24-36 960 875 24-42
800 318 1710 530 1015 950 24-33 1025 950 24-39 1085 990 24-48
900 330 1810 580 1115 1050 28-33 1125 1050 28-39 1185 1090 28-48
1000 410 1960 650 1230 1160 28-36 1255 1170 28-42 1320 1210 28-56
1200 470 2250 760 1455 1380 32-39 1485 1390 32-48 1530 1420 32-56
1400 530 2435 850 1675 1590 36-42 1685 1590 36-48 1755 1640 36-62
1600 600 2780 1030 1915 1820 40-48 1930 1820 40-56 1975 1860 40-62
1800 670 3020 1230 2115 2020 44-48 2130 2020 44-56 2195 2070 44-70
2000 760 3270 1350 2325 2230 48-48 2345 2230 48-62 2425 2300 48-70
