Product Description

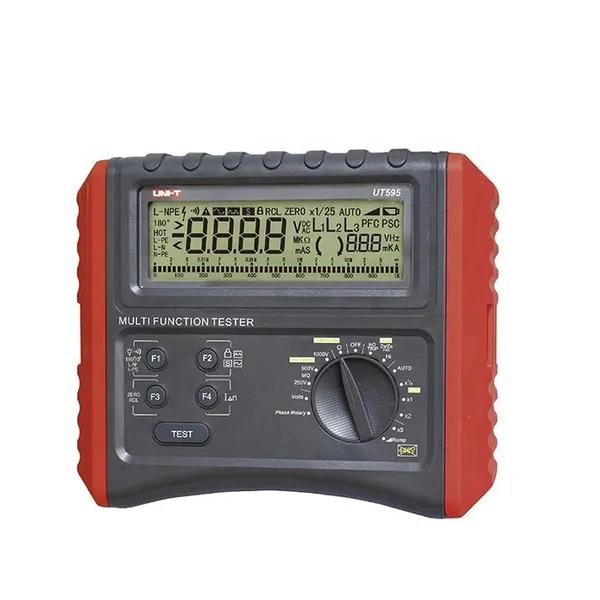

UT595 Multifunction Loop Testers Earth Ground Line Loop Impedance Tester Insulation Resistance Meter Rcd Protection
Loop Testers UT595 description:
UT593/UT595 is a multifunction digital safety testing instrument, designed with combin-ation of large-scale integrated analog & digital circuits and micro-processor chip. It mai-nly measures RCD, line/loop impedance, continuity, insulation resistance, DC and AC voltage, phase sequence, featuring versatile functionality, higher accuracy, stable perfor-mance and ease of use. The instrument is widely used to measure RCD, insulation and earth connections for various equipments, and an ideal tool for testing, inspection and maintenance badly needed for various electric devices and RCDs.
HZ Multifunctions Loop Tester UT595 parameter:
Specifications | Range | Best Accuracy | |
Model | UT595 | ||
Insulation Resistance (Ω) | Test Voltages | 250V/500V/1000V | ±10% |
250V | 0.05MΩ~250MΩ | ±(5%+5) | |
500V | 0.05MΩ~500MΩ | ||
1000V | 0.05MΩ~1000MΩ | ||
Short-Circuit Current | <2mA | √ | |
Low Resistance Continuity Test(Ω) | Range | 0.00Ω~199Ω | ±(2%+5) |
Test Current | 0.00~2Ω: >200mA | √ | |
Line Impedance (Ω) | Range | 0.01Ω~2000Ω | ±(5%+5) |
Operational Voltage(Freq.) | 195V~440V(45Hz~65Hz) | √ | |
Test Current | 20A | √ | |
PFC Range | 0KA~26KA | √ | |
Loop Impedance (Ω) | Range | 0.01Ω~2000Ω | ±(5%+5) |
Operational Voltage(Freq.) | 195V~253V(45Hz~65Hz) | √ | |
Test Current | 20A | √ | |
PFC Range | 0KA~26KA | √ | |
Loop Impedance Without Tripping(Ω) | Range | 1.00Ω~2000Ω | ±(5%+5) |
Operational Voltage(Freq.) | 195V~253V(45Hz~65Hz) | √ | |
Test Current | 15mA | √ | |
PFC Range | 0KA~26KA | √ | |
RCD | Operational Voltage(Freq.) | 195V~253V(45Hz~65Hz) | √ |
Test Current | 10mA/30mA/100mA/300mA/500mA | ±10% | |
Trip Time | ×1/2 *I n Range:0ms~2000ms | ±(5%+5) | |
×1 *I n Range:0ms~300ms | ±(5%+5) | ||
×1 *I n Range:0ms~500ms(Selective Countdown) | ±(5%+5) | ||
×2 *I n Range:0ms~300ms | ±(5%+5) | ||
×2 *I n Range:0ms~500ms(Selective Countdown) | ±(5%+5) | ||
×5 *I n Range:0ms~40ms | ±(5%+5) | ||
Phase Sequence Test | Operational Voltage(Freq.) | 100V~440V(45Hz~65Hz) | √ |
Indication | Order:L1→ L2→ L3 Positive change;L1→ L3→ L2 To reverse | √ | |
RCD Measurement RAMP Slope | Test Current Range | 10mA/30mA/100mA/300mA/500mA | ±10% |
AC Voltage (V) | Range | 0V~440V | ±(5%+2) |
Frequency Response | 45Hz~60Hz | √ | |
Resolution | 1V | √ | |
Features | |||
Display Count | 9999 | ||
Auto Power Off | √ | ||
Low Battery Indication | √ | ||
Data Logging | √ | ||
LCD Backlight | √ | ||
Auto Half-wave Test | √ | ||
RCD Countdown Measurement | 30 Seconds | √ | |
RCD Half-wave Test | √ | ||
Phase Switch(RCD) | 0°and 180° | √ | |
General Characteristic | |||
Power | 1.5V Batteries(LR6) X 6 | ||
LCD Size | 125mm X 37mm | ||
Product Color | Red and Grey | ||
Product Net Weight | 1000g | ||
Product Size | 210mm X 175mm X90 mm | ||
Standard Accessories | Batteries, Test Lead (1 x Green, 1x Black, 1 x Red), Specialized Test Lead, Remote Control Test Lead | ||
Standard Individual Packing | Gift Box, Tool Box, User Manual | ||
Standard Quantity Per Carton | 4 PCs | ||
Standard Carton Measurement | 510mm X 330mm X 300mm (0.051CBM Per Standard Carton) | ||
Standard Carton Gross Weight | 15Kg |
