HPS2526 four-probe ITO film square resistance tester

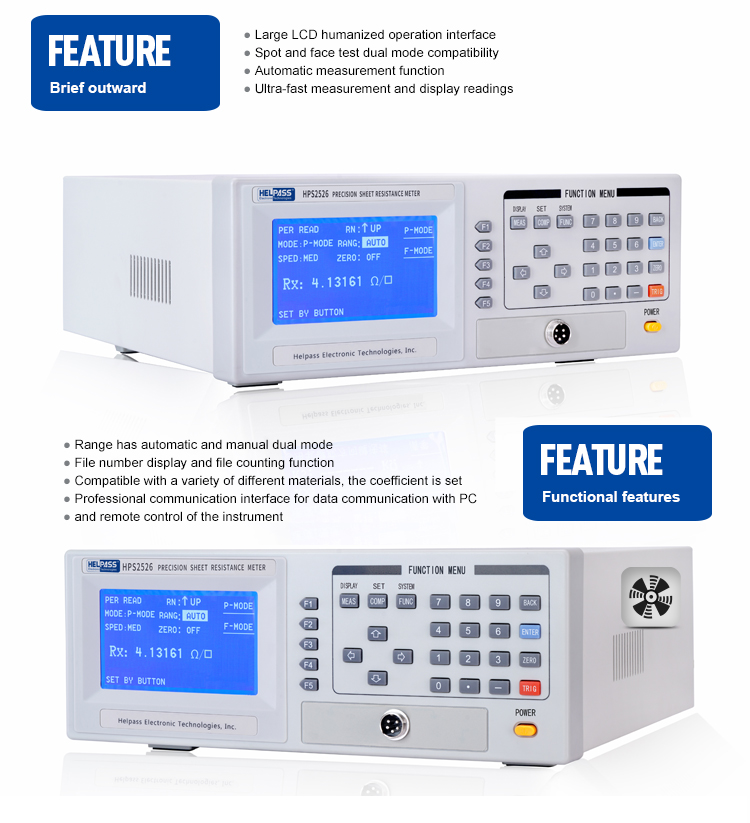

Features

Displayer

HD LCD display

Display Digits

5Digits

Resistance measurement

Basic Accuracy

0.1%

Measurement Range

0.01mΩ/cm² -200kΩ/cm²

Measurement Mode

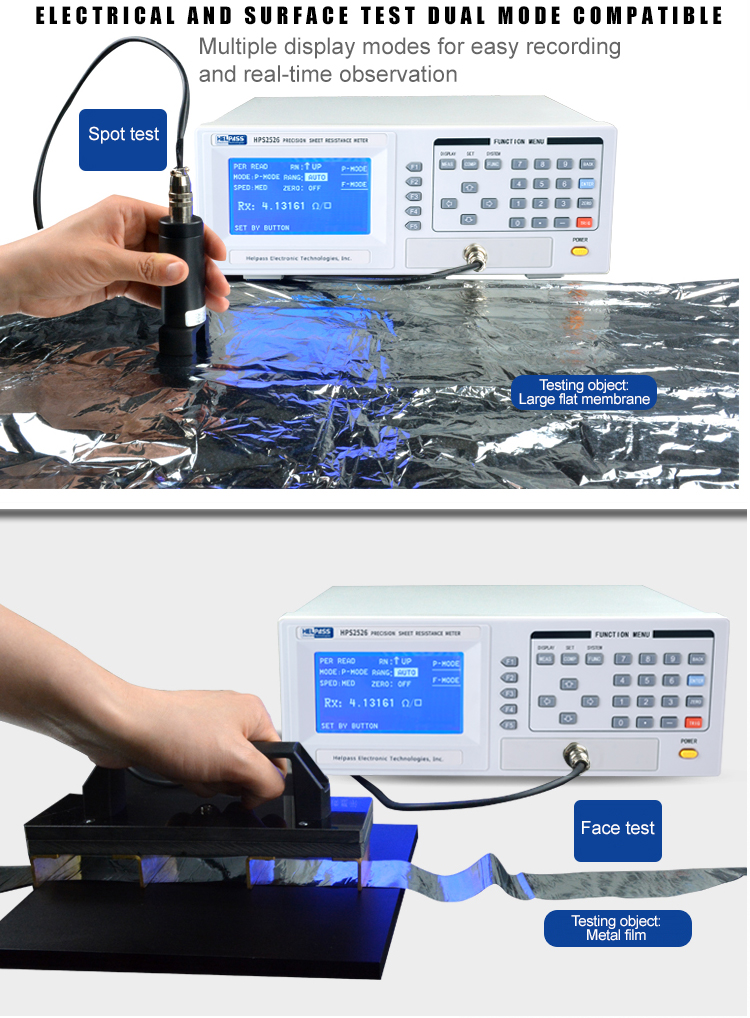

Point measurement, Surface measurement

Measurement function

Range Mode

Auto, Manual

Measurement

Speed(time/sec)

Slow:2  Medium:2  Fast:6

Trigger Mode

Internal,Manual,External

Correction

Special fixture Open-circuit Zero-Adjust

Measurement Terminals

Four-wire system(2 detection terminals, 2 drive terminals),five terminals

Sorting and interfaces

Comparator

Built-in comparator:GD/HI/LO

Beep

OFF,IN,HI,LO(Adjustable Volume)

Interface

RS-232C interface/HANDLER

General Specification

Working Environment

0°C -40°C ,≤90%RH

Power Supply

198V -242V(AC),47.5Hz -63Hz

Power

Consumption

≤30 VA
