High Flux Tubular Ultrafiltration Membrane and Equipment

High Flux Tubular Ultrafiltration Membrane and Equipment thumbnail-1
High Flux Tubular Ultrafiltration Membrane and Equipment thumbnail-2
High Flux Tubular Ultrafiltration Membrane and Equipment thumbnail-3
High Flux Tubular Ultrafiltration Membrane and Equipment thumbnail-4
High Flux Tubular Ultrafiltration Membrane and Equipment photo-1
High Flux Tubular Ultrafiltration Membrane and Equipment photo-2
High Flux Tubular Ultrafiltration Membrane and Equipment photo-3
High Flux Tubular Ultrafiltration Membrane and Equipment photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
BWF-04
Contact Supplier Request Quote Chat Now
Wuhan Bwf Environmental Engineering Co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan/Shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number BWF-04

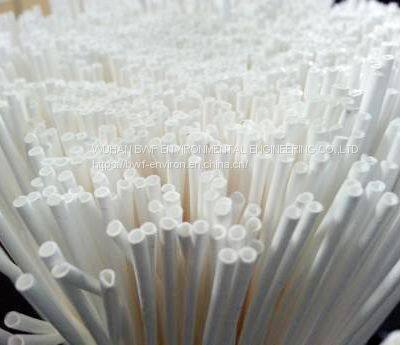

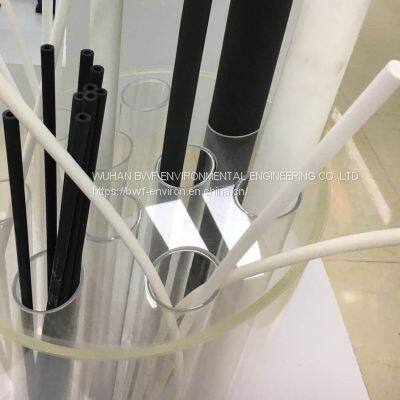

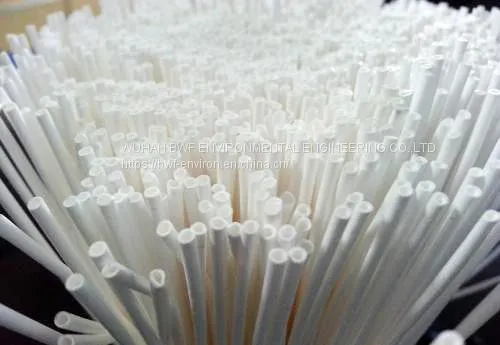

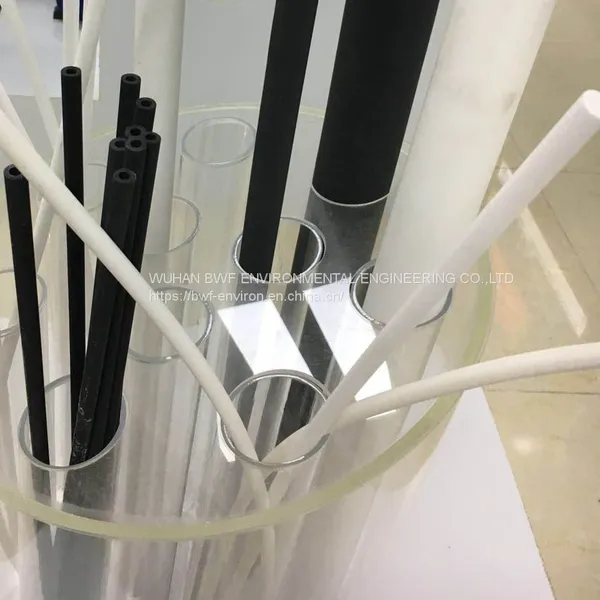

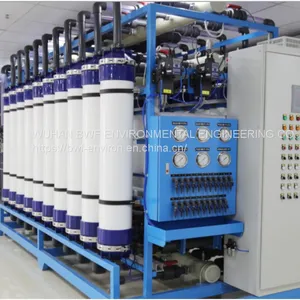

Tubular UF membrane and system


Features:


1) 250~500L.m2/h flux

2) No clogging and fouling

3) application range:pH 0-14

4) longer lifespan

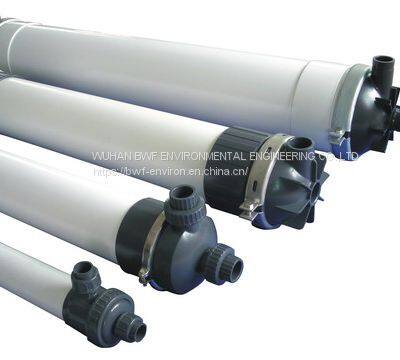

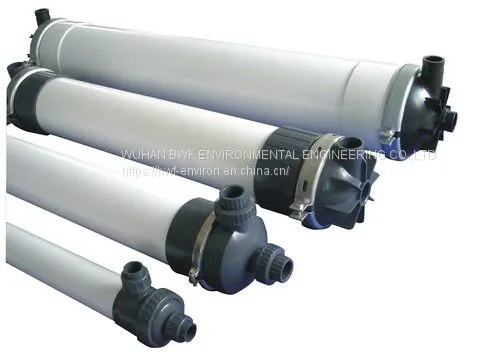

Technical parameters of the membrane modules

Membrane module diameter

A:Φ250×1500mm

B:Φ250×2000mm

Flux（25℃，0.1MPa）

250-500L/（m2·h）

Effective membrane area

A: 10.6m2 ; B: 14.6m2

Max. feed pressure

0.25MPa

Mean pore diameter

0.001-1.0μm

Min. feed pressure

0-0.18MPa

Membrane materials

Supports: UHMW-PE

Separation layer：PVDF

Back-washing pressure

≤0.45MPa

Membrane outer diameter

Φ10mm

Back-washing methods

Combined pulse back-washing

Membrane inner diameter

Φ5mm

Water consumption during   back-washing

3-5%

Shell material of membrane module

UPVC

Air consumption during   back-washing

5 NL/m2

5 NL/m2  every time

Feed turbidity

≤3500NTU

Air back-washing time

60-120s

Permeate turbidity

＜0.1NTU

Chemical cleaning cycle

7-45day every time


Power consumption per ton water

0.16-0.32 W

Water recovery

94-97%

Membrane lifetime

More than 5 years

Filtration type

Dead-end/ cross-flow


Product Tags: UF , ultrafiltration , UF system , filtration , hollow fiber membrane
