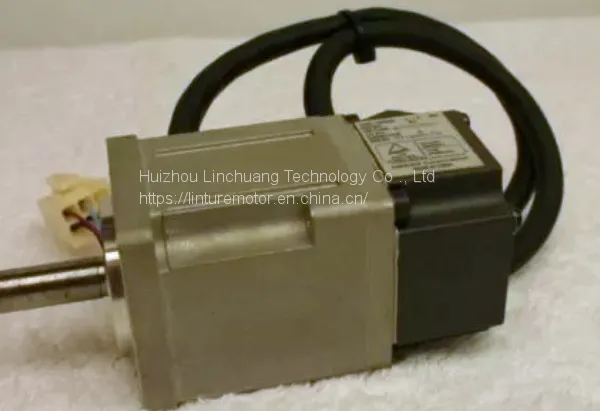

R88M-G05030H-T OMRON Industrial Single Phase Servo Motor Modular

R88M-G05030H-T OMRON Industrial Single Phase Servo Motor Modular thumbnail-1
R88M-G05030H-T OMRON Industrial Single Phase Servo Motor Modular photo-1
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
OMRON
Place of Origin:
China
Model Number:
R88M-G05030H-T
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Bao'an international airport
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OMRON
Place of Origin China
Model Number R88M-G05030H-T
Brand: OMRON Model: R88M-G05030H-T
Origion: Japan

High Light: ewing machine servo motor,ac servo motor


Industrial Servo Motor R88M-G05030H-T OMRON Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz



Characteristics100-VAC Input Models
for Single-phase input type


Item R88D-KN01L-
ECT-L		 R88D-KN02L-
ECT-L		 R88D-KN04L-
ECT-L
Input
power
supply		 Main
circuit		 Power supply capacity 0.4 KVA 0.5 KVA 0.9 KVA
Power supply voltage Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz
Rated current 2.6 A 4.3 A 7.6 A
Heat value *1 16.6 W 21 W 25 W
Control
circuit		 Power supply voltage Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz
Heat value *1 4 W 4 W 4 W
Mass Approx. 0.8 kg Approx. 1.0 kg Approx. 1.6 kg
Maximum
motor
capacity		 Motor Rated Rms Current 1.7 Arms 2.5 Arms 4.6 Arms
Maximum current of motor 5.1 Arms 7.5 Arms 13.8 Arms


*1. The heat value is given for rated operation.

200-VAC Input Models
for Single-phase/Three-phase input type


Item R88D-
KN01H-
ECT-L		 R88D-
KN02H-
ECT-L		 R88D-
KN04H-
ECT-L		 R88D-
KN08H-
ECT-L		 R88D-
KN10H-
ECT-L		 R88D-
KN15H-
ECT-L
Input
power
supply		 Main
circuit		 Power supply capacity 0.5 KVA 0.5 KVA 0.9 KVA 1.3 KVA 1.8 KVA 2.3 KVA
Power supply voltage Single-phase or 3-phase 200 to 240 VAC (170 to 264 VAC) 50/60 Hz
Rated current 1.6/0.9 A
*1		 2.4/1.3 A
*1		 4.1/2.4 A
*1		 6.6/3.6 A
*1		 9.1/5.2 A
*1		 14.2/8.1 A
*1
Heat value *2 14.3/
13.7 W *1		 23/19 W
*1		 33/24 W
*1		 30/35.5 W
*1		 57/49 W
*1		 104/93 W
*1
Control
circuit		 Power supply voltage Single-phase 200 to 240 VAC (170 to 264 VAC) 50/60 Hz
Heat value *2 4 W 4 W 4 W 4 W 7 W 7 W
Mass Approx.
0.8 kg		 Approx.
0.8 kg		 Approx.
1.0 kg		 Approx.
1.6 kg		 Approx.
1.8 kg		 Approx.
1.8 kg
Maximum
motor
capacity		 Rated effective current of
motor		 1.2 Arms 1.6 Arms 2.6 Arms 4.1 Arms 5.9 Arms 9.4 Arms
Maximum current of motor 3.6 Arms 4.8 Arms 7.8 Arms 12.3 Arms 16.9 Arms 28.2 Arms



*1. The first value is for single-phase input power and the second value is for 3-phase input power.
*2. The heat value is given for rated operation.




The G5 Series is perfectly integrated into the new Sysmac automation platform. The servo is fully configured through the one software Sysmac Studio that includes configuration, programming, simulation and monitoring for the complete machine. The built-in EtherCAT connectivity with the distributed clock functionality allows accurate synchronization between all servos with less than 1μ jitter. The G5 Series also simplifies your mechanical and electrical design by including double registration input, full closed loop and multi-drive safety functionality.




HIGHER PRODUCTIVITY125 μs system cycle

• Faster machine speed keeping same accuracy
• Accurate profile generation in the controller
• The 23 bit high resolution encoder in combination with the improved loop control provide an accurate following profile



INTEGRATED SAFETYSafety control via EtherCAT

• Simplified safety installation
• Reduction of safety devices
• Safety function built-in: Fail Safe over EtherCAT (FSoE) Safe Torque Off
• Safety approval: EN ISO 13849-1(Cat.3 PLd), EN61508(SIL2), EN62061(SIL2), EN61800-5-2(STO)
• Troubleshooter integrated with Sysmac Studio


Industrial Servo Motor R88M-G05030H-T OMRON Single-phase 100 to 120 VAC (85 to 132 VAC) 50/60 Hz 0
