Product Description
Products Description
Automatic PVC Rubber Gasket Welder Fridge/Refrigerator Door Gasket Welding Machine
WUXi DIZO ULTRASONIC TECHNOLOGY CO.,LTD is a factory who specialized in developing and manufacturing of plastic welding equipment. Including varies of special use equipment,such as ultrasonic welding machine, gasket welding machine, pvc high frequency machine,huge plastic welding machine, special use auto parts welding equipment, door panel welding line etc.
Product name | Refrigerator gasket welding machine |
Voltage: | 220V/380V |
Power: | 2.1kw/2.4kw |
Frequency: | 50-60HZ |
Application: | Used in refrigerator door gasket/rubber gasket welding |
Function: | Jointing of the refrigerator sealing corner |
Service: | OEM &OEM, Customized Specification |
Core selling points: | Compact structure/ Easy operation /Accurate temperature controlling |
Details Images

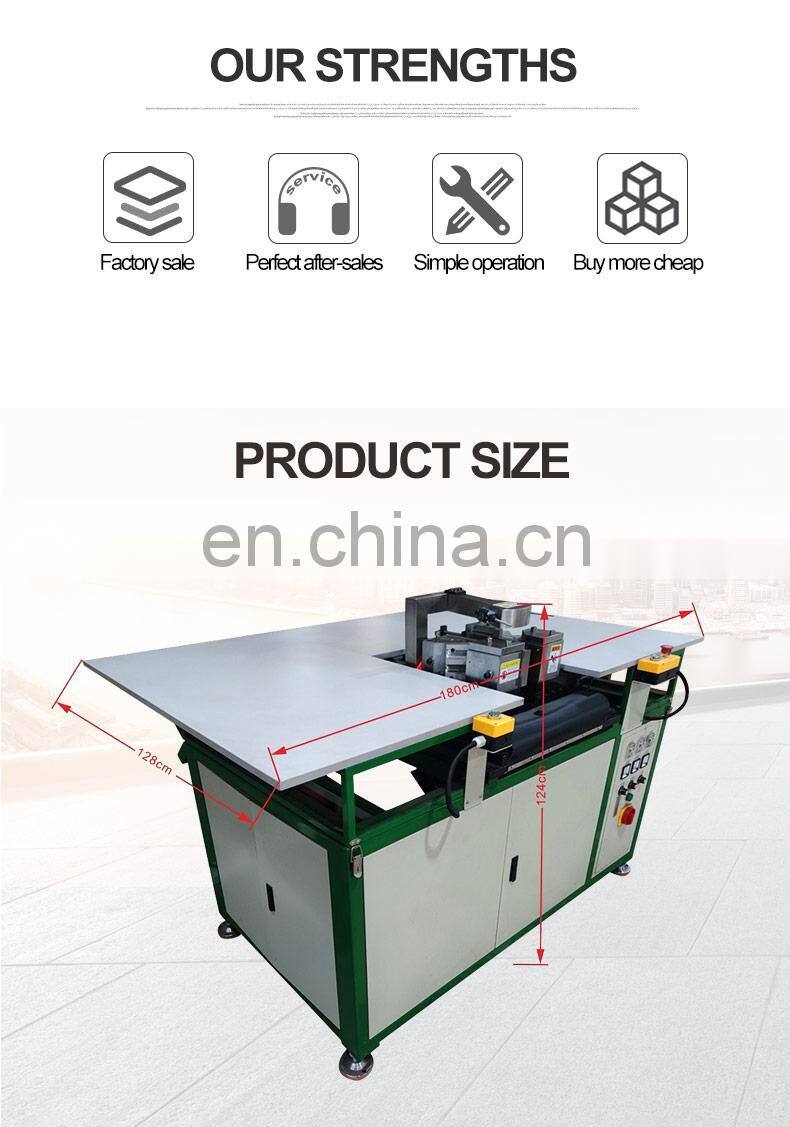

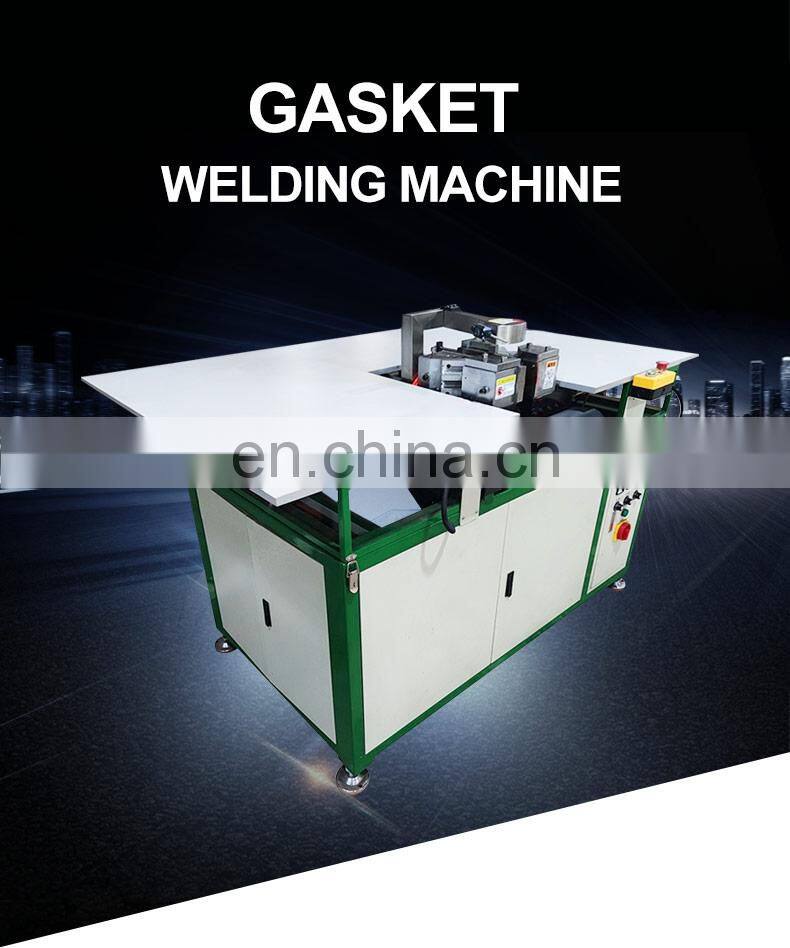

Refrigerator Gasket Welding Machine
This fridge / refrigerator door gasket rubber seal corner welder / welding / joint / soldermachine is specially used in welding refrigerator door gasket, rubber gasket, which has the features of compact structure, easy operation and accurate temperature controlling.
Features:

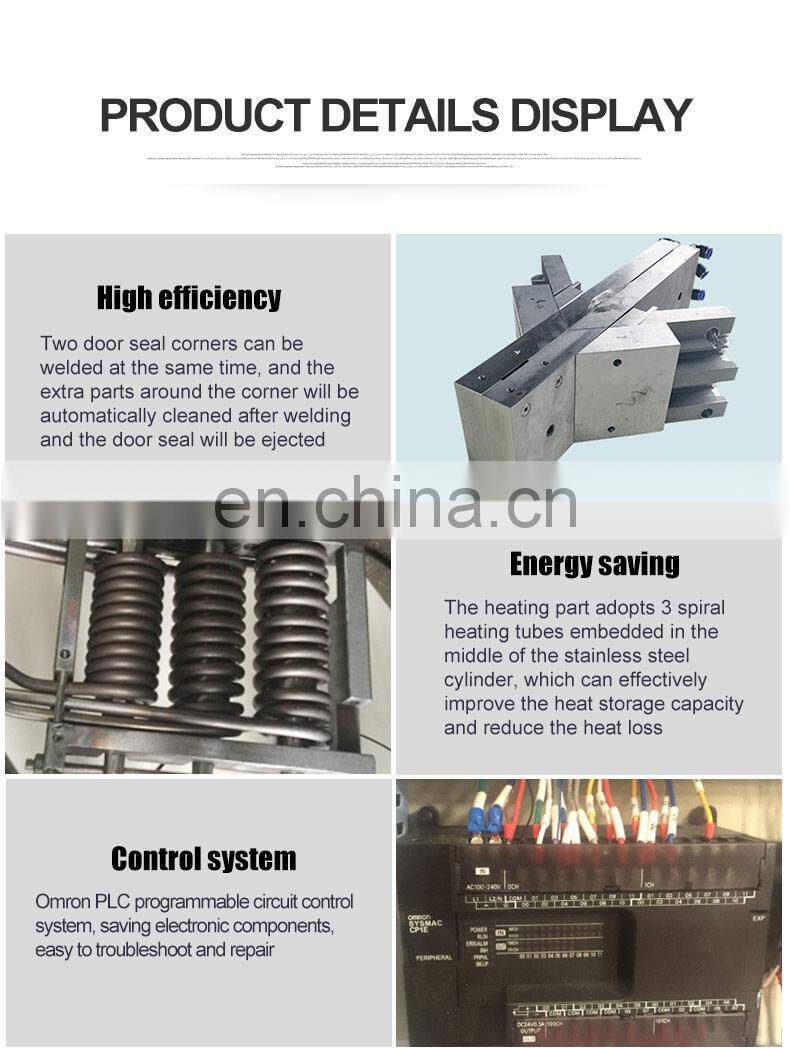

1) This machine adopts advanced Omron PLC control system, famous-brand cylinder, and imported electrical parts to keep machine high-automatic, high-efficient, easy operating and long-service time.
2) This machine can weld 2 gasket corners every time, after welding, it cleans (trims) extra material automatically to make it nice, firm and beautiful surface of welding corner.
3) The welding process is: heating -vacuum adsorption - welding -inner cooling -outer cooling -pops up automatically.

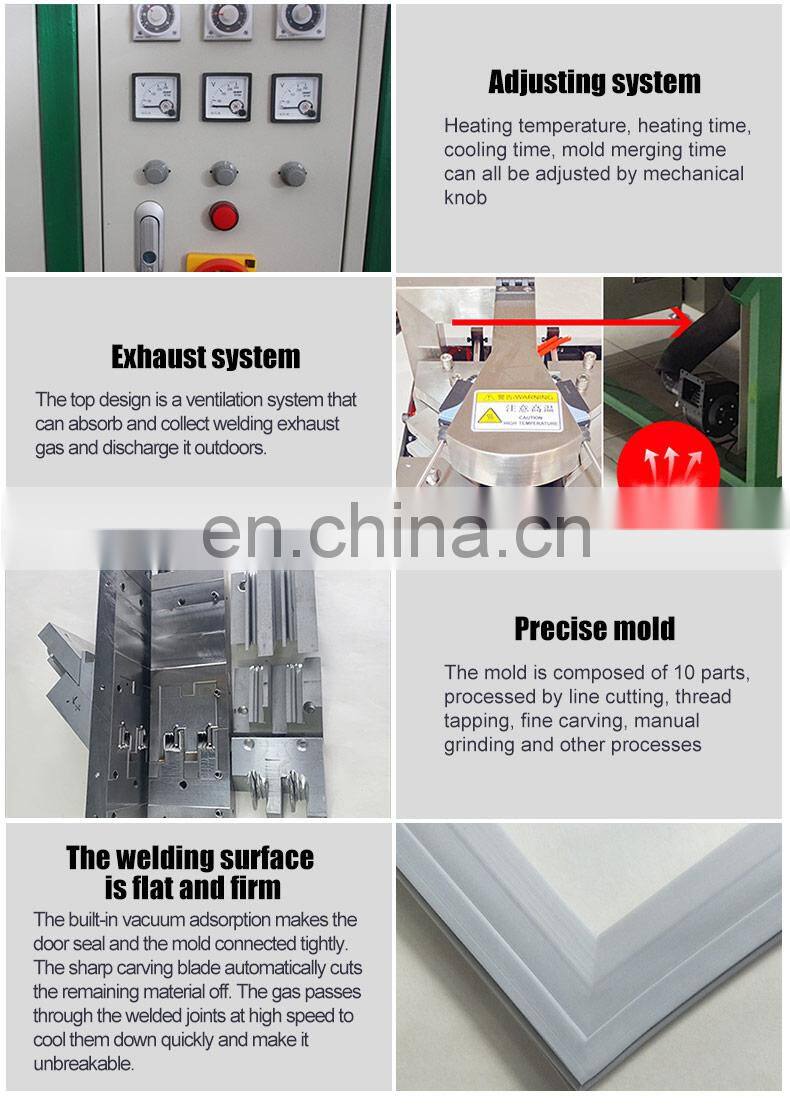

4) the welding mould goes with vacuum system, and inner cooling system, which can make the surface of gasket corner smooth and the inner cooling system can avoid gasket zones sticking together.

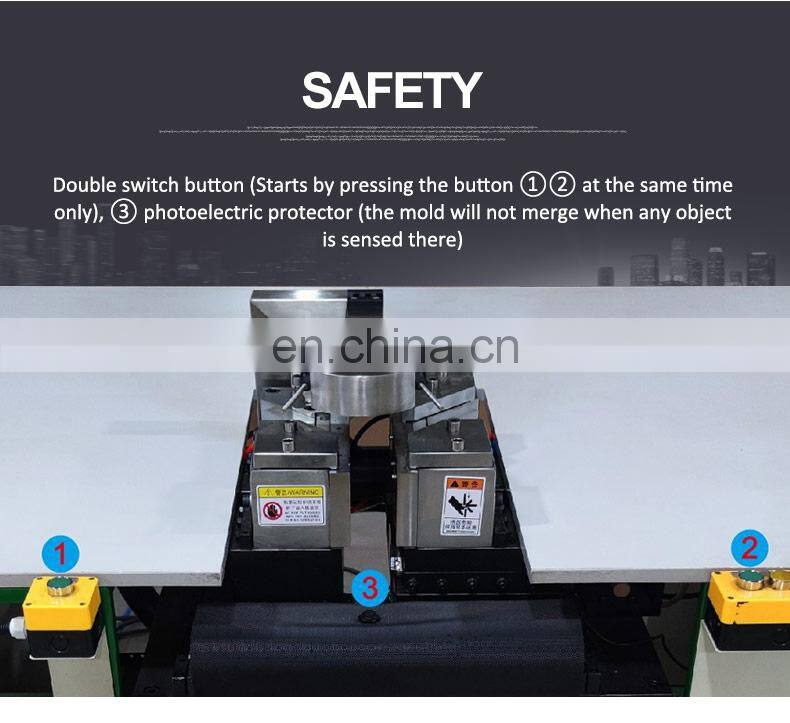

5) Photoelectrical protection system is used to protect hands from being pinched during operation.
6) Welding speed is 11~14 second/ two corners, the output can reach 600~650 sets every 10 hours.
7) This machine has earned CE certificate and been exported to different countries all over the world.
Ralated Products
Company Profile
Q1: Are you a manufacturer? |
A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds. |
Q2: Where is your factory? Can I visit your factory? |
A2: Dizo located in the city of Wuxi. |
Q3: How to buy your machine? |
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number. |
Q4: Are we still need to install the machine after we got? |
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well. |
Q5: How about your warranty? |
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine. |
Q6: How can you guarantee we receive a good performance product? |
A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome. |
Q7: How soon can you deliver the equipment? |
A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days. |
Q8: Who do I talk to when I want to start an application? |
A8: Dizo has experiences of sales engineers to provide the assistance and support you require. |
Q9: Can I get a discount or can you do something with the price? |
A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance. |
Q10: Packaging & Shipping |
A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard. |
