Large Hot Plate Foam Welding Machine Foam Bonding Welder for Epe Foam Bonding
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
2013
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Large Hydraulic Automatic Servo Hot Plate Welding Machine Plastic Welder for RubberNegotiableMOQ: 1 -
Plastic Hot Plate Welding Machine For PP Toilet Cover/ Plastic PalletNegotiableMOQ: 1
-
Plastic Hot Plate Welding Machine For LED Light / Plastic Shell / Led CoverNegotiableMOQ: 1
-
Factory Direct Sales Plastic Welder Hot Plate Welding Machine For Water TankNegotiableMOQ: 1
-
Automatic Water Tank Hot Plate Welders Plastic Welding MachineNegotiableMOQ: 1
Products Description
Large hot plate foam welder hot plate foam welding machine for epe foam bonding
DIZO company is a professional engaged in ultrasonic industrial equipment, plastic welding equipment, hot riveting welding equipment research and development, production, sales, service as one of the modern high-tech enterprises.
Can provide you with ultrasonic plastic welding machine, hot riveting welding equipment, plastic hot melt welding machine, plastic hot plate welding machine, high frequency welding machine, automobile special welding machine, non-woven special welding machine, non-standard welding machine and ultrasonic welding mold.
Parameter :
Service: | OEM/ODM |
Hot plate size | 800x400 mm Customizable |
Size of upper pressing plate： | 520*240 mm Customizable |
Lower pressure plate dimensions： | 520*240 mm Customizable |
The distance between the upper pressing plate and the lower pressing plate: | 1000 mm Customizable |
Motion control method: | Pneumatic |
Power supply: | 380VAC 3P 50/60Hz |
Core selling points: | Accurate temperature control/Flexible Manufacturing/Low Maintenance Cost/Sustainable/Low Noise Level/High Safety Level/Easy to Operate/Long Service Life/High Rigidity/High-accuracy |

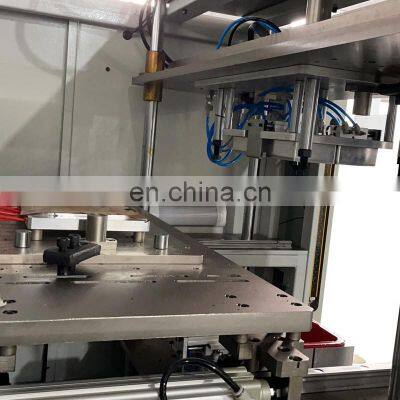

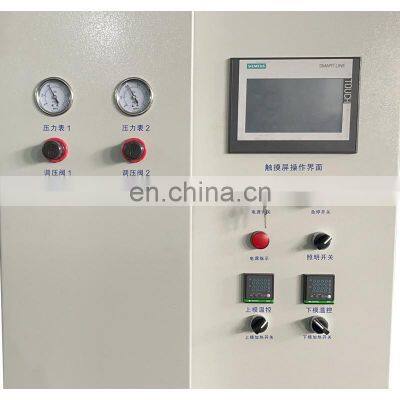

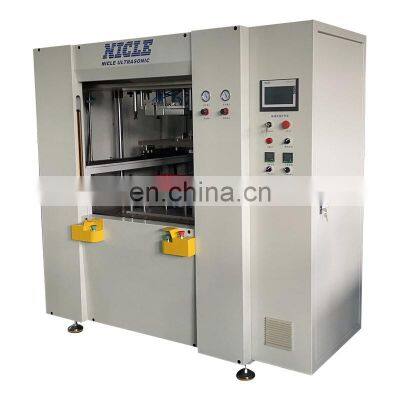

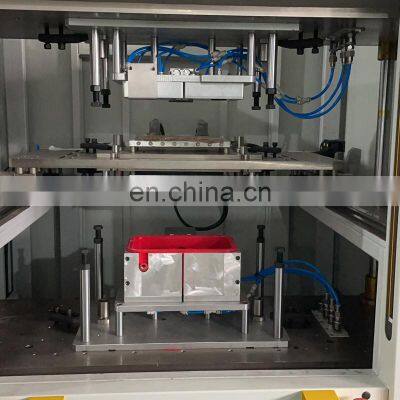

Details Images
Fundamentals of Welding:
Plastic hot plate welding machine is through a heating plate by temperature control to weld plastic parts, using the upper and lower parts of the heating plate welding, with good mechanical device to welding, make up for the ultrasonic welding machine for welding large and special plastic workpiece shortage.

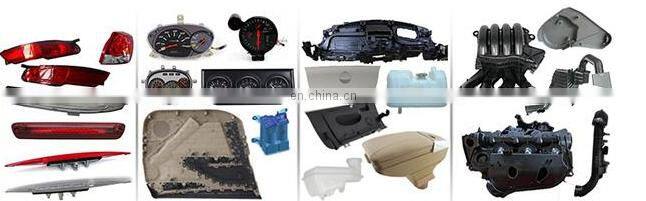

Vertical hot plate plastic welding machine is suitable for the Musical Instruments sound box, electrical products, auto radiator, kettle, plastic fuel tanks, fuel tanks and welding oil pot, bumpers, car dashboard, storage battery, battery, car tail lights, car air inlet pipe, washing machine drum plastic balance ring, laundry, dishwasher, water tank, plastic doors and Windows, drug container PP, PP toilet cover, plastic tray, PP Plastic pallet, nut embedding, hot melt riveting point, LED lamp, building template, PP, PE and other thermoplastic materials and welding joint area of large and complex plastic workpiece welding.
Product Advantages
1, plastic hot plate machine can be applied to different sizes of the workpiece, no area limit
2, can be applied to any welding surface, no special requirements
3, the welding surface can allow plastic allowance compensation, welding strength is guaranteed
4, Plastic hot plate welding machine according to the needs of various materials, can adjust the welding program
5. The fixture is fixed on the position of the corresponding upper and lower pressing plates
6. Under the action of the upper and lower pressing plate's power and positioning guide system, it can make the glue parts contact with the hot stamping die for hot stamping at a high speed, smoothly and without impact, and make the glue parts join the material to the molten state
7, in a relatively short period of time to complete a smooth, fast leave the hot die
8, the hot die heating plate and the upper fixture, the lower fixture design into an independent assembly parts, easy to install and handling Product Display :
Company Profile
Q1: Are you a manufacturer? |
A1: For over 15 years DIZO have developed an expertise in plastic joining, we master the design, the manufacturing and the maintenance of molds. |
Q2: Where is your factory? Can I visit your factory? |
A2: Dizo located in the city of Wuxi. |
Q3: How to buy your machine? |
A3: Please advise specific by mail, after confirm with machine model and price, we will sign a PI for confirming when the first deposit was done, machine manufacture begins, When the balance is complete we will ship out and provide the tracking number. |
Q4: Are we still need to install the machine after we got? |
A4: All of the machines will be tested ready before shipping, video, and manual will attached for use and master the machine well. |
Q5: How about your warranty? |
A5: 1. All of our products for one year warranty; 2. 24-hour telephone service; 3. A large stock of components and parts, easily worn parts; 4. Toolkit will attach with Machine. |
Q6: How can you guarantee we receive a good performance product? |
A6: Dizo applied series inspection process during production When the machine was finished. QC will provide inspection video and pictures for double check the quality control, and we will send the troubleshoot and solutions if needed; Also third part or customers come to the factory have field inspection is welcome. |
Q7: How soon can you deliver the equipment? |
A7: Dizo will deliver your equipment by within 7 days(stock available); Customized equipment or no inventory machine normally need 15-30days. |
Q8: Who do I talk to when I want to start an application? |
A8: Dizo has experiences of sales engineers to provide the assistance and support you require. |
Q9: Can I get a discount or can you do something with the price? |
A9: Dizo sales contact or Key Account Manager can answer your cost-related questions. Please email us. Thank you in advance. |
Q10: Packaging & Shipping |
A10: Provide sturdy plywood case packaging machines, safety and meet the international export standard. |
