Product Description

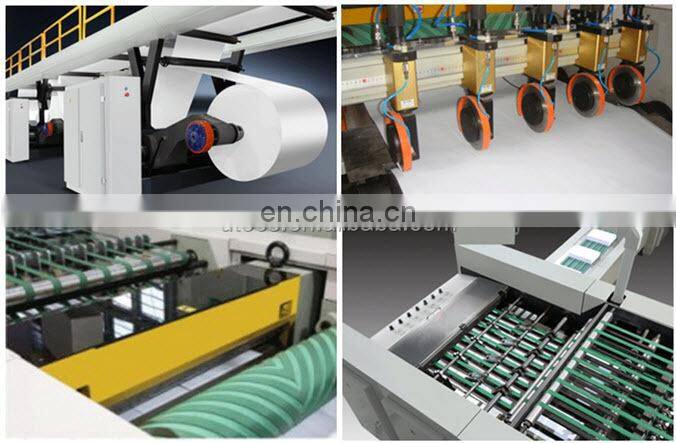

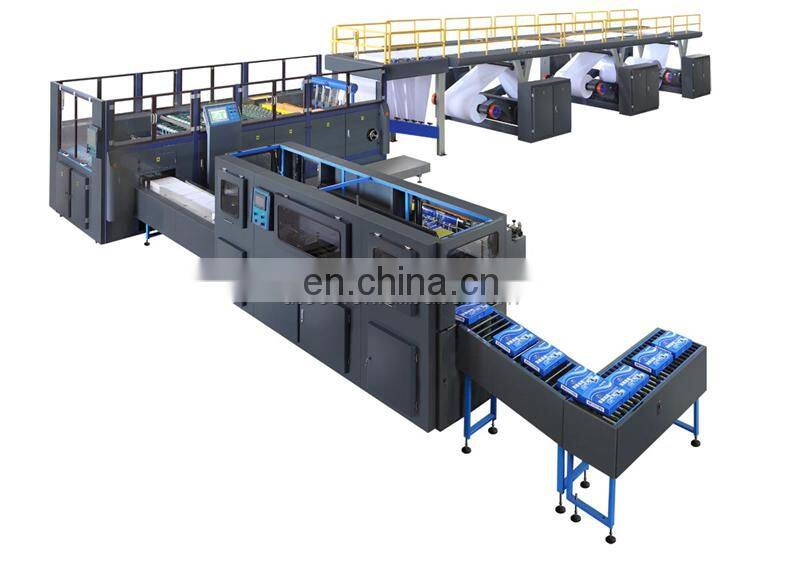

UTHQA4S High Speed A3 A4 paper roll to sheet slitter and packer
Video demonstration only for reference
Video 01: /watch?v=-K4enO1yhVk
Video 02: /watch?v=IHcMlBX0SWk
1.Usage: This machine is special to produce A4 sheets from roll. It can be equipped with 1 roll, or 2rolls, 4 rolls or more rolls etc.
2.Main Technical Parameters
Model | UTHQA4S |
Sheeting Unit | |
Unwinding Paper Reels | 4 |
Number of Pocket | 4 |
Max. Width of Paper Roll(mm) | 845—850 |
Net Cutting Width(mm) | 840 |
Diameter of Paper Roll(mm) | 400-1200 |
Diameter of Core Chuck(mm) | 3”(76.2mm) or 6”(152.4mm) |
Paper GSM(gsm) | 60-100 |
Length of Sheeted Paper (mm) | 297 |
Paper Quantity per Ream (pcs) | 0-500 |
Max. Ream Height(mm) | 65 |
Working Speed of paper feeding(m/min) | 200--250 |
Working Cutting Speed (times/min) | 800 |
Ream Discharging speed (reams/min) | 20-24 |
Max. Knife Loading(gsm) | 400 (4×100) |
Paper cutting accuracy(mm) | ±0.2 |
Requirement for paper Reel | 1.Stable Speed 2. no splice in the jumbo roll 3. Qualified paper . |
Transmission | AC Frequency conversion stepless speed regulating |
Main power source | 380v/50Hz 3phase 4 wires |
Control voltage | 220V AC/22V DC |
Total Power(Kw) | 31 |
Overall dimension(m) (LxWx H) | 17.5×2.75×2.1 |
Weight(T) | 15 |
Wrapping Unit (The standard wrapping unit is only for A4 size) | |
Production Speed(reams/min) | 18--23 |
Motor power(Kw) | 14 |
Gluing power(Kw) | 2.25 |
Compressed air(Mpa) | 0.6—0.8 |
Overwrapping Paper size(mm)(L ×W) | 550-560×386 |
Overall dimension(m) (LxWx H) | 4.53×3.05×1.5 |
Weight (T) | 2 |
Parameters For Packaging Machine:
Productive capacity | 18-22reams/min (depends on the paper quality) |
Function of roll overwrap paper can be automatically cross cut and fed | 18-22 sheets/min |
Wrapping paper size for A4 | 560×385mm |
Wrapping Material | Papper or Plastic film |
Power supply | 380V/3Phase/4Wire |
Motor power | 6.5kw |
Glue Machine Power | 3.7kw |
Diameter of wrapping paper | 700mm |
Air Pressure | 0.6-0.8MPA |
Overall dimension | 4530×3050×1450mm |
Weight | 2000kg |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min product size in mm?
B: What is your paper thickness in GSM?
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
