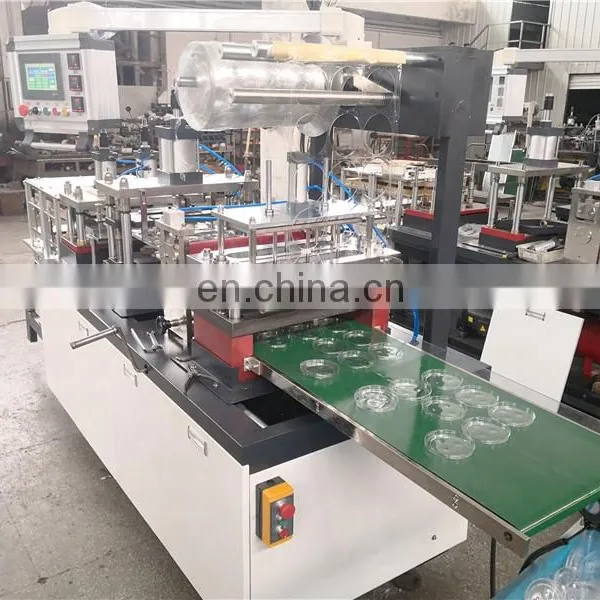

PCL450 Food Grade biscuit chocolate cake plastic tray container forming Making Machine
Video demonstration only for reference
Video: /watch?v=hOQXn-7_QKQ
Features:
1. The machine is designed and manufactured by the standard of “GMP” in medical industry and “QS” in food industry.
2. This machine can do forming, punching and cutting at the same time to avoid the cross-contamination of product.
3. The forming heating plate can open and close automatically, also can delay to start, so as to control and lower the waste of the material during the production.
4. Easy to replace the mould, application to different specifications of products.
5. Design the mould according to customer’s requirements.
6. Applicable projects: the material of HIPS, PVC, PET.
Parameters:
Punch frequency: 15-45(times/min)
Air Consumption: >0.2m3/min
Max Forming Area:430*280 mm
Max Forming depth: 45mm
Stroke Length:0-260 mm
Air Pressure (mpa): 0.4-0.7
Power: 4.5 Kw
Dimension: 3440*1833*1600mm
Weight: 1900 kg
Plastic type: HIPS PVC PET PS ETC.

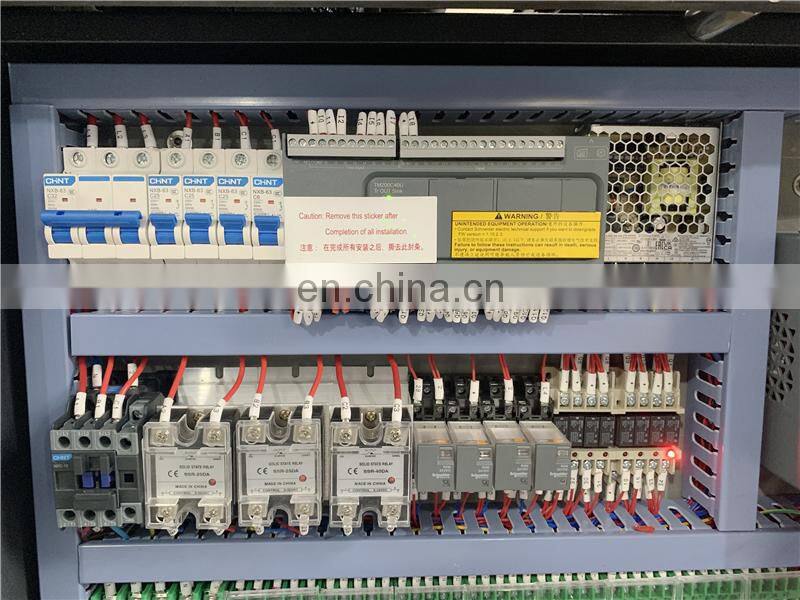

Components Brand List:
|
Components |
Brand: |
Origin: |
|
The Touch Screen |
Schneider |
France |
|
PLC |
Schneider |
France |
|
The Servo Motor |
Schneider |
France |
|
The Servo Driver |
Schneider |
France |
|
Temperature Controller |
Ke Qiang |
China |
|
Circuit Breaker |
Chint |
China |
|
Frequency Converter |
Schneider |
France |
|
Mini Relay |
The Omron |
Japan |
|
Solid-State Relay |
Jin Hai San He |
China |
We reserve the right to change the component brand above without any notification in advance.
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Plastic sheet thickness in mm
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
