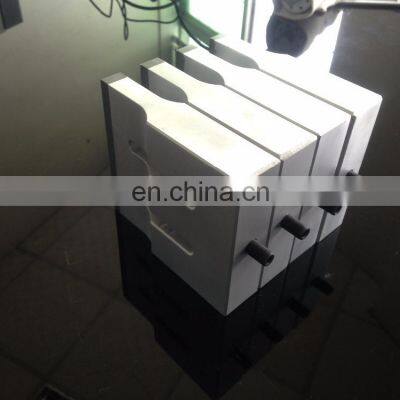

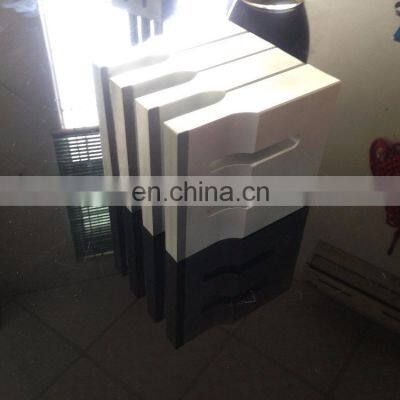

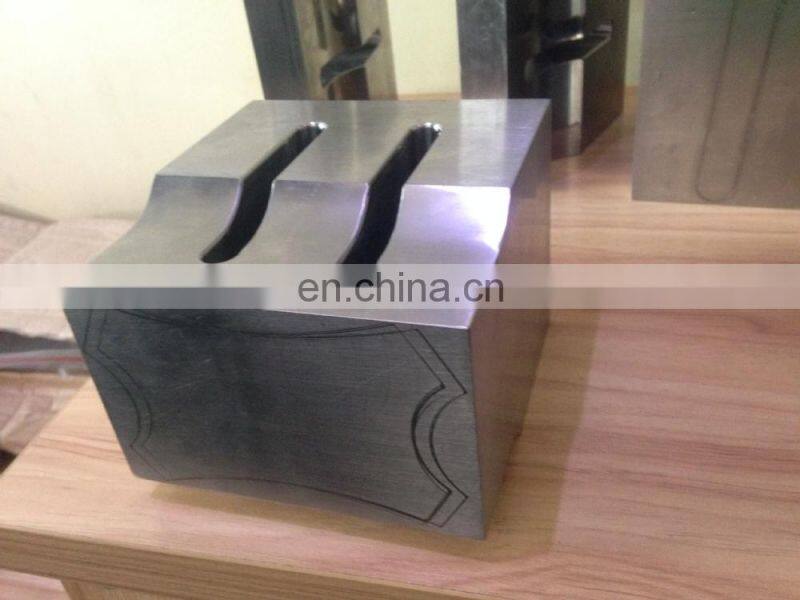

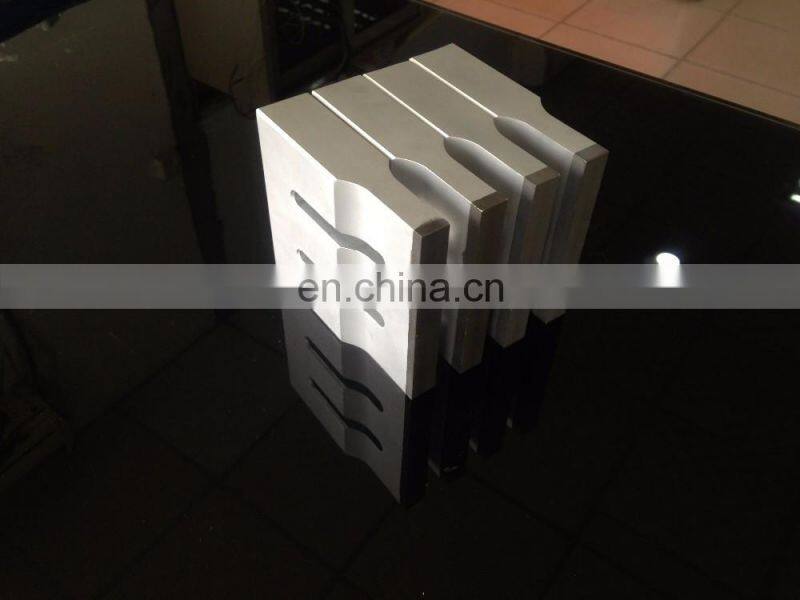

Face Mask Making Machine Ultrasonic Welding Horn
This ultrasonic welding horn is welding the earloop to blank mask.we adopt the USA imported 7075 material for the horn It's the necessary part for face mask making machine . also we can offer the generator ,transducer for the face mask making machine .
We designs and builds both custom and standard ultrasonic welding/cuting horns(sonotrodes) for use on all brands of ultrasonic welders including: Branson, Dukane, Herrmann, Mecasonic, Rinco, Sonics & Materials, Sonobond, and Stapla etc.
IF YOU HAVE ANY INTERESTED,WELCOME TO CONTACT US !
How to Choose The Ultrasonic Welding Machine Horn ?
1. What's the application ?
Welding , staking/frming, Insertion , spot welding , degating, or film sealing etc ?
2. What's the material of horn you can use ?
We need according to your application to introduce the horn material to you . Usually it has Titanium , Steel , Aluminium material this three kind materials. If you make the horn used for welding the plastic toys . Usually we will suggest use the Aluminium material, it's cheaper .If your budget is enough , you can use the Titanium material also . It's not so easy wear .but the price is much expensive .
3. What's the size (welding area ) of horn ?
It's also an factor to choose which material of horn and frequency of horn to you .
4. What's your budget ?
Different material ultrasonic horn the price is different .
This is special for stationary file ultrasonic welding machine. Aslo we can offer the ultrasonic generator ,transducer for your automatic stationary file welding machine .
If you have other type ultrasonic horn (sonotrode ) need make ,please do not hesitate to contact with us .
ULTRASONIC WELDING HORNS
| Typical Applications: |
- Welding |
- Textile Cut & Seal |
| Available Frequencies: |
- 15.0 kHz |
- 30.0 kHz |
| Available Materials: |
- Aerospace Grade Aluminum Note: If you need assistance deciding upon which material to use for your ultrasonic horn(s), please call Industrial Ultrasonics. We will review your application and recommend the proper horn material based upon the requirements of your particular application. |
|
| Horn Design Options: | - Half Wave (standard) - Full Wave (for extended reach) - One and One Half Wave (for maximum reach) - Assembled Horns (back driver with multiple front drivers) |
|
| Face Design Options: | - Flat faced - 2D (per part, part prints, or part files) - 3D (per part files, per part prints, or trace milled per part) - Custom knurls, spot weld details, and staking details |
|
| Ultrasonic Horn Styles: |

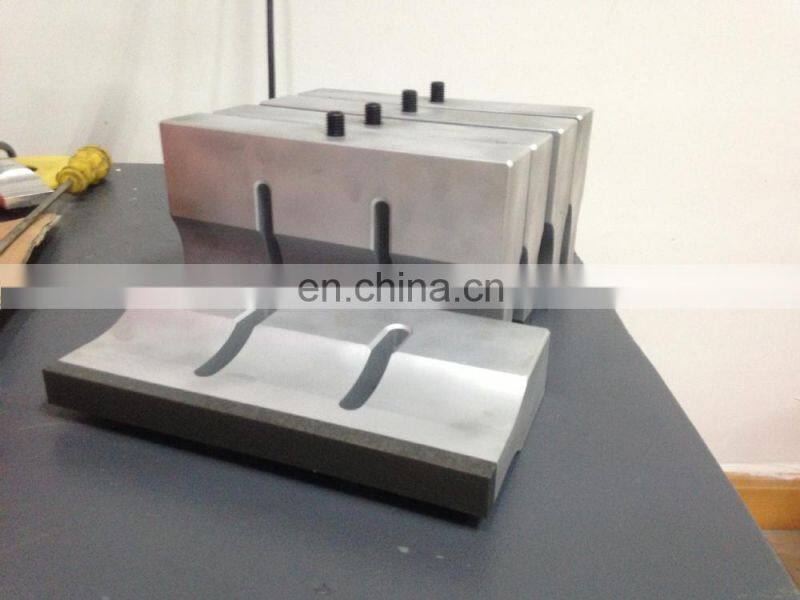

Rectangular and Square Horns - Bar / Blade (No slots or slots only in the “L” dimension) |
|
|

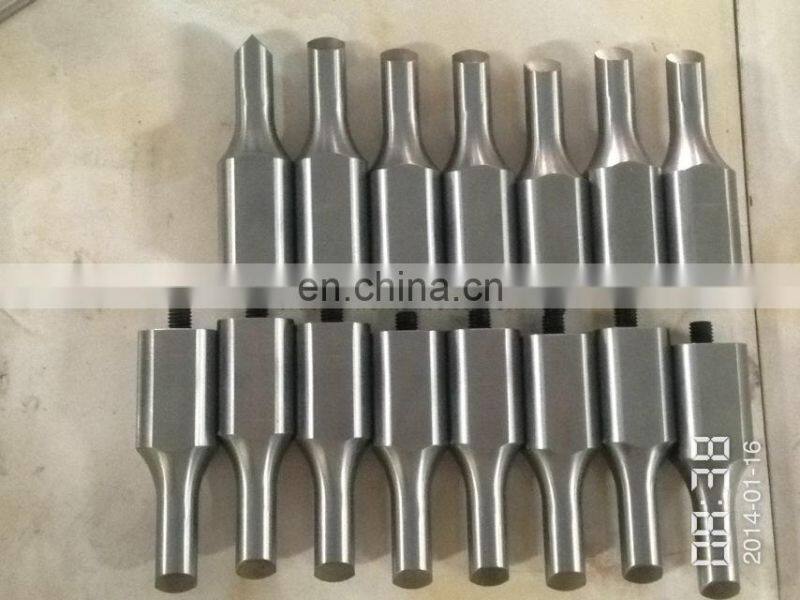

Round Horns - Circular Solid |
||
|
Assembled Horns Assembled horns consist of a back driver with multiple front drivers. This style of horn can be used in applications that require extra part clearance, increased amplitude for large parts, welding on different planes, or spanning large distances between weld locations. |
||
| Horn Coatings: |
Industrial Ultrasonics offers many different coating options that will increase the performance of your ultrasonic horns. Horn coatings are available for the following purposes: - Increase the wear resistance of the face of the horn A partial list of available coatings includes: |
|
Titanium Horn for Label Cutting
Horn for manual fabric cutting machine
Cutting Horn for blind etc fabric cutting
Titanium horn for cutting and sealing
