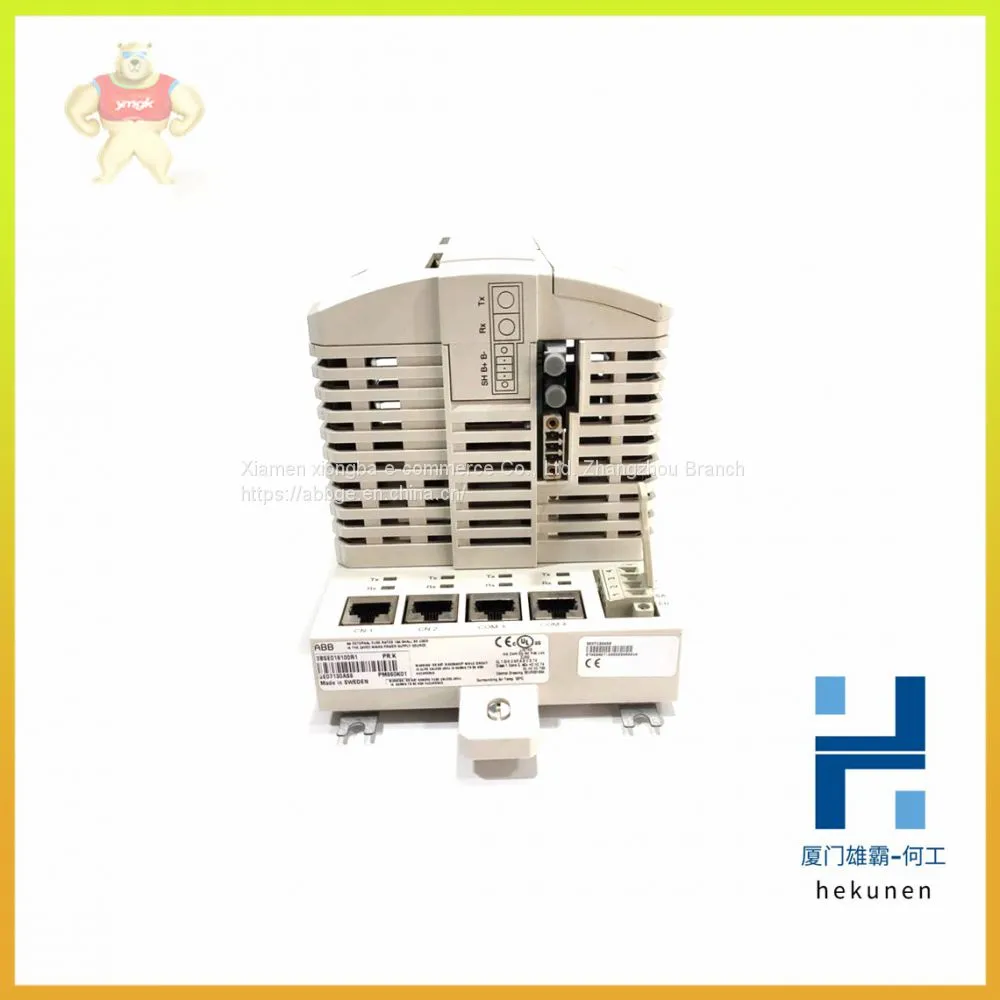

Help CenterPM866K01 PM866K02 ABB Line Interface Module PLC Industrial Control Inventory
Related Products
-
CI862K01 CI865K01 ABB Communication Equipment Module Rs232-c Interface KitUS$ 165 - 260MOQ: 100 Pounds -
AI815 AI820 AI825 ABB Analog Input Module, 4 ChannelsUS$ 100 - 166MOQ: 100 Pounds
-
AI835A AI843 ABB Analog Input Module, 8-Channel ThermocoupleUS$ 10 - 90MOQ: 100 Pounds
-
AI890 AI893 AI895 AI801 ABB Analog Input Modules Can Only be ProgrammedUS$ 190 - 260MOQ: 100 Pounds
-
AO810V2 AO815 AO820 ABB Analog Output Module, 8 Channels, Hart SupportUS$ 13 - 90MOQ: 100 Pounds
PM866K01 PM866K02 ABB Line interface module PLC industrial control inventory
PM866K01 PM866K02 ABB Line interface module PLC industrial control inventory
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
ABB scale flexible DCS AC800F ...
Introduction to AC800F field controller
The AC800F controller can process and diagnose field data through four fieldbus gateways. If required, the AC800F controller can also integrate multiple bus types to work at the same time. And the traditional controller is incomparable in this respect. Due to the compact and robust design of AC800F, it can be installed in the control room or directly in the field distribution box.
Economical and reliable
AC800F provides users with a new automatic control scheme, which integrates the idea of simple engineering into an open and advanced system structure:
*Omnidirectional redundancy design
*Free choice: PROFIBUS, foundation fieldbus or Hart, or mixed application in one controller
*Simple and efficient engineering: support FDT / DTM
*Only one set of tool software package (CBF) is required for the project from design, debugging to system maintenance and diagnosis; Asset optimization and batch processing
*The system engineering covers the management configuration of field bus and equipment
*Internal integration of web server technology for remote diagnosis
Technical parameters of AC800F field controller
Technical data:
CPU
High speed bit processing capability of 32-bit superscalar RISC processor
RAM
4 Mbyte (SRAM) or 16 Mbyte (DRAM) with internal or external battery backup capability 4 Mbyte flash EPROM
Environmental conditions
Ambient temperature: 0... 60 ° C protection class: IP 20
Dimensions
239 x 202 x 164 mm (W x H x D) DIN rail mounting
Power supply
120 / 230 V AC 24 V DC, redundant power loss: 30 VA max
Approvals
CSA-UL, CE, NAMUR
Features and advantages of AC800F field controller
High security
In order to achieve safe operation and high availability of plant equipment, AC800F supports all-round redundant working mode. This improves safety and avoids production downtime. Redundancy can be applied to:
*System bus (standard Ethernet solution)
*Controller
*I / O module
*Fieldbus main communication module
*Fieldbus
*Coupling connection equipment
*His communication
High flexibility
The digital communication revolution and automation technology are more outstanding. Nowadays, the field bus technology has been widely accepted by users. It is used to transmit the signals of field equipment and superimpose many necessary equipment diagnosis data. This technology promotes the development of some emerging application fields, such as asset optimization.
The AC800F collects and processes signals and diagnostic data from up to four fieldbuses. If necessary, the AC800F can also support multiple bus types to work at the same time, which is unmatched by traditional controllers. In addition, the AC800F has a compact and modular design, and the common electronic components can be applied to a variety of types of applications. AC800F can be simply installed in the control room or directly used on site.
* PROFIBUS
* Foundation Fieldbus
* MODBUS protocol
* Interbus
* IEC 870-5 telecontrol protocol
*Can bus for connecting I / O modules
*Realize HART protocol through PROFIBUS remote I / O
Freedom 800f I / O (link to IO station s800s900)
Efficient engineering
Unified configuration, debugging and diagnosis – from graphics to field devices – you only need to use one engineering tool. This engineering tool realizes the configuration and configuration of Fieldbus equipment through its unified system database, including:
*Configure and parameterize field devices and remote I / O, via GSD / GSE files or FDT / DTM
*Integrate the diagnosis function of controller and field equipment, and automatically generate equipment alarm and event record on the operator;
*Automatic generation and display of operation interface
*Bus topology and parameter settings, such as transmission rate and address allocation
Control Builder F
Control builder f is an engineering software package for offline and online programming configuration of AC800F and Freeland 2000 controllers.
Control builder f supports IEC 61131-3 programming language standards (FBD, IL, LD, SFC and st). Through these standard programming languages and graphical user interfaces, the creation of applications becomes very easy.
The function block library that has been verified and tested in industry saves the time of program editing and testing. When a function block is configured in the process station, the corresponding control operation panel is also automatically generated in the operator station. Similarly, the application you create will be comprehensively and consistently checked and verified in the global scope of the system.
Control builder f has built-in field device configuration and management functions that support foundation fieldbus, PROFIBUS DP standard and FDT / DTM technology.
