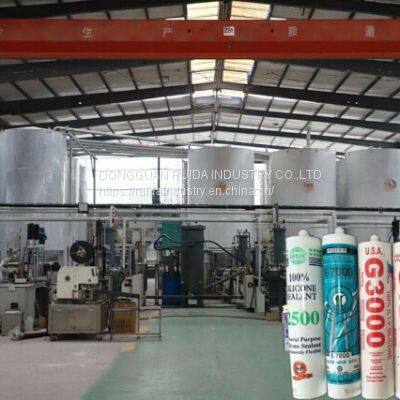

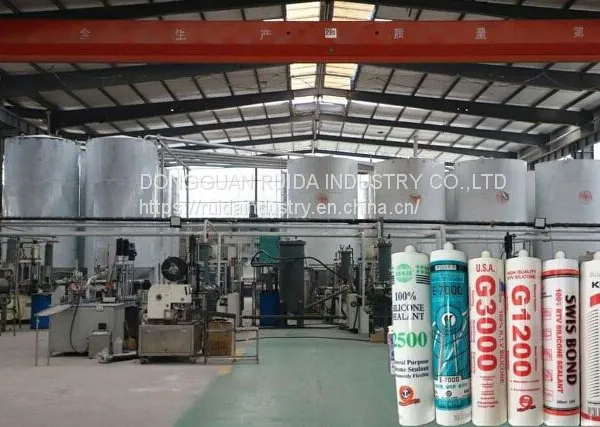

Automatic silicone sealant production line
Our silicone sealant production line easy operate and maintenance.
The clipping system driven by servo-motor with compact structure and reliable transmission.
Capacity:15-25units/min
Parameter of silicone sealant production line:
| Power supply | P3-220/380VAC, 50/60Hz, 8.5Kw |
| Pnuematic | 0.6Mpa |
| Packaging materials | Alum Foil |
| Foil Width | Abt. 160mm |
| Products dimension | Φ46-Φ49 |
| Heating range | 0-300°C |
| Dosing range | 0-700ml |
| Motor Standard | Hydraulic system:5.5Kw |
| Feeding conveyor:5.5Kw | |
| Clipping system:2.7Kw | |
| Hydraulic Pressing standard | 0-25Mpa |
| Capacity | 15-25 /min(600ml) |
| Controlled | PLC |
| Height between input and the ground | 1110mm |
| Input dimension | 3 inch—-Fast connection |
| Weight | Heat sealing system:Abt.320Kg Clipping system:Abt.480Kg |
| Dimension | Heat sealing system:1500mm×700mm×1950mm Clipping system:760mm×750mm×1770mm |

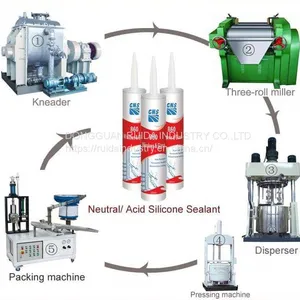

1. Production Process of making silicone sealant:
A. Basic material production system: Put the 103 glue and other material into the dispersion mixer, operating with Heat transfer oil heating system and Vacuum system, mixing about four to five hours.
B. Basic material milling system: After the Basic material production system, use a Pump to transfer the material into the Three-roll milling machine, and get the semi-finished sealant.
C. Silicone sealant making system: Add other raw materials, colors and mix with the semi-finished sealant in the dispersion mixer, and then stir more than one hour to get the finished silicone sealant.
D. Packing system: Using the Hydraulic Discharge Machine to press out the silicone sealant, and then packing by the Semi-rigid Tube Filling Machine.
2. Usage of making silicone sealant:
A. Neutral Silicone Sealant: used for filling and sealing in Metal, glass, mirror, glass window, aluminium products, PMMA, silicone resin, vulcanizing silicone rubber, ceramics, natural and synthetic fiber, concrete, cement, marble, steel, etc.
B. Acid Silicone Sealant: used for filling and sealing in all kinds of interior decoration of car, nameplate, plastic material, pipe joints, glass, glass window, etc.
